Removing the Coin Recycler (Glory RT-375)

To remove the Coin Recycler, follow these steps:

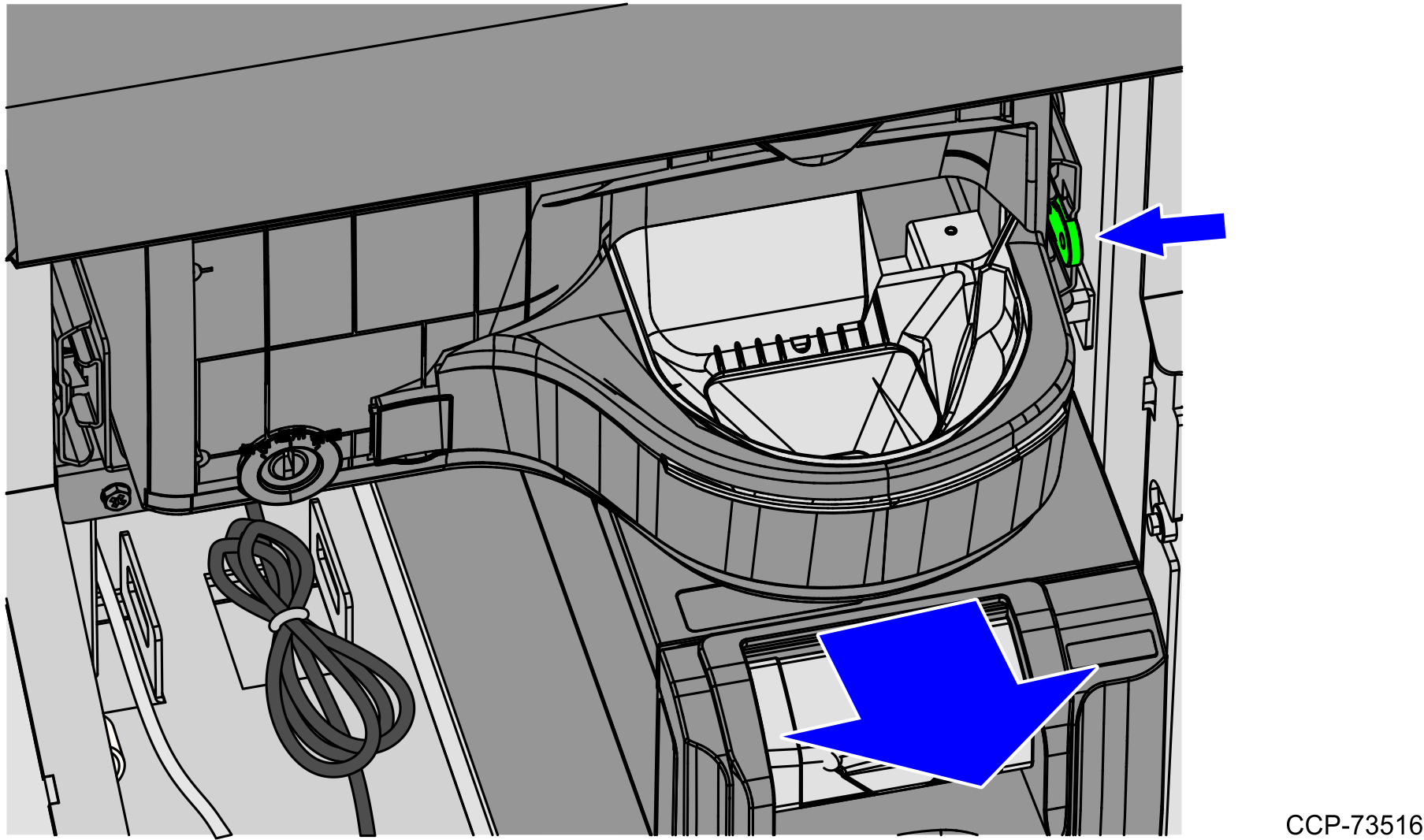

1. Push the green latch toward the Coin Recycler, and then rack out the device from of the cabinet.
   Note

   Use a flat surface with an approximate height of 68 cm and place it up to 22 cm from the edge of the Cabinet.

   Caution

   For safety reasons, NCR recommends placing the Coin Recycler on a flat surface to hold the weight. The Coin Recycler (Glory RT-375) weighs approximately 22 kgs.
