7372-K710 Security Scale (Tabletop)
The Security Scale is composed of a Controller and four (4) Scale Pods underneath the Top Plate. It measures the weight of items purchased and bagged. The weight detected is compared to the weight expected as defined in the item’s data file. This publication provides procedures for installing the 7372-K710 Security Scale (Tabletop) to a 7372 NCR Voyix SCO Tabletop unit.

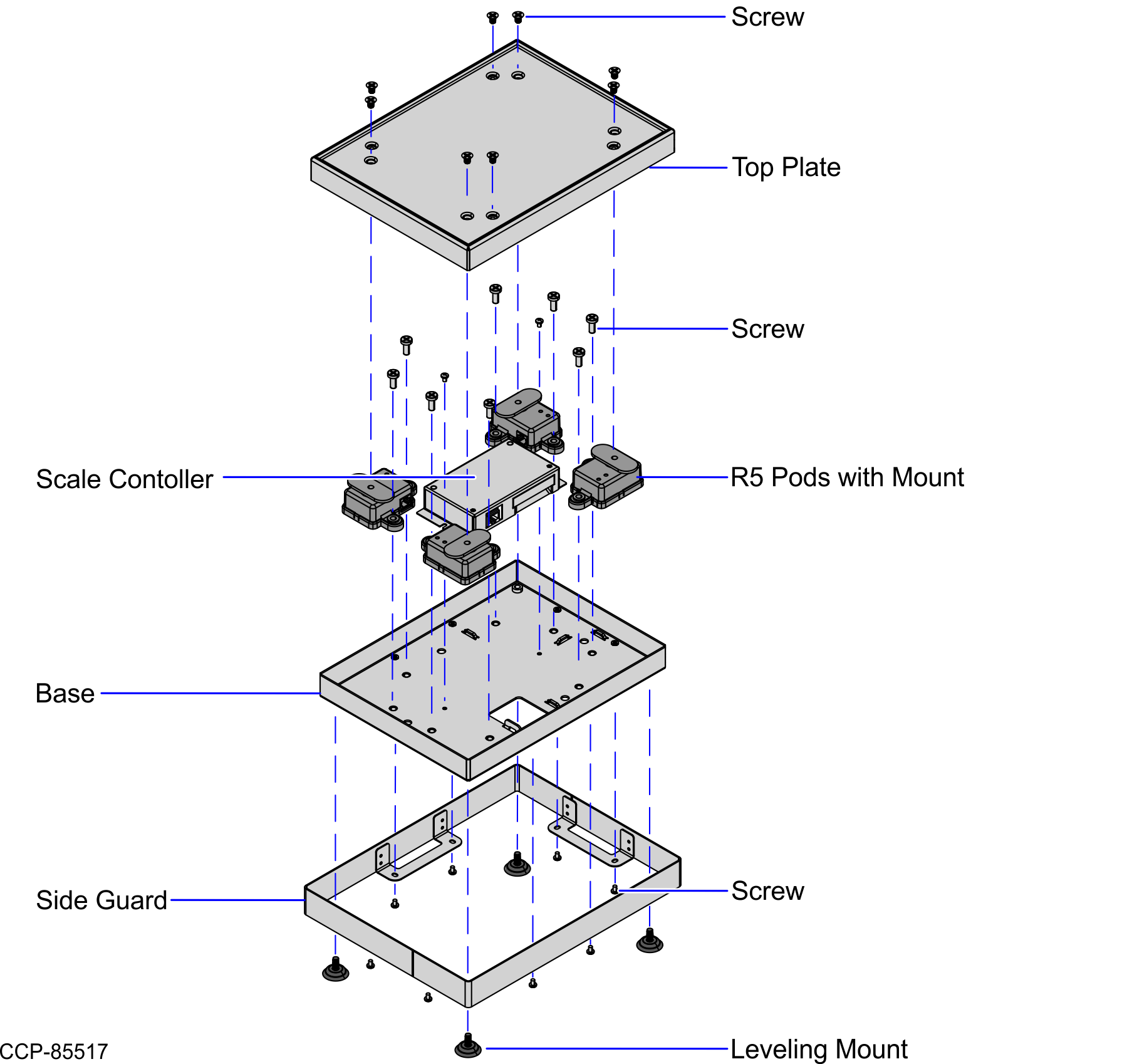

Kit Contents
| Part Number | Description |
|---|---|
| 497-0537108 | 7372-K710 Security Scale, Nextgen Tabletop |
| 006-8611466 | Screw - M4 X 0.7P X 6 Mm, Machine, Phillips Panhead (10 pcs) |
| 006-8615815 | Screw -1/4-20 X 5/8" Phillips Pan Head Machine Screw, Zinc-Pltd Stl (8 pcs) |
| 006-8624799 | Screw, 1/4-20, 3/8" Length, Cs, Ss (8 pcs) |
| 006-8624919 | Leveling Mount, High Temp, 1/4-20, 1-1/8 Base Diameter, 1/2 (4 pcs) |
| 497-0468420 | Assembly - NCR Scale Controller |
| * 497-0509822 | Cable, Scale Pod To Scale Controller Board, 500Mm (4 pcs) |
| 497-0509864 | Base, Scale, 7709 |
| 497-0509870 | Top Plate, Scale, 7709 |
| 497-0509871 | Side Guard, Scale, 7709 |
| 497-0514037 | R 5 Pods With 50 Durometer Mount, Polyimide Strain Gauge Backing (4 pcs) |
| * 497-0531544 | Cable-Latch-N-Lok 2X4 Plug To Split Db9/Usb-A(3.5M) |
| * 497-0538320 | Nextgen Sco R1.1 Tabletop Security Scale Kit Manufacturing Build Instructions |
* Items marked with an asterisk are not called out on the image.
