7372-K501 Input Shelf (Small)
This publication provides instructions for installing the 7372-K501 Input Shelf (Small) kit on either of the following 7372 NCR Voyix SCO configurations:
- 7372 NCR Voyix SCO Card Only
- 7372 NCR Voyix SCO Kiosk
Note
The maximum load capacity for the 7372-K501 Input Shelf (Small) is 150 lbs.
Kit Contents
| Part Number | Description |
|---|---|

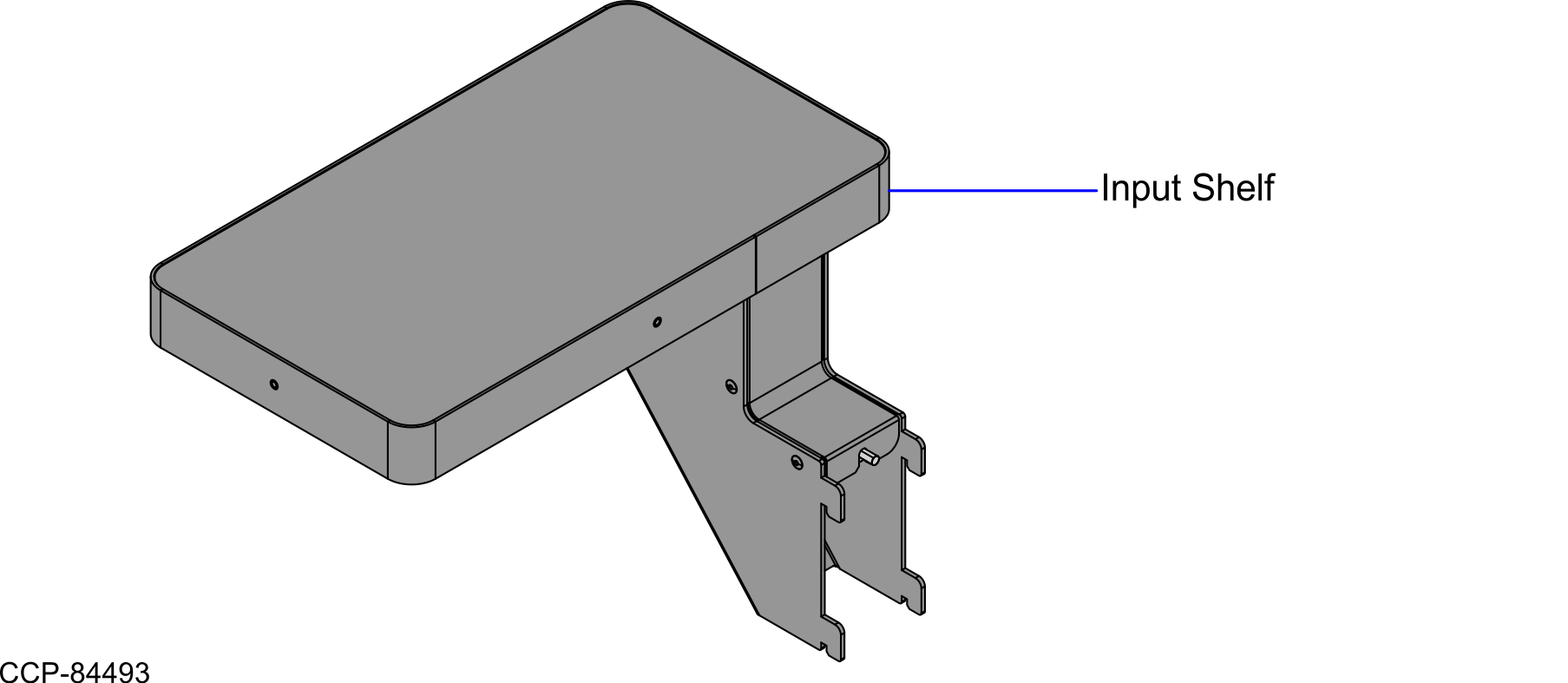

| 497-0536298 | 7372-K501 Input Shelf (Small) |
| * 006-8624547 | Screw M6 Size, 12Mm Length, 1Mm Pitch Flat Head Phillips Thread Locking Patch (6 pcs) |
| * 006-8628739 | Screw Hex M6 X 12 Mc Comb |
| * 006-8628727 | Serrated Nut - Self Locking (M4, 4.2) (9 pcs) |
| 497-0535843 | Gusset, Input, Card Only |
| 497-0535550 | Input Shelf - Top Plate |
| 497-0535551 | Input Shelf - Lower Bracket |
| 497-0535552 | Input Shelf - Bracket Support |
* Items marked with an asterisk are not called out on the image.
