7372-K346 Sidecar Coupon Bin (Tabletop)
The Coupon Bin is the repository of coupons that consumers have scanned before continuing their transactions. This publication provides procedures for installing the 7372-K346 Sidecar Coupon Bin (Tabletop) to the 7372 NCR Voyix SCO Tabletop unit.
Kit Contents
Note

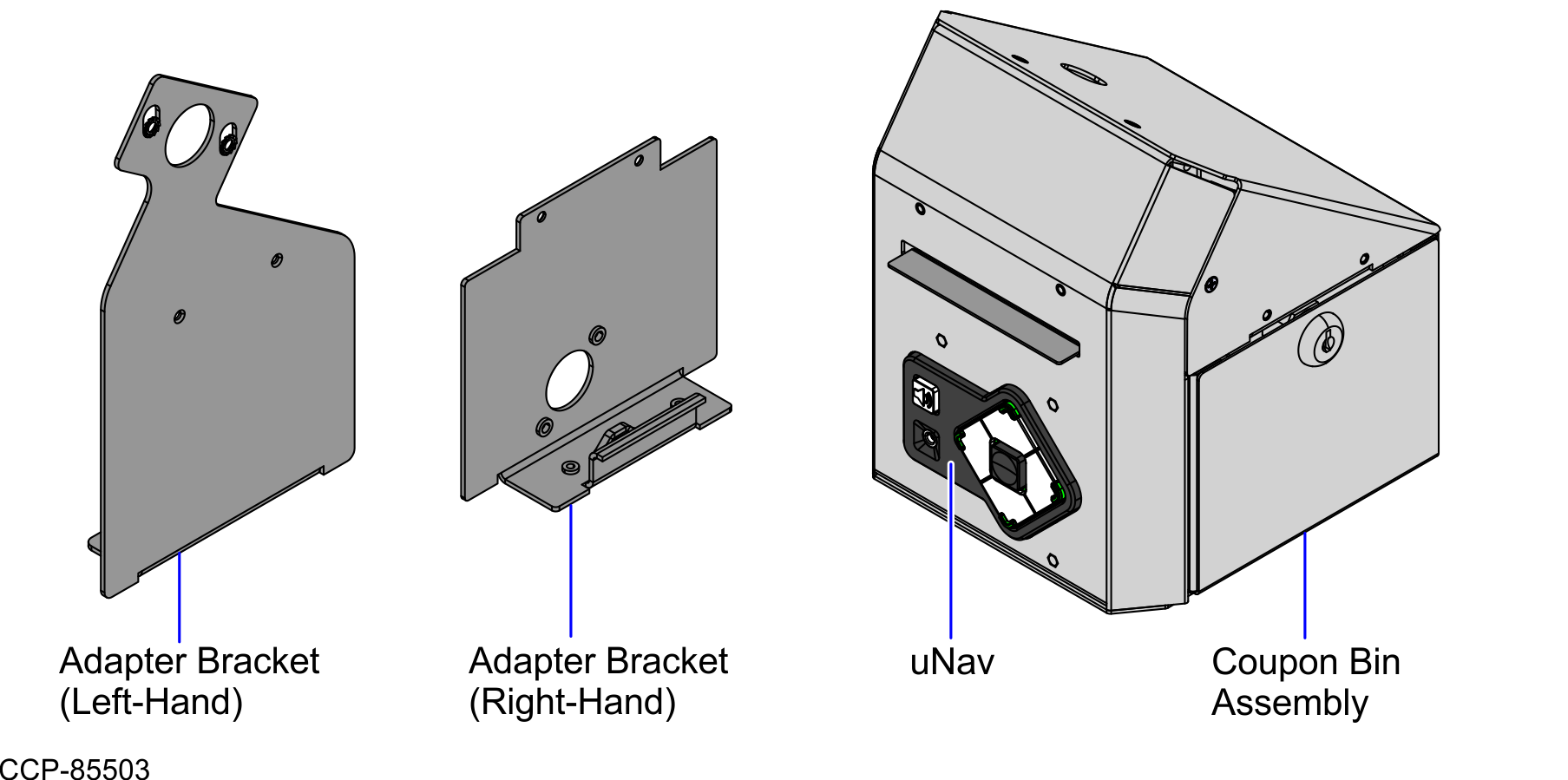

By default, the uNav device, Coupon Sensor, and Coupon Bin are installed in the Coupon Bin assembly. The Coupon Bin is installed for Right-hand (RH) orientation.
| Part Number | Description |
|---|---|
| 497-0538278 | |
| 497-0538482 | Coupon Bin Front Panel |
| 497-0538483 | Coupon Bin Rear Enclosure |
| 497-0538110 | Coupon Bin |
| 497-0538570 | Coupon Bin Right Hand Adapter Bracket |
| 497-0538579 | Coupon Bin Left Hand Adapter Bracket |
| * 497-0538113 | Coupon Bin Lower Coupon Sensor Bracket |
| * 497-0538117 | Coupon Bin Upper Coupon Sensor Bracket |
| * 006-8617798 | Screw, M3 X 8mm, Machine, Phillips Drive, Flat Head, Black Finish (10 pcs) |
| * 006-8624383 | Key Lock, 7/8'' Length, Keyed Ek333 |
| * 006-8624580 | Nut-M3X0.5,5.5mm Wide X 1.8mm High, Zinc Plated Class 04 (2 pcs) |
| * 006-8628723 | Screw M4 X 10 M/C Combi Pozi (2 pcs) |
| * 006-8628727 | Serrated Nut - Self Locking (M4, 4.2) (6 pcs) |
| * 006-8628729 | Tie Strap Plain 5.60Lg |
| * 497-0538328 | Double Layer Braille Label |
| * 497-0504538 | Bracket - Coupon Sensor (2 pcs) |
| * 497-0504539 | Spacer - Coupon Sensor (2 pcs) |
| 497-0519778 | Unav Device |
| * 497-0525656 | Cable - I/O Coupon Sensor 991mm |
| * 497-0534004 | External Label Set, English Text |
| * 006-8628970 | M6 Stainless Steel External Tooth Nut Washer (2 pcs) |
| * 497-0532494 | Dt Std Unav Blank |
| * 006-8624631 | Cable Assembly USB A To Mini B Right Angled, 1M |
| * 497-0534350 | Hole Cover Label, 7372 Bagwell |
| * 006-8628760 | ScrewsM3 X 12-Rohs (3 pcs) |
| * 006-8628739 | Screw Hex M6 X 12 Mc Comb (2 pcs) |
* Items marked with an asterisk are not called out on the image.
