7372-K344 Base, uNav, and Coupon (Tabletop)
This publication provides procedures for installing the 7372-K344 Base, uNav, and Coupon (Tabletop) to the NCR Voyix SCO Tabletop unit.
Kit Contents
| Part Number | Description |
|---|---|
| 497‑0536030 | 7372-K344 Base, uNav, and Coupon (Tabletop) |
| 497-0534258 | Weldment, Base, Desktop |
| 497-0535722 | Front Cover, Unav And Coupon, Table Top |
| 497-0534345 | Chute, Coupon, Desktop |
| 006-8628727 | Serrated Nut - Self Locking (M4, 4.2) (4 pcs) |
| 497-0534167 | Cable Assy - Breakout Connector To Coupon Sensor (410 mm) |
| 497-0534352 | Bracket - Top, Coupon Sensor, Desktop |
| 497-0534353 | Bracket - Bottom, Coupon Sensor, Desktop |
| 497-0519778 | uNav Device |
| 497-0532494 | No uNav Feature |
| 006-8628760 | ScrewsM3 X 12-Rohs (3 pcs) |
| 006-8627026 | Nut - M5 Serrated Flange, Hex (2 pcs) |
| 006-8628739 | Screw Hex M6 X 12 Mc Comb (4 pcs) |
| * 497-0534702 | Cable - R6 Io To Coupon Sensor Breakout Connector (1.3M) |
| 497-0535724 | Blank - Coupon, Table Top |
| 006-8627931 | Hole Plug, 1.000", Black |
| * 006-8624631 | Cable Assembly ? Usb A To Mini B Right Angled, 1M |
| * 497-0533048 | Label, Insert Headphones Braille, 7371 |
| * 006-8615143 | Cable Tie, 142Mm X 3.6Mm (2 pcs) |

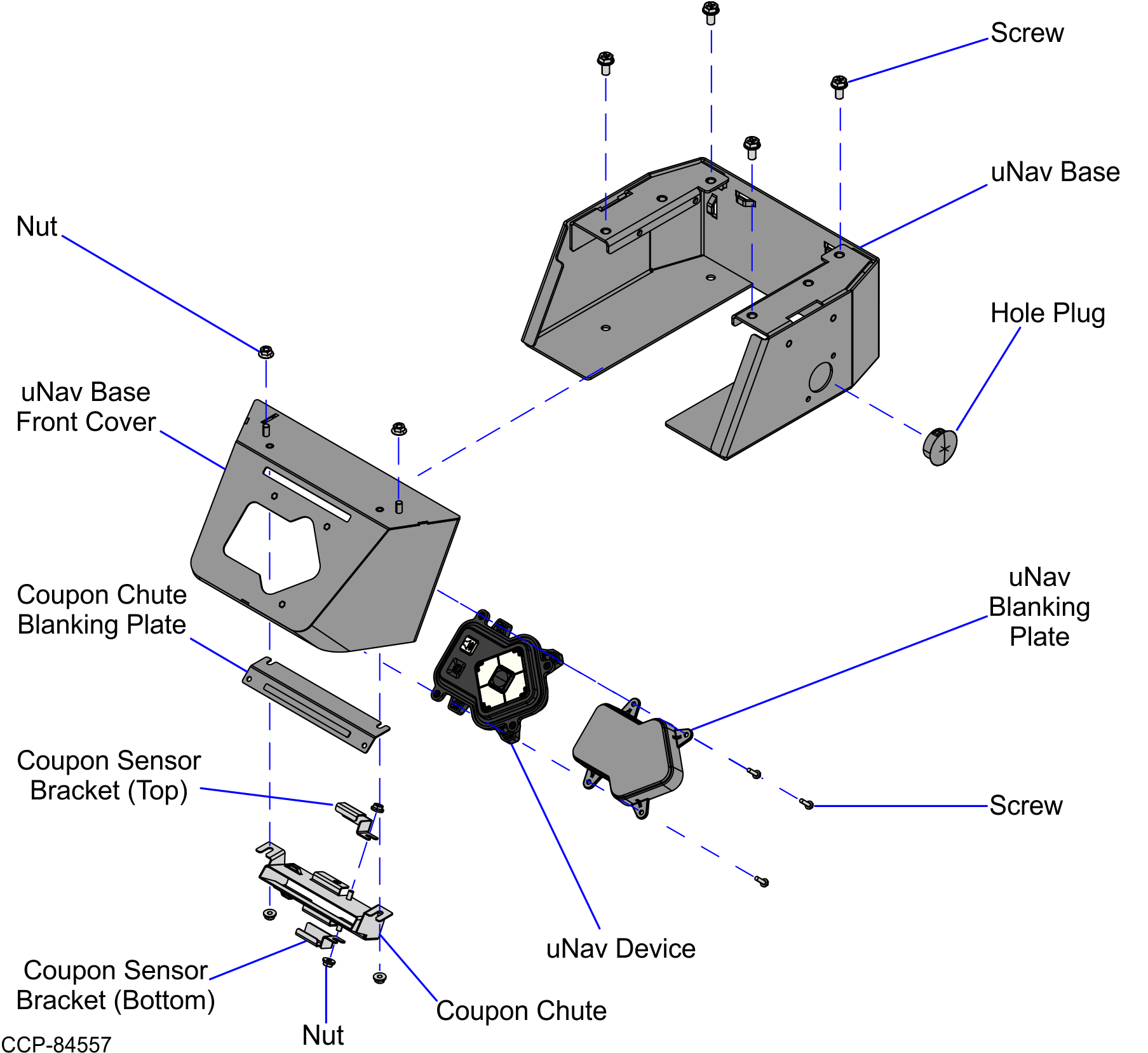

* Items marked with an asterisk are not called out on the image.
