7372-K310 Lower Cabinet Shrink Barrier

This publication provides procedures for the 7372-K310 Lower Cabinet Shrink Barrier to the 7372 NCR Voyix SCO Card Only unit.

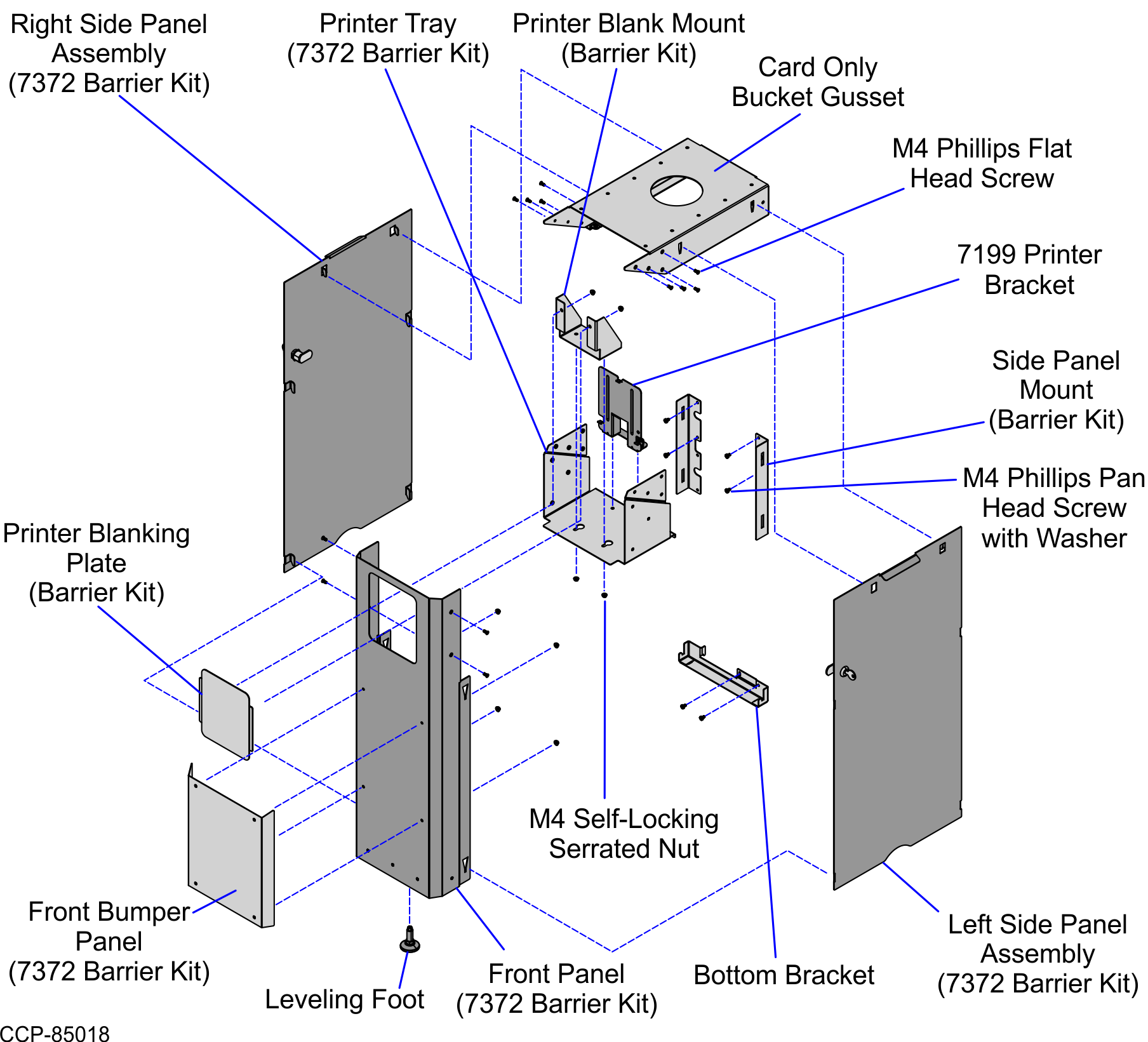

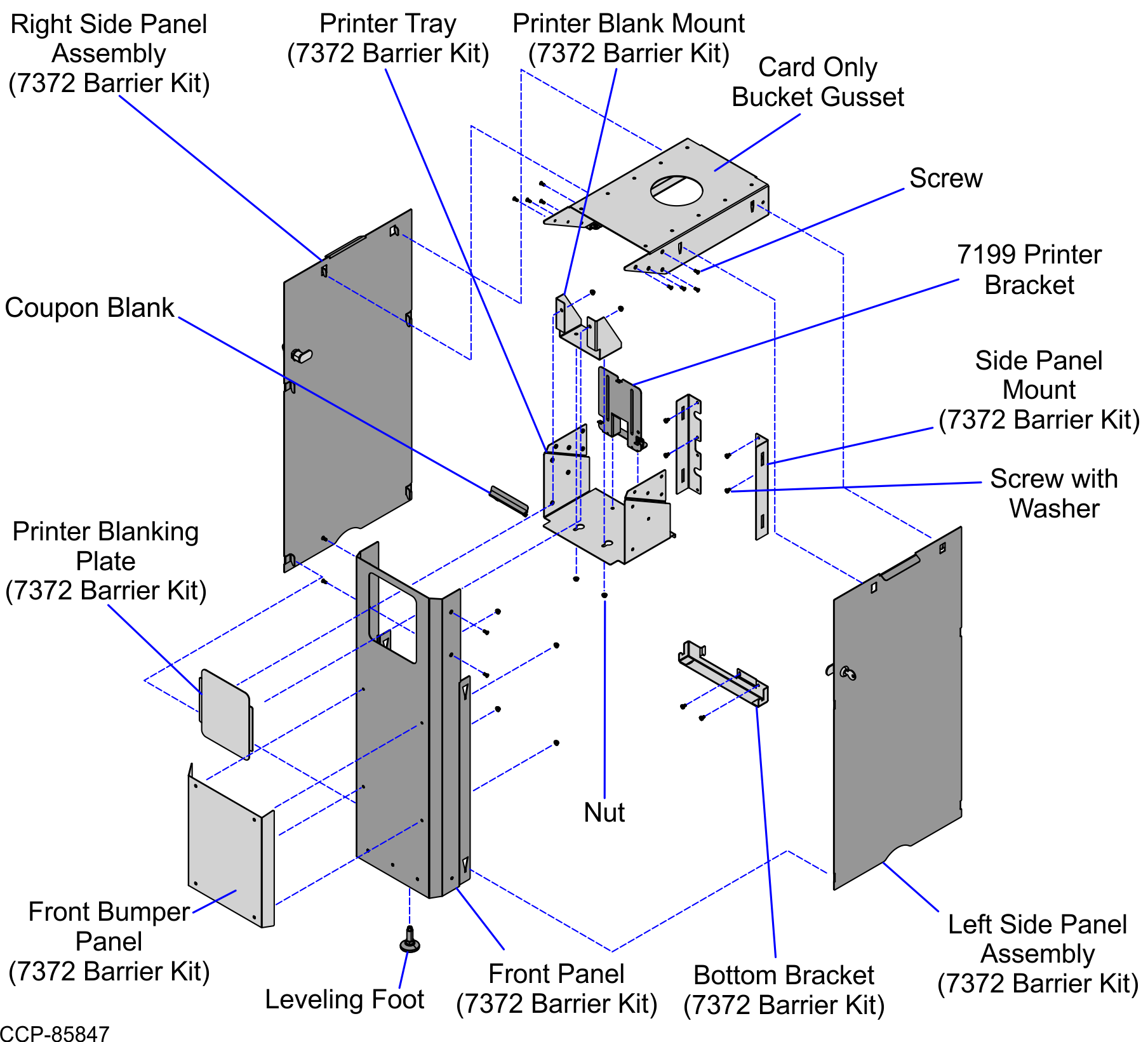

Kit Contents

Part NumberDescription
497-05374997372-K310 Lower Cabinet Shrink Barrier
006-8622623Screw, M4 X 10, Flat Head, Phillips, Black Oxide (12 pcs)
006-8627600Screw – M4X8, Phillips Cross Recessed Pan Head Machine Screw With External Tooth Lock Washer Black Zinc (6 Pcs)
006-8628594Leveling Foot
006-8628727Serrated Nut - Self Locking (M4, 4.2) (8 pcs)
497-05316917199 Printer Bracket
497-0538839Printer Tray - 7372 Barrier Kit
497-0538610Front Panel - 7372 Barrier Kit
497-0537502Front Bumper Panel - 7372 Barrier Kit
497-0538618Assembly, Right Side Panel - Barrier Kit
497-0538605Card Only Bucket Gusset
497-0538615Side Panel Mount - Barrier Kit (2 pcs)
497-0538840Printer Blank - Barrier Kit
497-0538606Bottom Bracket - 7372 Barrier Kit
497-0538619Assembly, Left Side Panel - Barrier Kit
497-0538829Printer Blank Mount - Barrier Kit
497-0533449Coupon Blank
