7372-K091 21.5” Display Bracket (Kiosk)
The 7372-K091 21.5" Display Bracket (Kiosk) allows the installation of the Terminal Display in landscape orientation or portrait orientation. This publication provides procedures for installing this kit to the 7372 NCR Voyix SCO Kiosk unit.

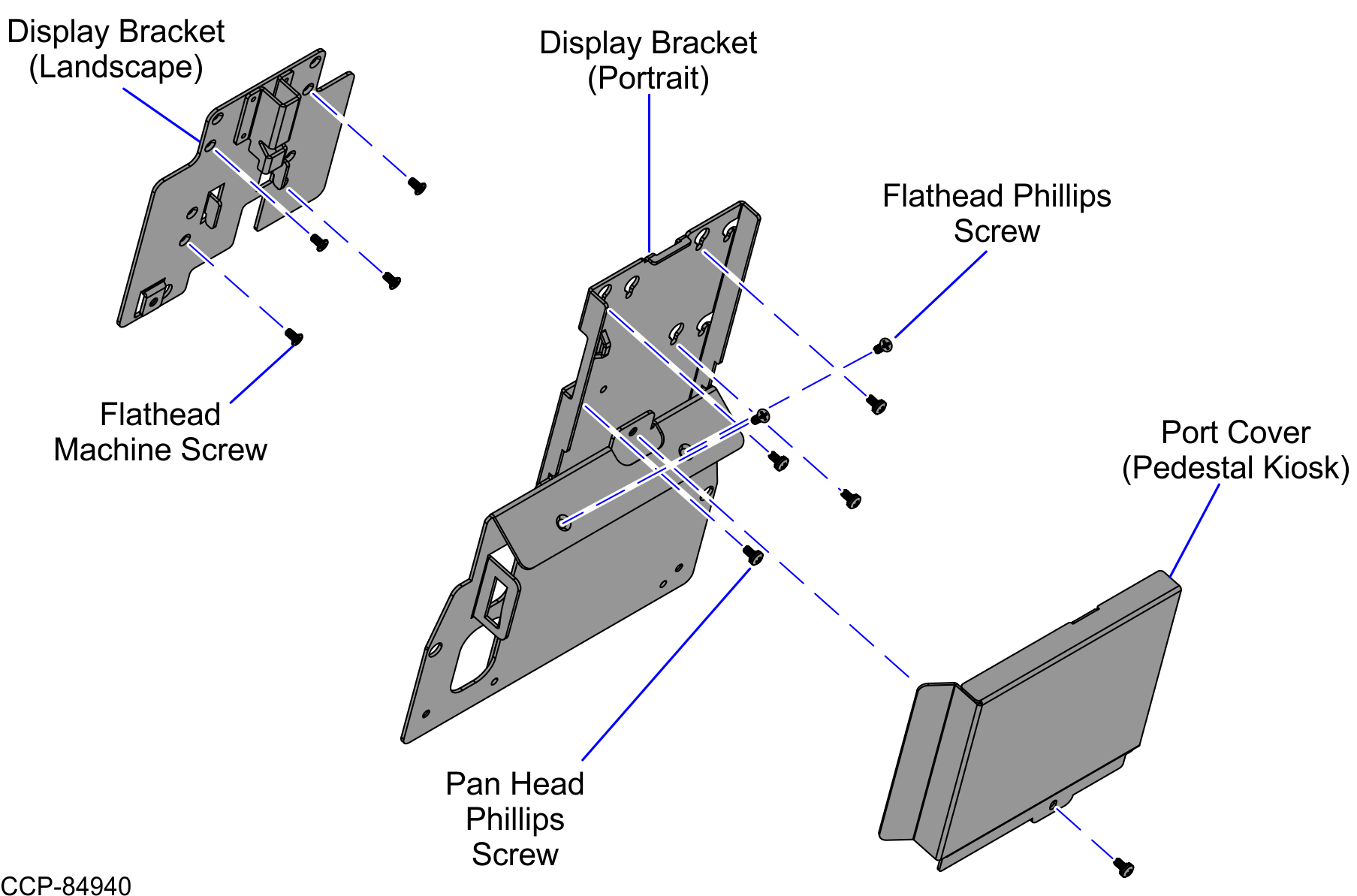

Kit Contents
| Part Number | Description |
|---|---|
| 497-0537509 | 7372-K091 21.5” Display Bracket Kiosk Pedestal |
| 006-8622623 | Screw, M4 X 10, Flat Head, Phillips, Black Oxide (2 Pcs) |
| 006-8622885 | Screw, M4-0.7 X 8Mm Flt Hd, Machine, Knurled Head, Steel, Black Oxide (4 Pcs) |
| 006-8627600 | Screw – M4X8, Phillips Cross Recessed Pan Head Machine Screw With External Tooth Lock Washer Black Zinc (5 Pcs) |
| 497-0537002 | 21.5 " Display Bracket - Landscape |
| 497-0537713 | Display Bracket - Portrait |
| 497-0537715 | Port Cover - Pedestal Kiosk |
* Items marked with an asterisk are not called out on the image.
