7372-K090 21.5” Display Bracket (Tabletop)
The 7372-K090 21.5" Display Bracket (Tabletop) allows the installation of the Terminal Display in landscape orientation or portrait orientation. This publication provides procedures for installing this kit to the 7372 NCR Voyix SCO Tabletop unit.

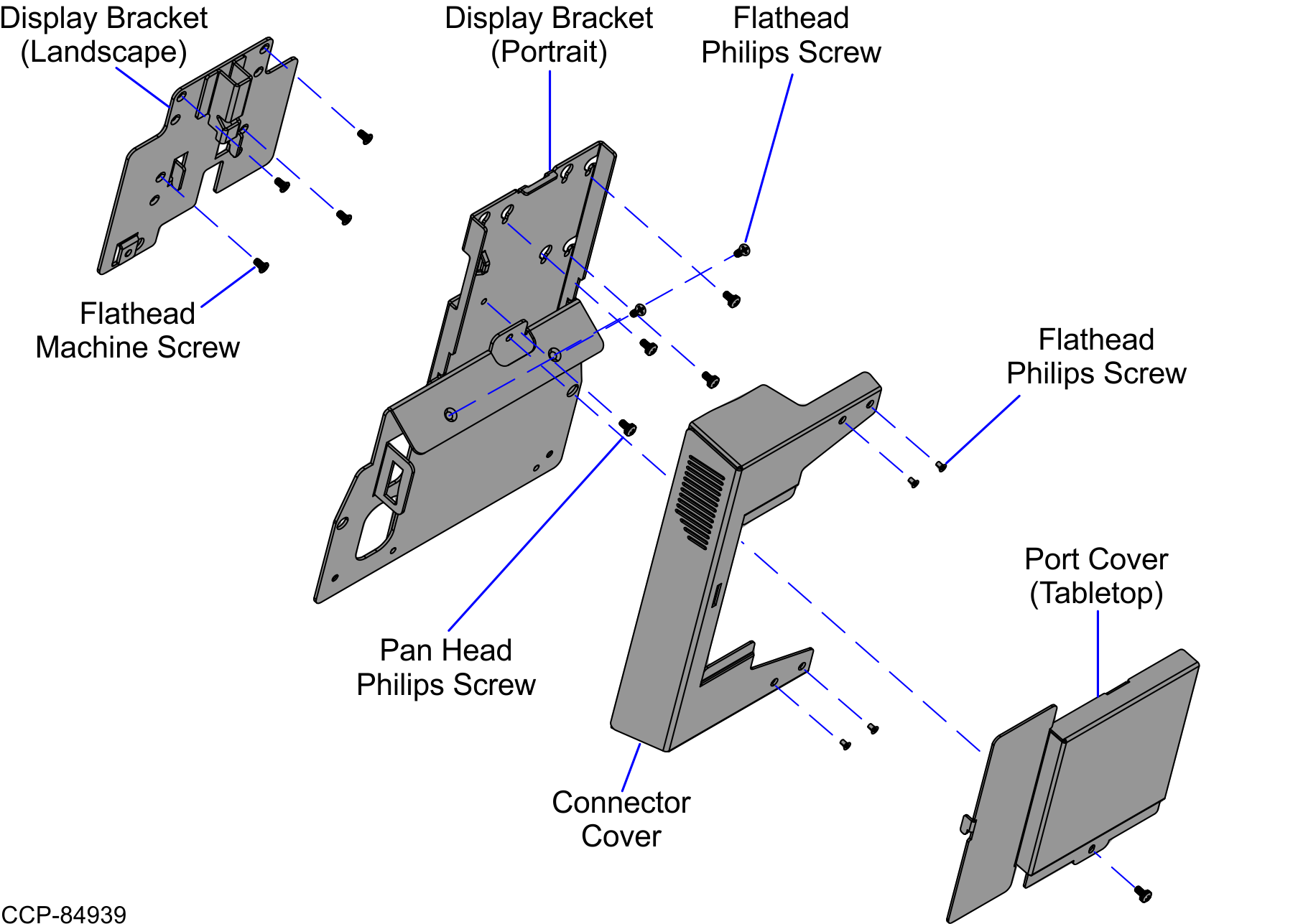

Kit Contents
| Part Number | Description |
|---|---|
| 497-0537721 | 7372-K090 21.5" Display Bracket Tabletop |
| 006-8622623 | Screw, M4 X 10, Flat Head, Phillips, Black Oxide (2 Pcs) |
| 006-8622885 | Screw, M4-0.7 X 8Mm Flt Hd, Machine, Knurled Head, Steel, Black Oxide (4 Pcs) |
| 006-8626235 | Screw, M3 X 5, Steel, Flat Head, Phillips, Black Oxide (4 Pcs) |
| 006-8627600 | Screw – M4X8, Phillips Cross Recessed Pan Head Machine Screw With External Tooth Lock Washer Black Zinc (5 Pcs) |
| 497-0537002 | 21.5 " Display Bracket - Landscape |
| 497-0537674 | Connector Cover |
| 497-0537713 | Display Bracket - Portrait |
| 497-0537714 | Port Cover - Tabletop |
* Items marked with an asterisk are not called out on the image.
