7372-K062 Power Supply Bracket for Secondary Display (XL15)
The Power Supply Bracket holds the 40 W Power Supply used for the Secondary Display (XL15). This publication provides instructions for installing the Power Supply Bracket on the Common Product Name unit.
Note
The 40 W Power Supply and power cables are not included in the kit.

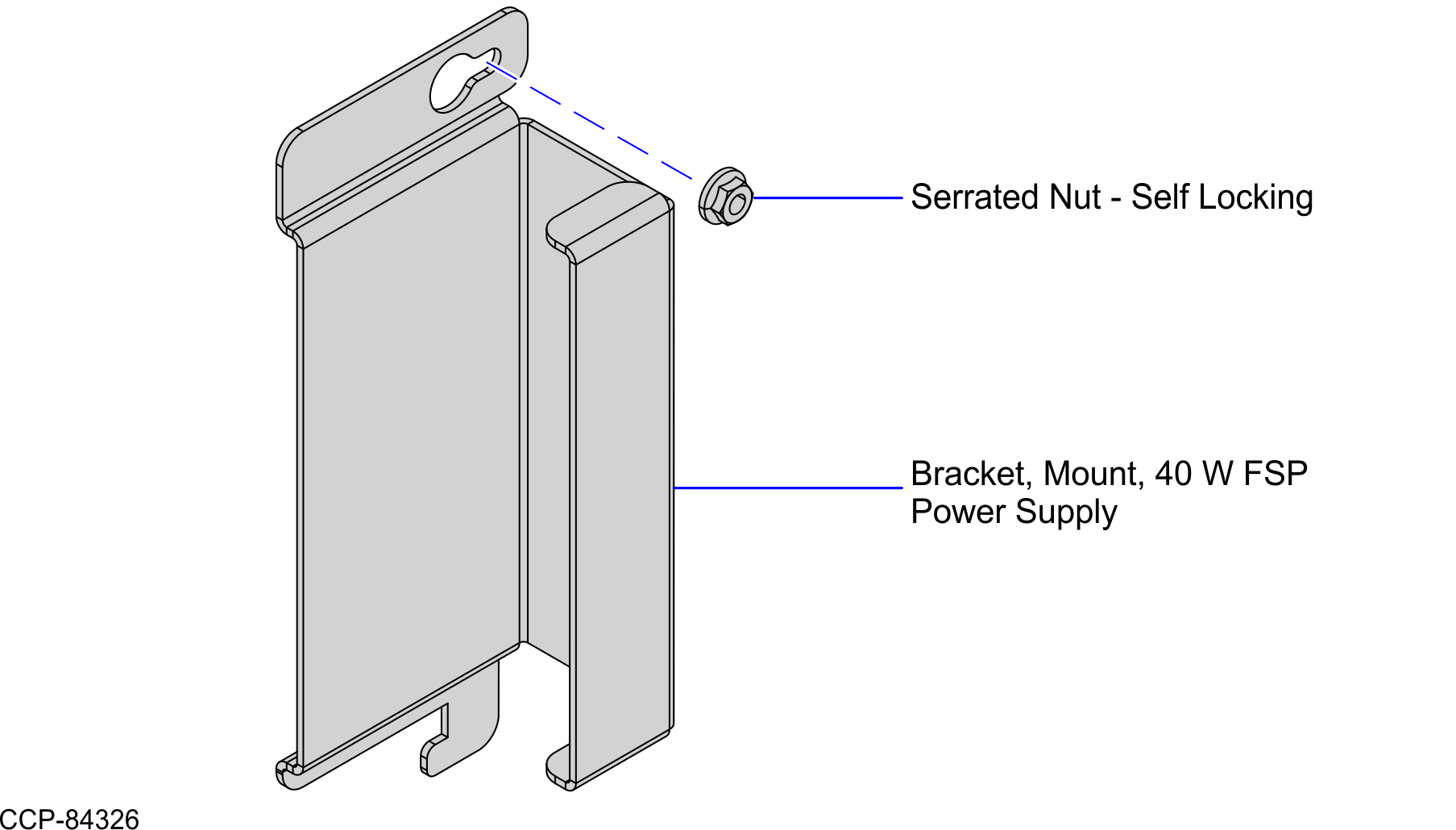

Kit Contents
| Part Number | Description |
|---|---|
| 497-0535629 | 7372-K062 Power Supply Bracket, Secondary Display (XL15) |
| 497-0535807 | Bracket, Mount, 40 W FSP Power Supply |
| 006-8628727 | Serrated Nut - Self Locking (M4, 4.2) |
| * 497-0423108 | Instructions-Kit (Reference Sheet) |
* Items marked with an asterisk are not called out on the image.
