7372-K009 Tabletop Turntable Adapter Plate

The Tabletop Turntable Adapter Plate kit is used to install a 7372 SCO Tabletop unit on a 7709 turntable. This publication provides procedures for installing the Adapter Plate on the 7709 turntable with either of the following 7372 Tabletop configurations:

  • 7372 Tabletop unit with uNAV Base
  • 7372 Tabletop unit without uNAV Base

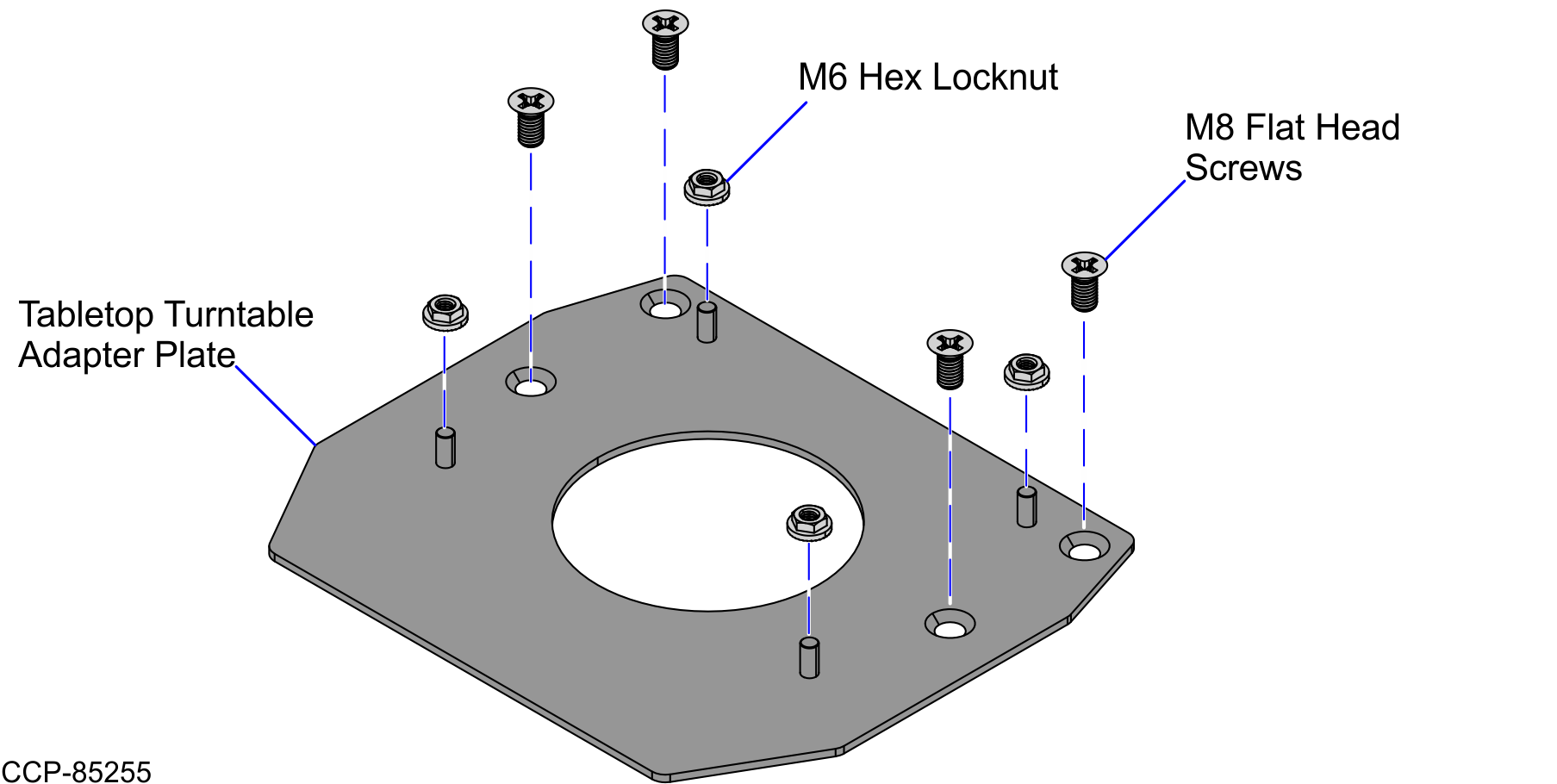

Kit Contents

Part NumberDescription
497-05376047372-K009 Kit - Tabletop Turntable Adapter Plate
497-0537602Adapter - Plate, Tabletop Turntable
006-8622925Locknut - Hex, Serrated, M6 (4 pcs)
006-8627440Screw, M8 x 1.25 16 mm, Flat Head, Phillips, Zinc Plated (4pcs)

* Items marked with an asterisk are not called out on the image.
