Verifying the Checkpoint® Controller DIP Switch Settings

To verify the Checkpoint® Controller DIP Switch Settings, follow these steps:

1. Install the Controller. For more information, refer to Installing the Checkpoint® Controller: No-Bag Configuration.

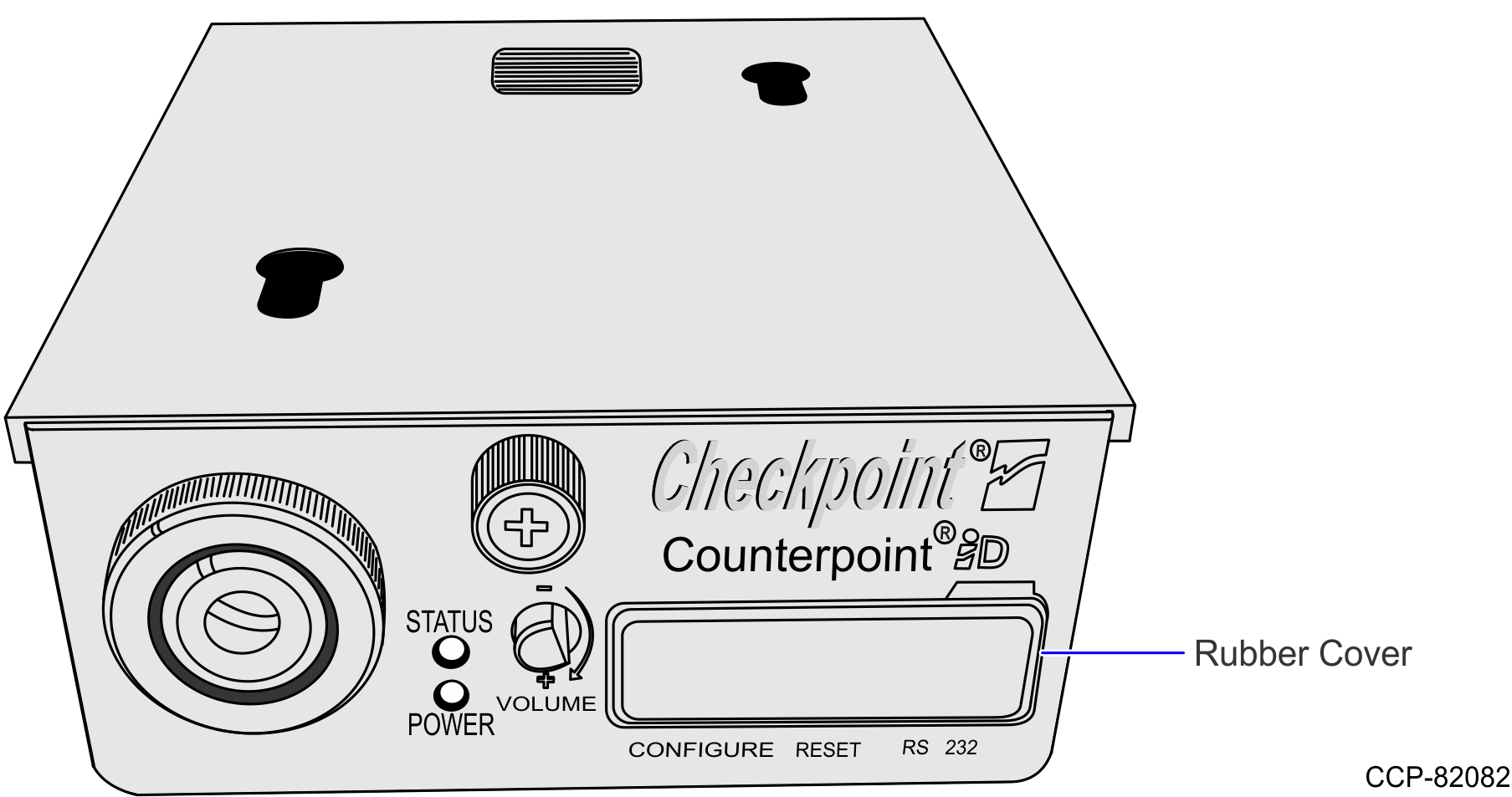

2. From the Checkpoint® Controller, remove the Rubber Cover to access the DIP Switches.

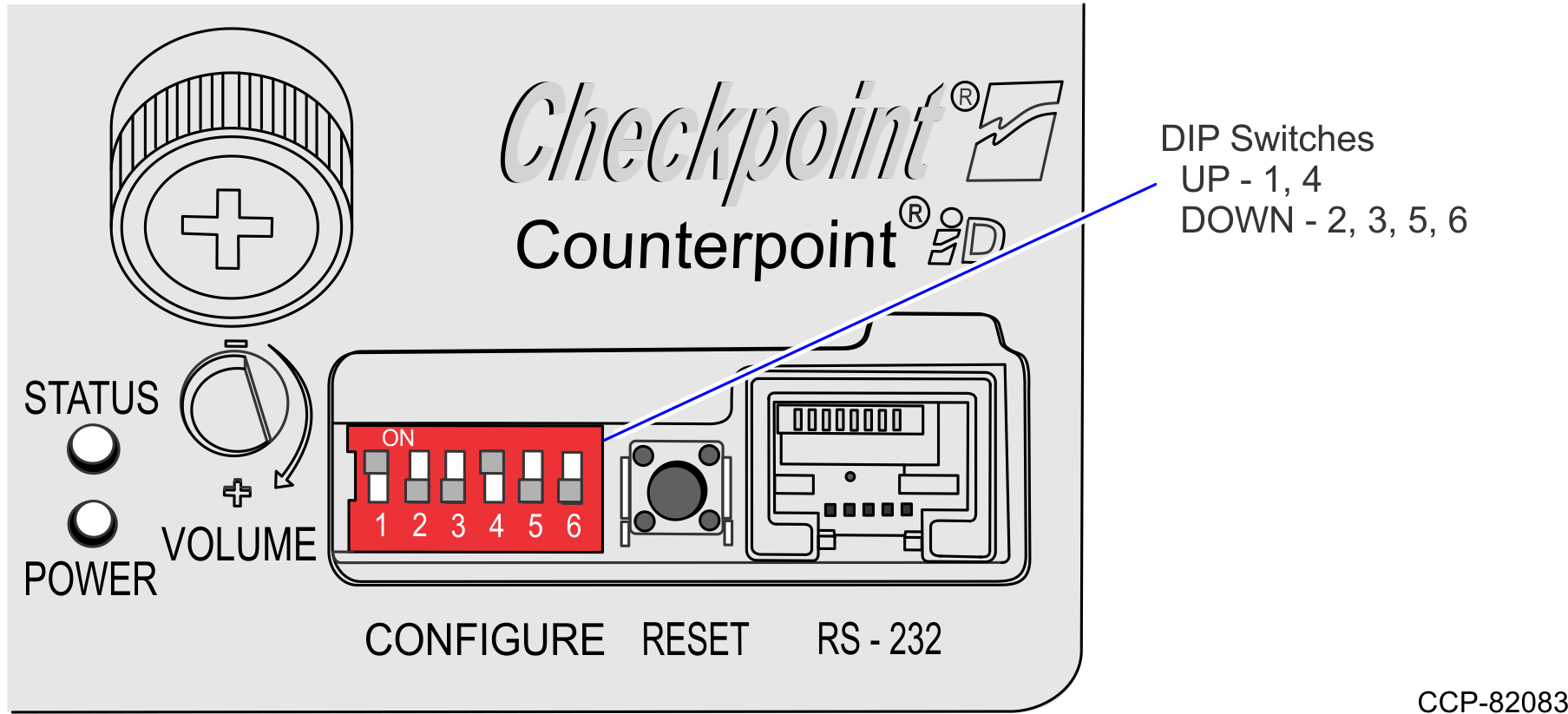

3. Verify that the DIP Switches are set, as shown in the image below.
   Note

   Settings of the DIP Switches vary depending on the type of security label to be deactivated.



4. Tune the antenna. For more information, refer to Tuning the Checkpoint® Antenna.
   Note

   This step requires power and is performed later in the system installation process. Ensure that the antenna is tuned before using the Checkpoint® system.
