Removing the Rear Cosmetic Cover

To remove the Rear Cosmetic Cover, follow these steps:

1. Remove the Terminal Display. For more information, refer to Removing the Terminal Display.

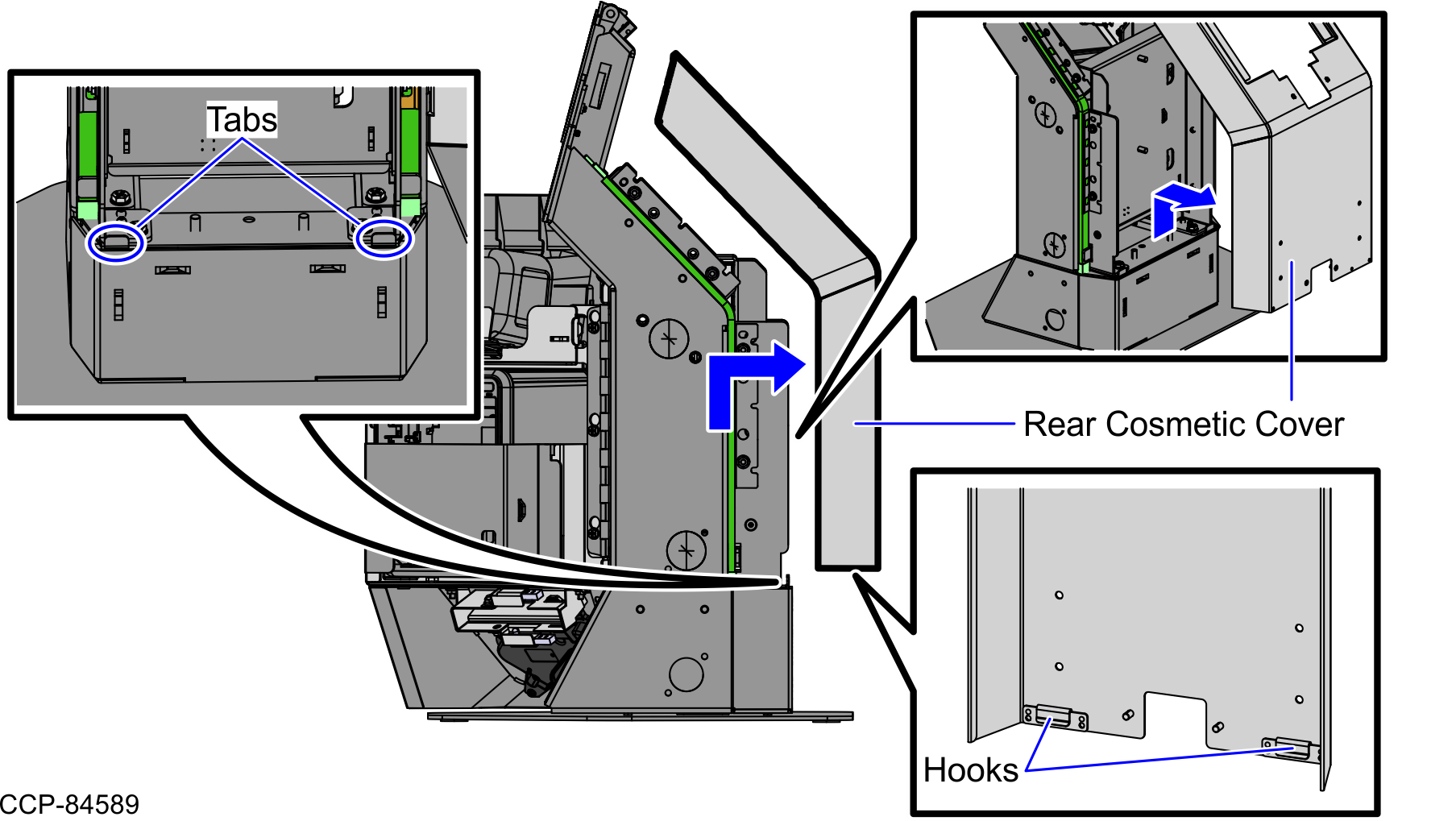

2. Remove two (2) screws to detach the Rear Cosmetic Cover from the Tower Frame.



3. Detach the Rear Cosmetic Cover from the Tower Frame by disengaging two (2) hooks from the Tower Frame tabs.
