7371-K902 Remote Scale Display Mount
The Remote Scale Display Mount holds the Remote Scale Display in place. Depending on the Scanner/Scale configured on the Self-Checkout unit, the mount can hold either of the following Remote Scale Display:
- Flag 7879 Scale Display
- 7895 Scale Display
Note
The Scale Display is supplied by the customer.
This publication provides procedures for installing the Remote Scale Display Mount on either of the following Self-Checkout units:
- NCR Voyix SCO Hardware (7371) Full Function (Fixed)
- NCR Voyix SCO Hardware (7371) Full Function (Hybrid)
- NCR Self-Checkout Hardware - Card Only Self-Checkout (7372)

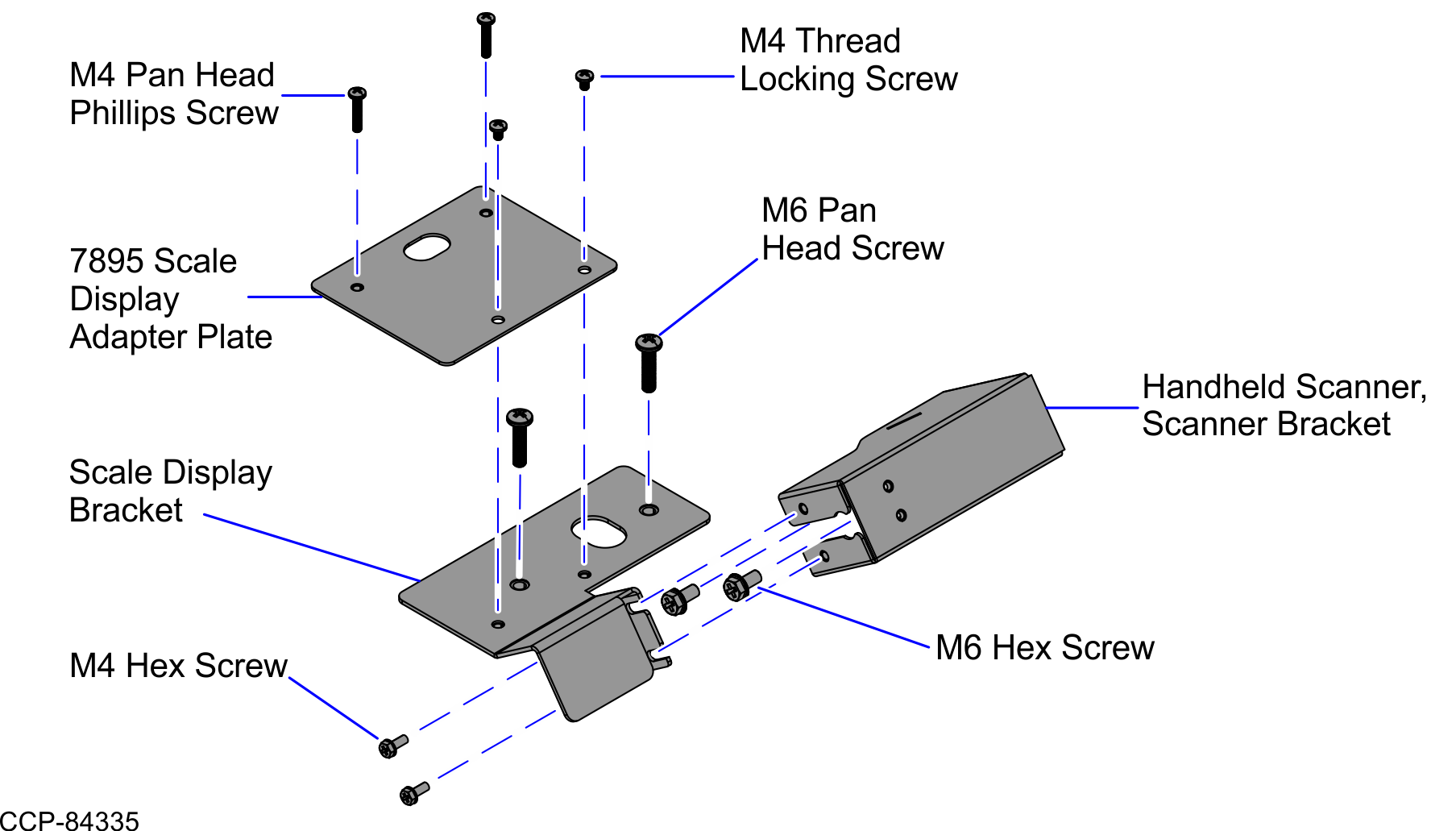

Kit Contents
| Part Number | Description |
|---|---|
| 497-0536682 | 7371-K902 Remote Scale Display Mount |
| 497-0533821 | 7371-K902 Support Bracket, Scanner, Handheld |
| 006-8628739 | Screw Hex M6 x I2 MC COMB (2 pcs) |
| 497-0535337 | Bracket - Scale Display |
| 006-8628723 | Screw M4 x I0 M/C COMBI POZI (2 pcs) |
| 497-0535338 | Adapter Plate - Scale Display, 7895 |
| 006-8628488 | Screw, M4 x 0.7 x 6 mm, Thread-locking, PH, Phillips Head (2 pcs) |
| 006-8622923 | Screw, M4 x 20 mm, Pan head Phillips, SS Machine (2 pcs) |
| 006-8624916 | Screw, M6 x 25 mm Pan head Zinc-Plated (2 pcs) |
| *497-0423108 | Instructions Kit (Reference Sheet) |
* Items marked with an asterisk are not called out on the image.
