7371-K802 Handheld Scanner Mount
This publication provides procedures for installing a Handheld Scanner Mount on either of the following 7371 SCO Full Function units:
- NCR Voyix SCO Hardware (7371)
- NCR Voyix Self-Checkout Hardware - Card Only Self-Checkout (7372)

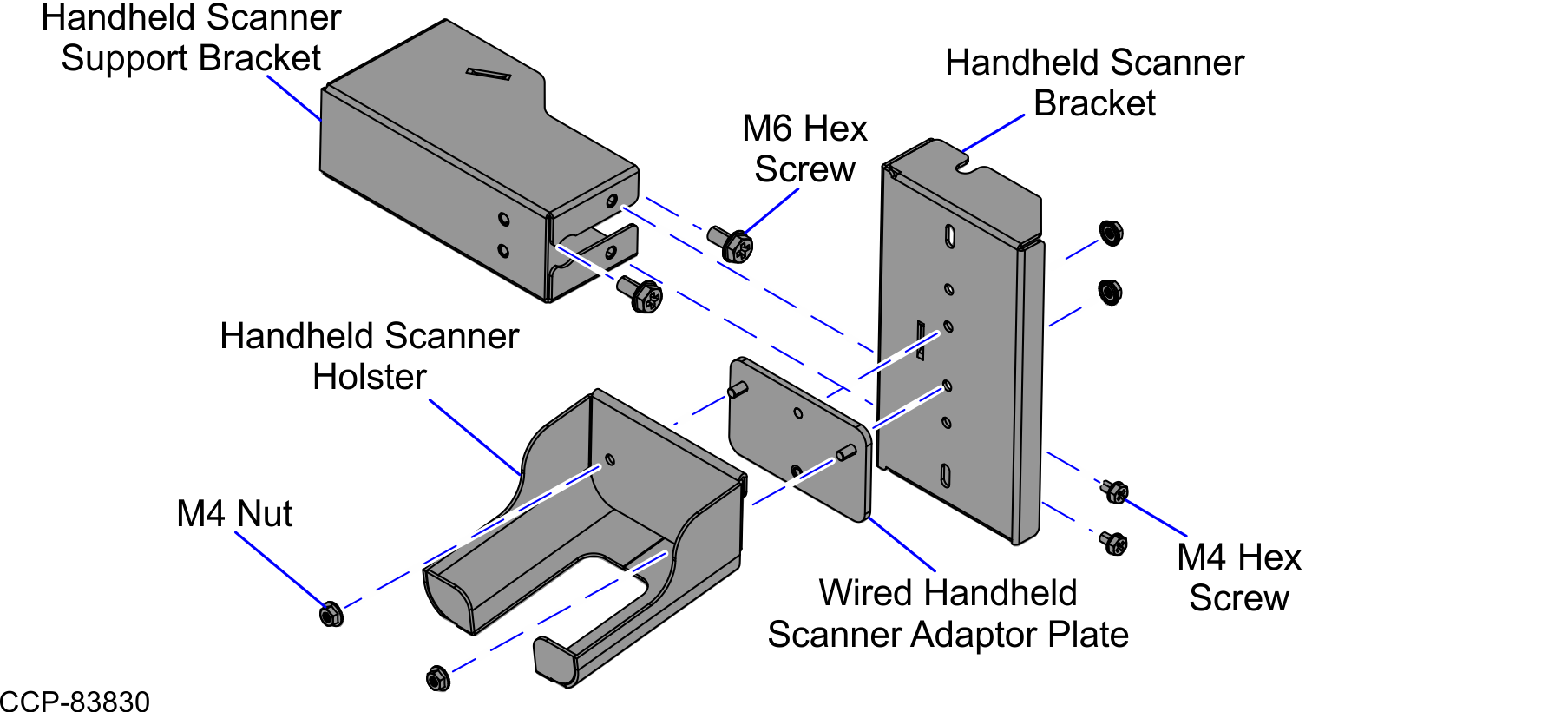

Kit Contents
| Part Number | Description |
|---|---|
| 497-0535014 | 7371-K802 Kit - Wired Handheld Scanner Mount |
| 497-0532521 | Bracket, Scanner, Handheld |
| 497-0534330 | Wired Handheld Scanner Adaptor Plate |
| 497-0519026 | Holster, Scanner, Handheld |
| 006-8628648 | Nut - M4 x 0.7mm Serrated Flange Locknut, Zinc-Plated Steel (4 pcs) |
| 497-0533821 | Support Bracket, Scanner, Handheld |
| 006-8628731 | Screw - Hex, POZDRIV, M4, 6.0 (2 pcs) |
| 006-8628739 | Screw - Hex, M6 x 12 MC Comb (2 pcs) |
| * 497-0423108 | Instructions Kit (Reference Sheet) |
* Items marked with an asterisk are not called out on the image.
