7371-K800 PIN Pad Arm Extender (22 inches)

This publication provides procedures for installing a 22-inch PIN Pad Arm Extender on either of the following SelfServ Checkout units:

  • NCR Voyix SCO Hardware (7371)
  • NCR Self-Checkout Hardware - Card Only Self-Checkout (7372)

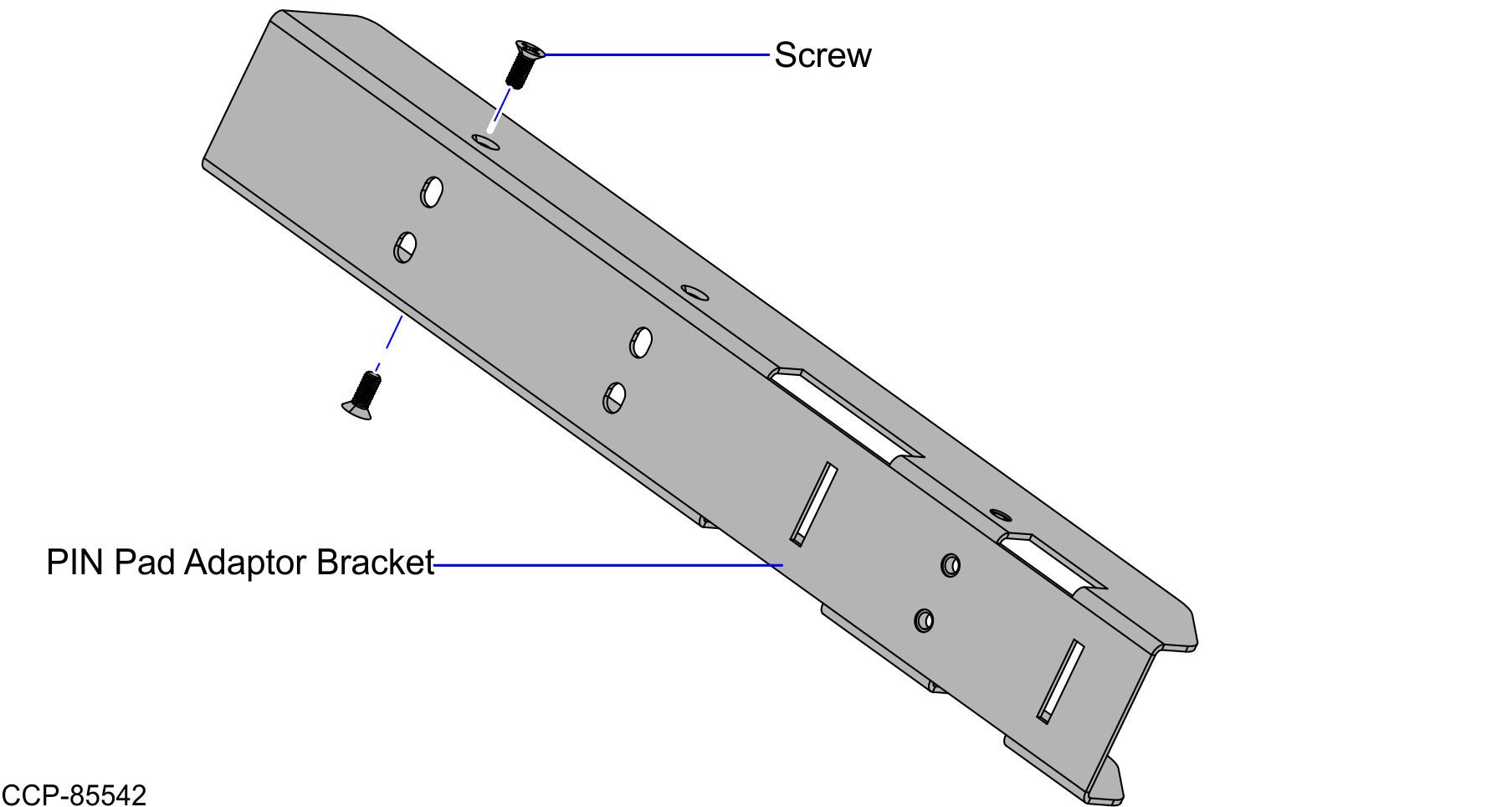

Kit Contents

Part NumberDescription
497-05339287371-K800 Kit - Pinpad Arm 22" Extender
497-0533743Pinpad Adaptor Bracket
006-8622623SCREW, M4 X 10, FLAT HEAD, PHILLIPS, BLACK OXIDE (2 pcs)
* 497-0423108Instructions Kit (Reference Sheet)

* Items marked with an asterisk are not called out on the image.
