7371-K501 Input Shelf (Half Depth - Full Function)
This publication provides instructions for installing the 7371-K501 Input Shelf (Half Depth - Full Function) kit on any of the following NCR Voyix SCO Hardware (7371) configurations:
Note
The maximum load capacity of the 7371-K501 Input Shelf (Half Depth - Full Function) is 150 lbs.
- 7371 Full Function Self-Checkout
- 7371 Full Function Hybrid Self-Checkout

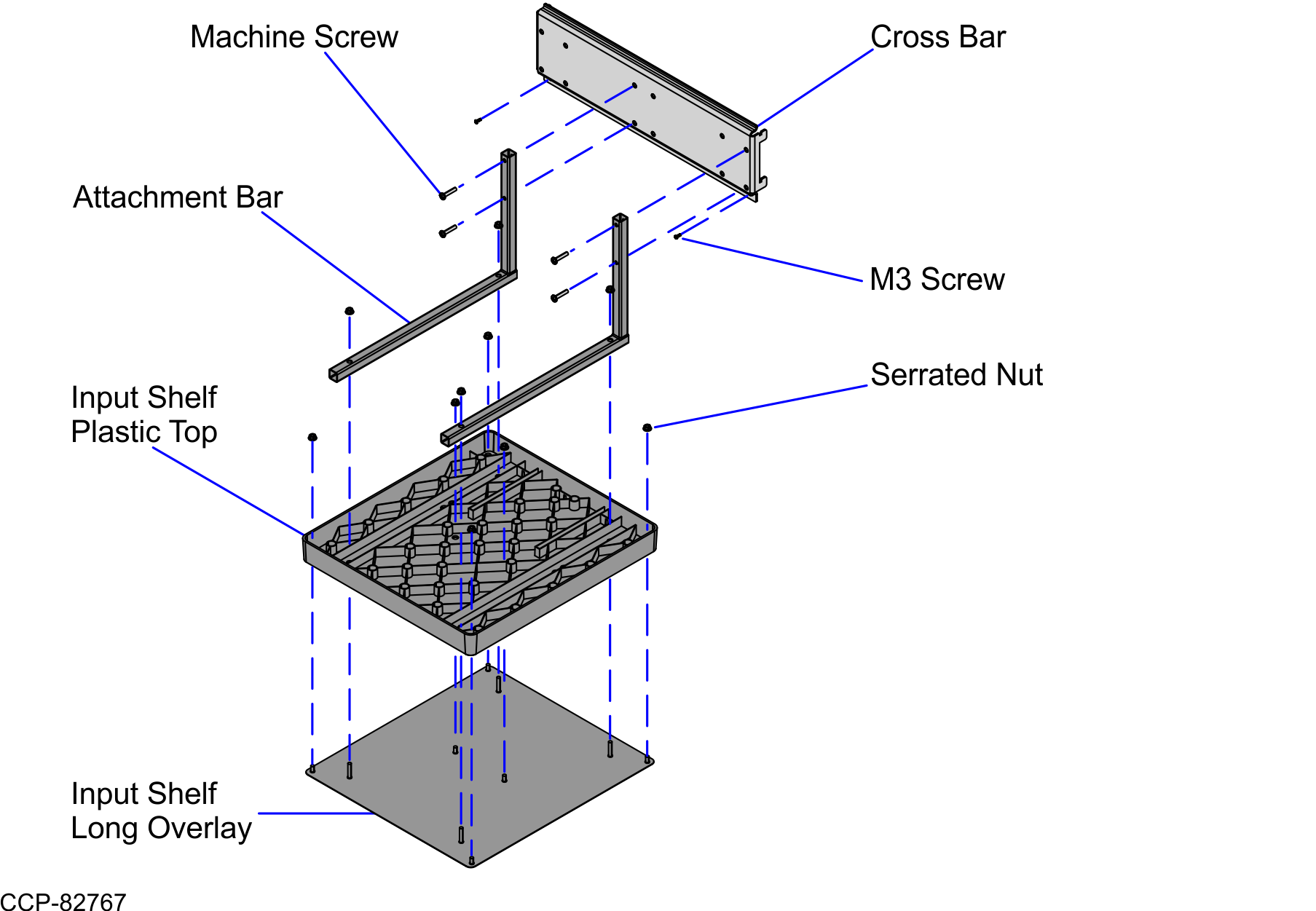

Kit Contents
| Description | |
|---|---|
| 497-0533904 | 7371-K501 Input Shelf (Half Depth - Full Function) |
| 497-0533364 | Input Shelf Plastic |
| 497-0533363 | Top, Shelf |
| 009-0007088 | Serrated Nut-Self Locking (Hex,M6,6.0) (10 Pcs) |
| 497-0532549 | Weldment, Support, Shelf (2 Pcs) |
| 006-8628560 | Machine Screw, Pan, M6X30, Black-Oxide (4 Pcs) |
| 497-0533460 | Input Shelf Cross Bar |
| 006-8628621 | M3 X 10 Screw, Pan Head, Black Oxide (2 Pcs) |
| * 497-0423108 | Instructions Kit (Reference Sheet) |
* Items marked with an asterisk are not called out on the image.
