7371-K500 Input Shelf (Full Depth)
The Input Shelf (Full Depth) provides customers an area to place their items or shopping basket. This publication provides instructions for installing the 7371-K500 Input Shelf (Full Depth) kit on any of the following NCR Voyix SCO Hardware (7371) configurations:
Note
The maximum load capacity of the 7371-K500 Input Shelf (Full Depth) is 150 lbs.
- 7371 Full Function Self-Checkout
- 7371 Full Function Hybrid Self-Checkout

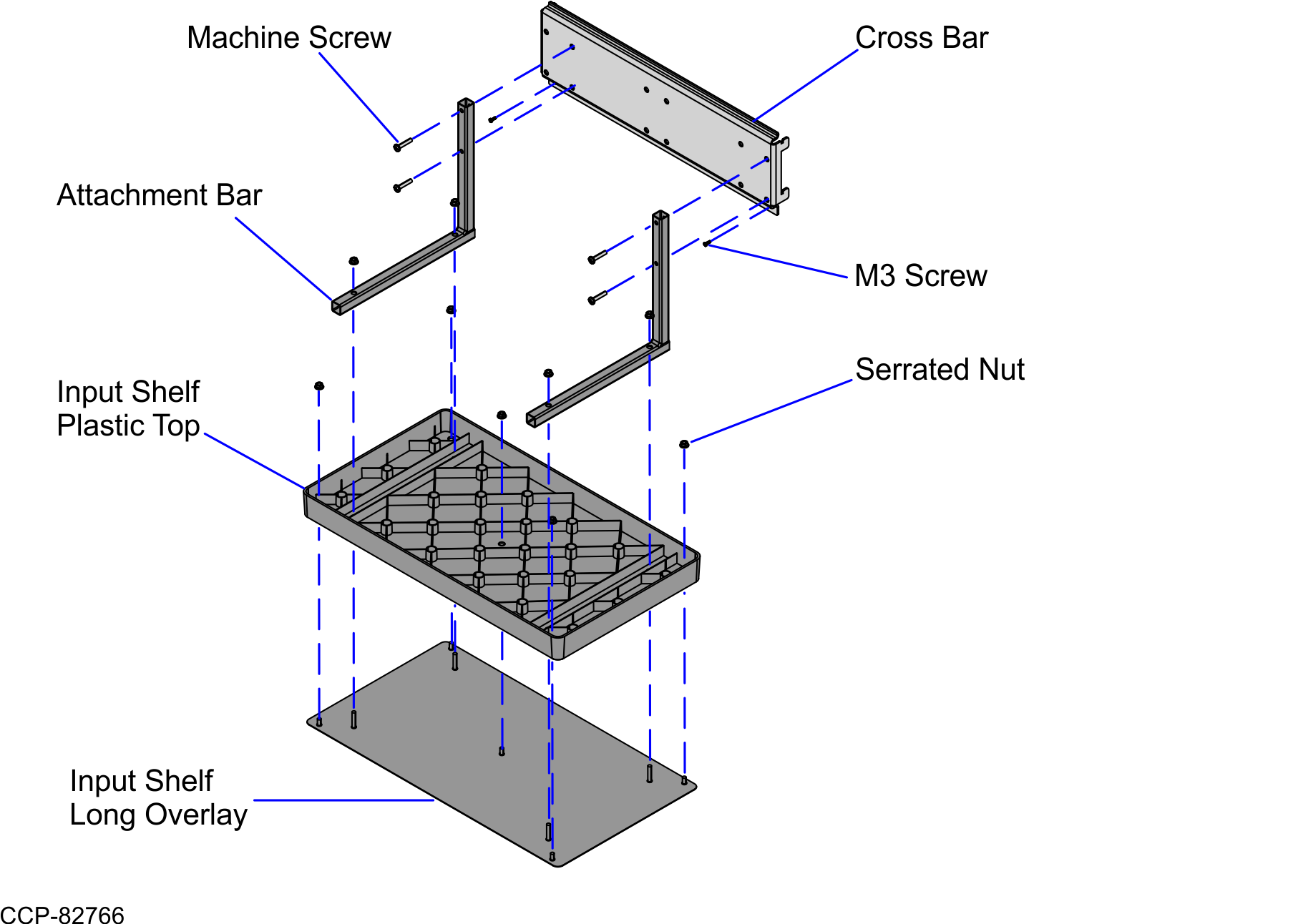

Kit Contents
| Part Number | Description |
|---|---|
| 497-0533903 | 7371-K500 Input Shelf (Full Depth) |
| 497-0533623 | Input Shelf Plastic Top |
| 497-0533625 | Input Shelf Long Overlay |
| 497-0533624 | Long Input Shelf Attachment Bar (2 Pcs) |
| 497-0533460 | Input Shelf Cross Bar |
| 009-0007088 | Serrated Nut-Self Locking (Hex,M6,6.0) (9 Pcs) |
| 006-8628560 | Machine Screw, Pan, M6X30, Black-Oxide (4 Pcs) |
| 006-8628621 | M3 X 10 Screw, Pan Head, Black Oxide (2 Pcs) |
| * 497-0423108 | Instructions Kit (Reference Sheet) |
* Items marked with an asterisk are not called out on the image.
