7371-K352 Front Mount Multiclip (Ingenico Lane 3000/5000/7000)

This publication provides procedures for installing a Front Mount Multiclip for an Ingenico Lane 3000/5000/7000 PIN Pad device on either of the following NCR Voyix SCO Hardware (7371) configurations:

  • NCR Voyix SCO Hardware units
  • SCO Full Function Hybrid units
Note

The Ingenico Lane 3000/5000/7000 device is supplied by the customer.

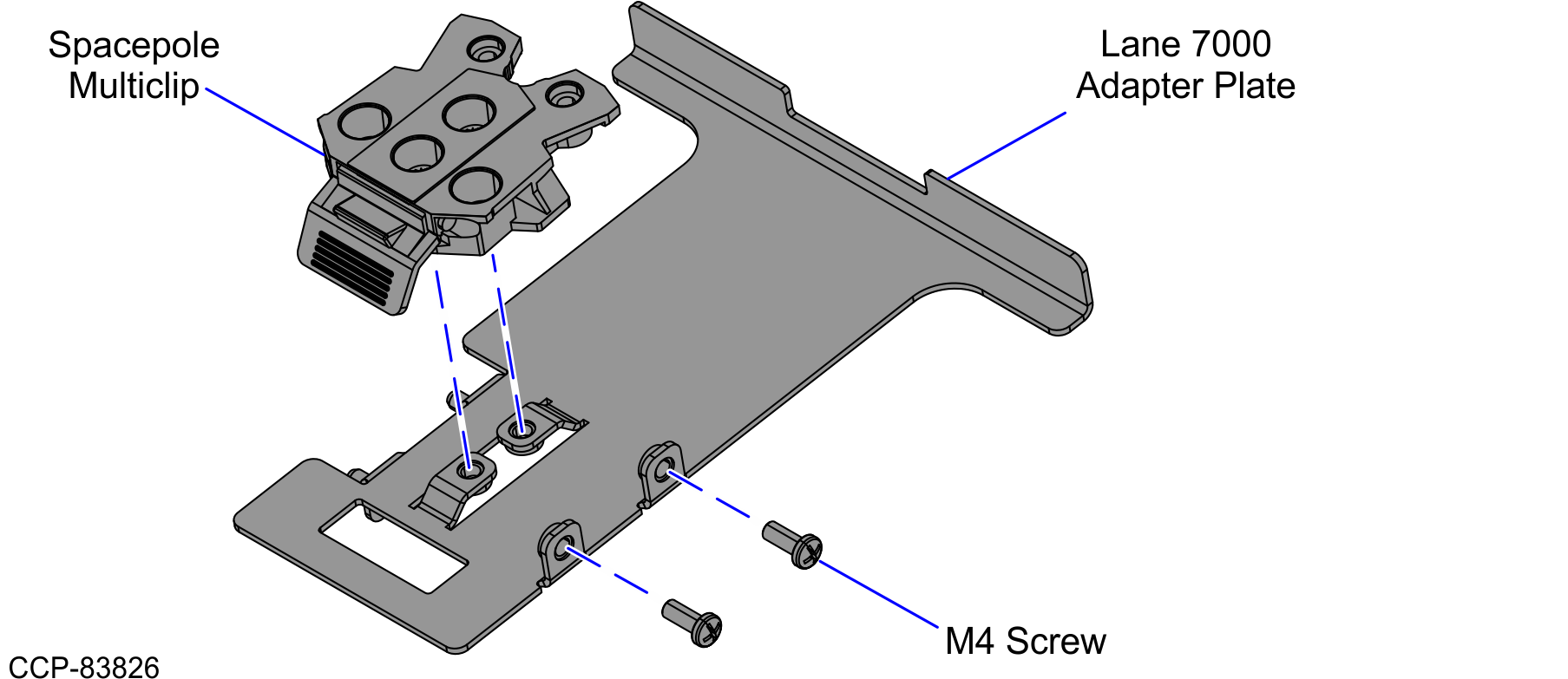

Kit Contents

Part NumberDescription
497-05349807371-K352 Kit, Front Mount Multiclip (Lane 3000/5000/7000)
497-0532678Lane 7000 Adapter Plate
006-8608194Screw,M4X10,Machine,PHIL,PAN,STL,BLACK (2 pcs)
497-0530613Spacepole Multiclip
* 497-0423108Instructions Kit (Reference Sheet)

* Items marked with an asterisk are not called out on the image.
