7371-K351 Front Mounting Plate (Ingenico ISC250)

This publication provides procedures for installing a Front Mounting Plate for an Ingenico ISC250 PIN Pad device on either of the following NCR Voyix SCO Hardware (7371) configurations:

  • NCR Voyix SCO Hardware units
  • SCO Full Function Hybrid units
Note

The Ingenico ISC250 device is supplied by the customer.

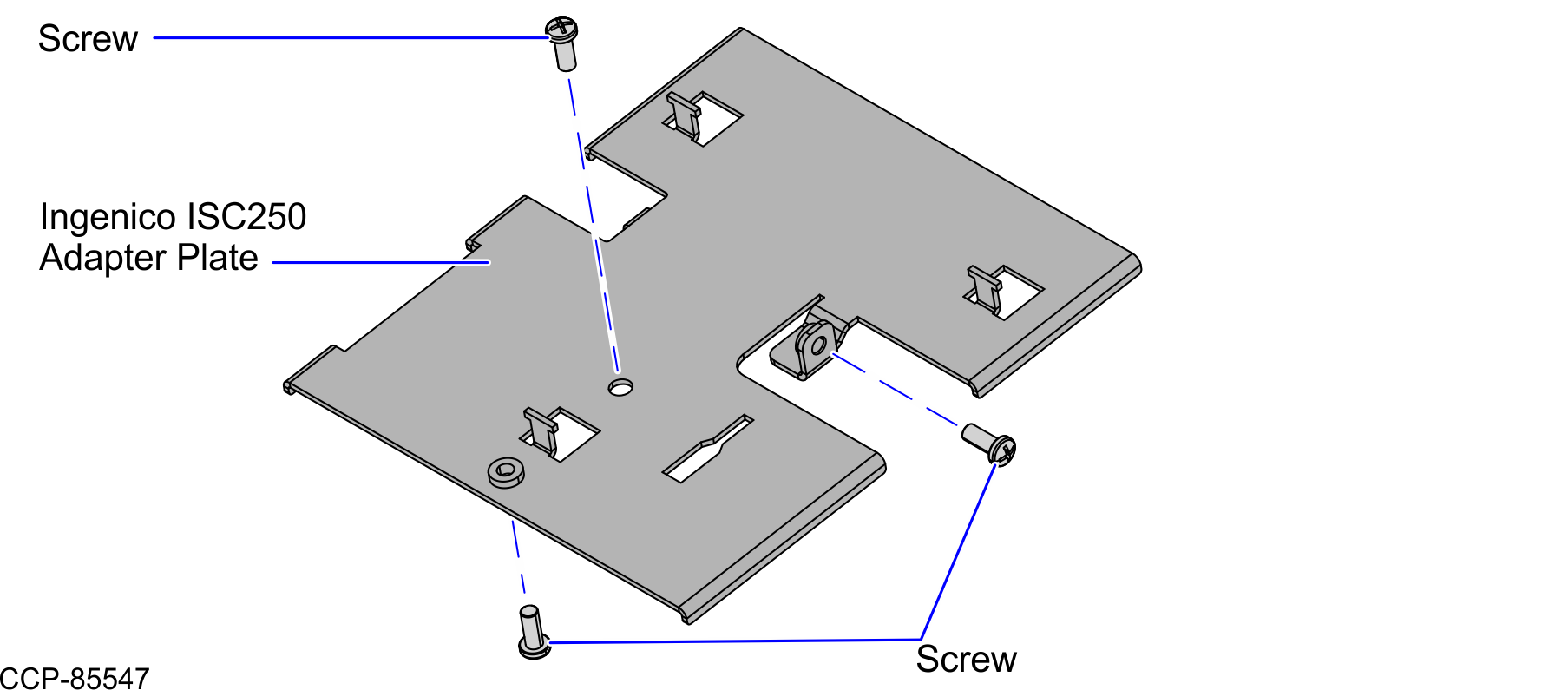

Kit Contents

Part NumberDescription
497-05349797371-K351 Kit, ISC250 Mounting Plate (Front Mount)
497-0532684Ingenico ISC250 Adapter Plate
006-8608194Screw ,M4X10,MACHINE,PHIL,PAN,STL,BLACK (3 pcs)
* 497-0423108Instructions Kit (Reference Sheet)

* Items marked with an asterisk are not called out on the image.
