7371-K350 Universal PIN Pad Plate (Front Mount)

This publication provides procedures for installing a Universal PIN Pad Plate for a PIN Pad device on either of the following NCR Voyix SCO Hardware (7371) configurations:

  • NCR Voyix SCO Hardware units
  • SCO Full Function Hybrid units
Note

The PIN Pad device is supplied by the customer.

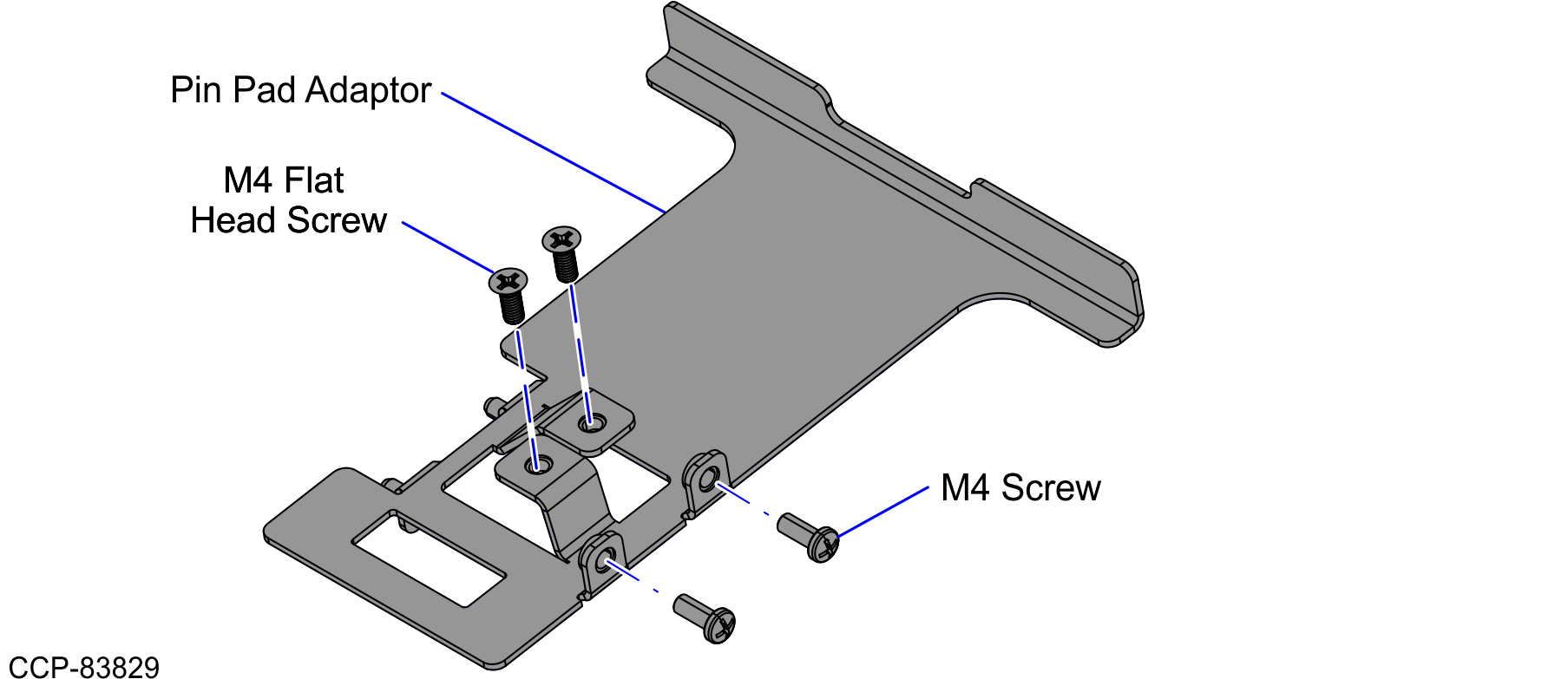

Kit Contents

Part NumberDescription
497-05349837371-K350 Kit - Universal Pinpad Plate (Front Mount)
497-0533090Pinpad Adaptor Bracket
006-8608194Screw,M4X10,Machine ,Phil, Pan,STL, Black (2 pcs)
006-8622623Screw, M4 X 10, Flat Head, PHILLIPS, Black Oxide (2 pcs)
* 497-0423108Instructions Kit (Reference Sheet)

* Items marked with an asterisk are not called out on the image.
