7371-K209 1-Bag Front Bagwell Bumper

This publication provides procedures for installing the 7371-K209 1-Bag Front Bagwell Bumper to the Bagwell.

Note

The 7371-K209 1-Bag Front Bagwell Bumper kit is only compatible to units using any of the following Bagwell kits:

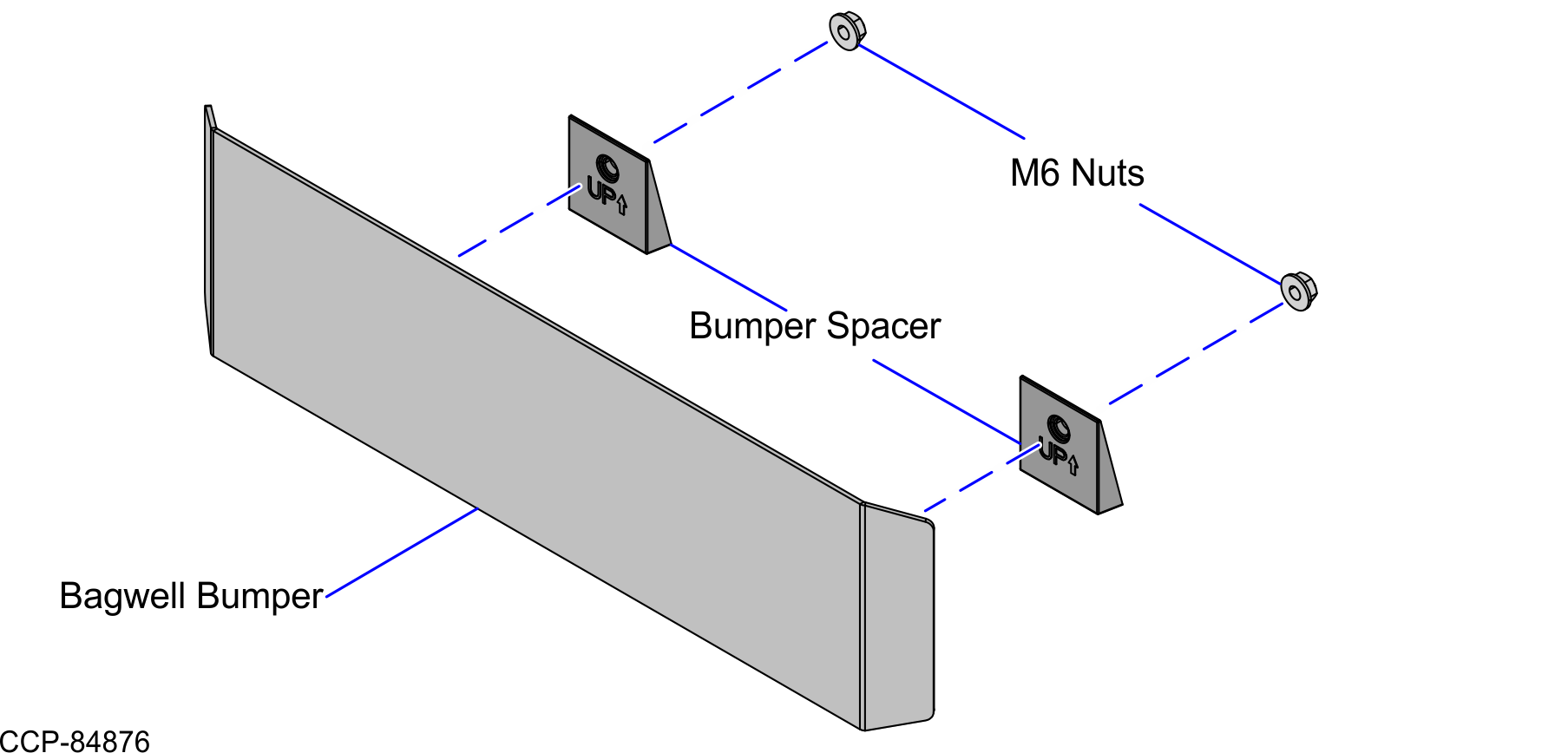

Kit Contents

Part NumberDescription
497-05372247371-K209 Kit - 1 Bag Bumper - Front Only
497-0534270Bumper , Spacer (2 Pcs)
497-0534269Bagwell, Bumper
006-8628707Serrated Nut - Self Locking (M6, 6 (2 Pcs)
* 497-0534680Roll End Folder, 376 X 105 X 33 Mm Id

* Items marked with an asterisk are not called out on the image.
