7371-K155 Convertible Anti-Tipping Plate
This publication provides procedures for installing the 7371-K155 Convertible Anti-Tipping Plate to the 7371 NCR Voyix SCO (7371) Convertible unit.
Kit Contents
| Part Number | Description |
|---|---|
| 497-0535653 | 7371-K155 Convertible Anti-Tipping Plate |
| 497-0535224 | Convertible Stabilizer Plate (1 pc) |
| 497-0535578 | Bracket Mount Anti-Tipping Convertible (2 pcs) |
| 006-8624481 | Screw - M5X8, Flat Head, Phillips, Machine Screw (6 pcs) |
| 006-8628720 | Black-Oxide 18-8 Stainless Steel Pan Head Phillips Screws M5 x 0.80 mm Thread, 10mm Long (6 pcs) |
| 497-0535649 | Skirt Front Convertible 1 pc) |
| 497-0535650 | Skirt Front Convertible Left (3 pcs) |
| 006-8623181 | Screw - M5 x 0.8, 8mm length, Machine, Pan Head, Black Zinc (12 pcs) |
| * 497-0423108 | Instructions Kit (Reference Sheet) |

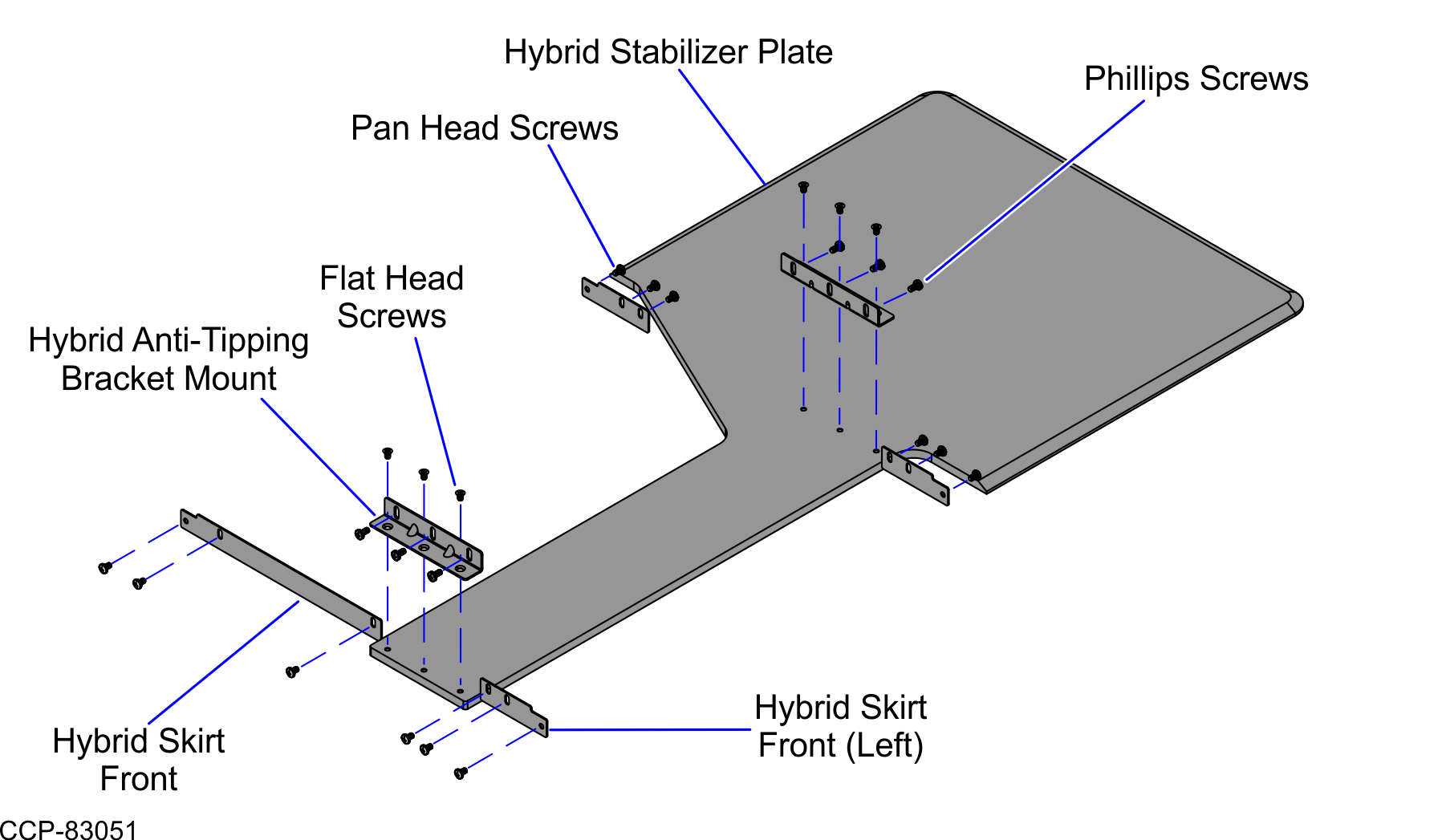

* Items marked with an asterisk are not called out on the image.
