7371-K090 21.5" Display Bracket Full Function and Card Only

This publication provides procedures for installing the 7371-K090 21.5" Display Bracket Full Function and Card Only to the following NCR Voyix SCO Hardware units:

  • 7371 NCR Voyix SCO Full Function Fixed
  • 7371 NCR Voyix SCO Full Function Hybrid
  • 7372 NCR Voyix SCO Card Only

Kit Contents

Part NumberDescription
497-05375107371-K090 21.5” Display Bracket Full Function and Card Only
006-8622885Screw, M4-0.7 X 8Mm Flt Hd, Machine, Knurled Head, Steel, Black Oxide (8 Pcs)
006-8628731Screw - Hex, Pozdrive, M4, 6.0 (2 Pcs)
497-0536906Common Display Bracket
497-0536907Display Bracket Adapter
497-0536908Connector Cover
497-0537259Display Support, Standard Landscape

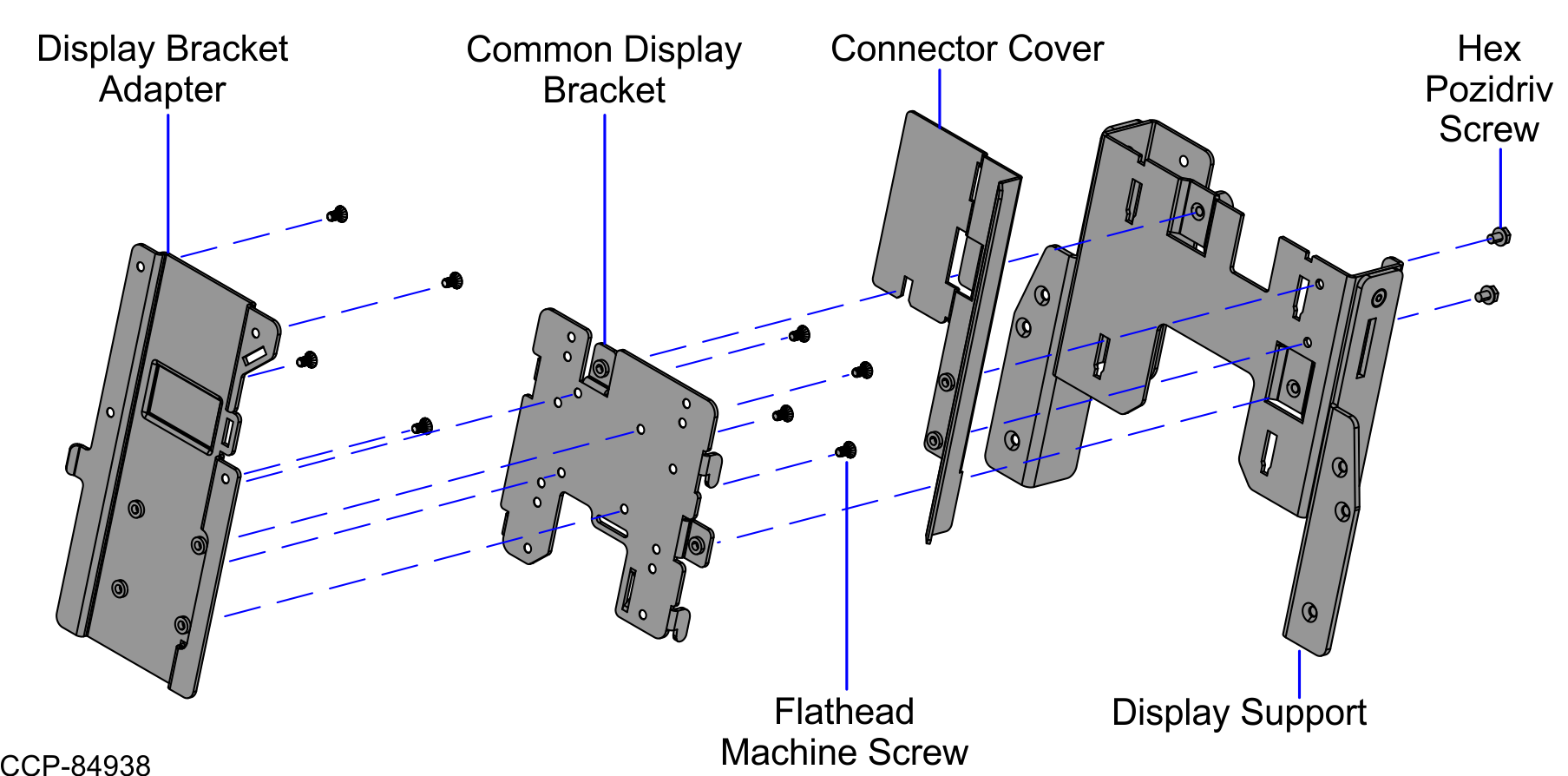

* Items marked with an asterisk are not called out on the image.
