Routing the LAN cable

To route the LAN cable, follow these steps:

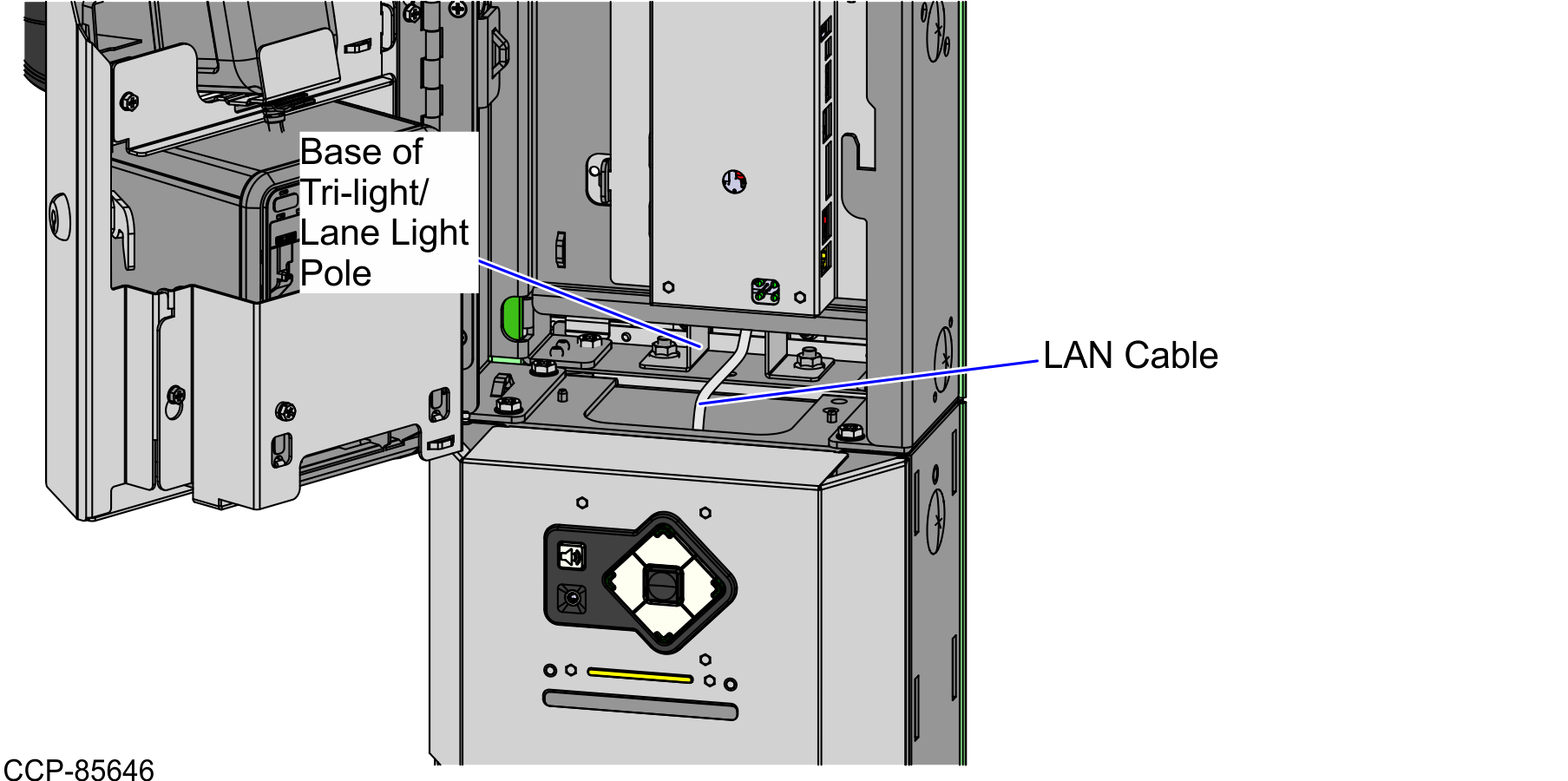

  1. From the Tri-Light/Lane Light pole, route the LAN cable down to the pedestal through the cable access hole.

  1. Route the LAN cable down to the Pedestal Cabinet along with the cable bundle.

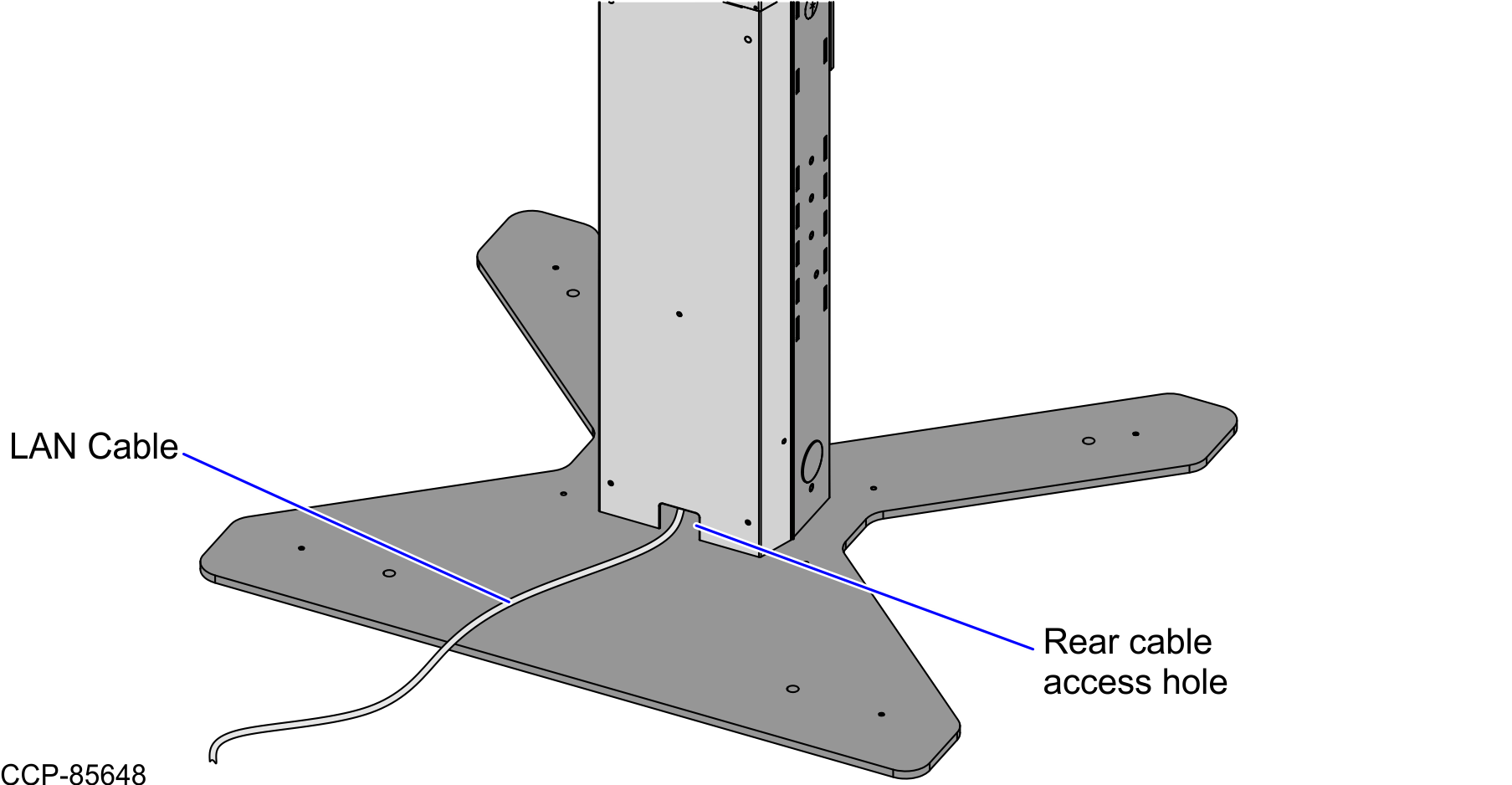

  1. Route the LAN cable down and out through the rear cable access hole, as shown in the image below.

  1. Connect the LAN cable to the PoE Switch.
