7371-K060 Interactive Status Light with IP Camera (Standard Flag)
This publication provides procedures on installing the Interactive Status Light with IP Camera (Standard Flag) on any of the following units:
- NCR Voyix SCO Full Function (7371) Fixed
- NCR Voyix SCO Full Function (7371) Hybrid
- NCR Voyix SCO (7372) Tabletop
- NCR Voyix Self-Checkout (7350) R6 Lite
- NCR Voyix Self-Checkout (7360) R6-C
- NCR Voyix Self-Checkout (7358) R6L Plus
- NCR Voyix Self-Checkout (7707) R6-J
- NCR Voyix SelfServ™ 90 (7709) R 1.0/1.1Note
The Tri-Light/Lane Light Pole and Mount are not included in this Kit. For more information, refer to 7364-K062 Tri-Light/Lane Light Pole and Mount.
- NCR Voyix SelfServ™ 90 (7709) R 2.1Note
The Tri-Light/Lane Light Pole and Mount are not included in this Kit. For more information, refer to 7364-K062 Tri-Light/Lane Light Pole and Mount.

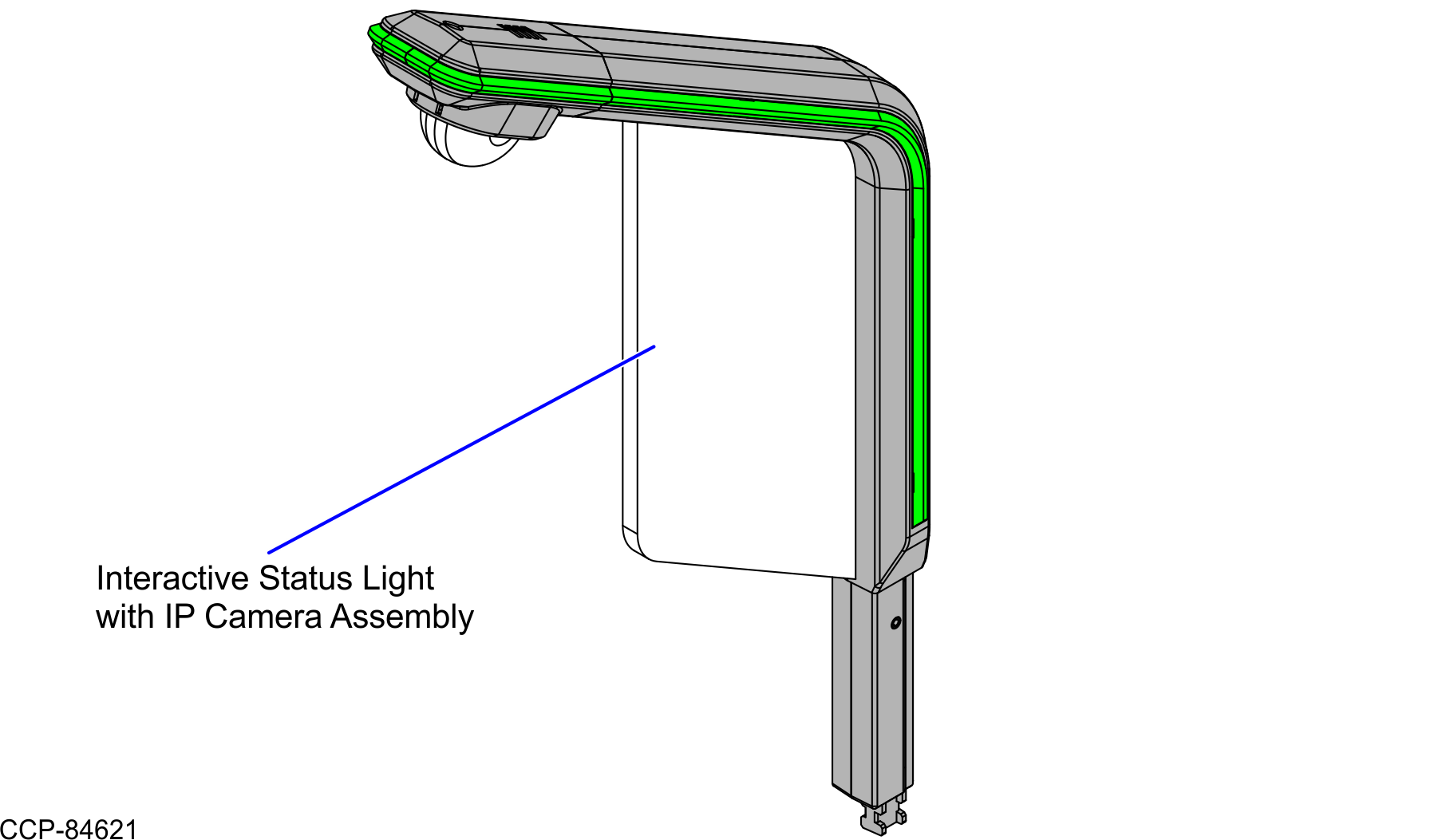

Kit Contents
| Part Number | Description |
|---|---|
| 497-0538576 | 7371-K060 Interactive Status Light, Standard Flag with IP Camera |
| 497-0536137 | Tri-Light, Standard Flag (VTC) |
| *497-0536855 | Lane Light Graphics Label - Generic |
| *497-0512112 | Cable - +24V, Monaco and I/O Board Note
7372 units are equipped with Y-cable, 24V Power, KIO and POS, w/ Ground Wire, 875 mm (497-0538040 or 497-0535259). Note
For NCR SelfServ™ 90 (7709) versions with existing +24V, Monaco and I/O Board cable (497-0512112), the cable needs to be disconnected and replaced by the ISL USB Type-C to Split 24 V and USB Type-A cable (497-0537821). |
| *497-0536889 | Cable - USB+Power (24V) to Status Controller Board, Keyed, 3M Note
Use Cable - USB+Power (24V) to Status Controller Board, Keyed, 3M (497-0536889) for 7350 R6 Lite, 7360, 7358 R6L Plus, 7371 Full Function (Fixed), 7371 Full Function (Hybrid), 7372 Card Only, and 7372 Kiosk units. |
| *006-8628897 | Ferrite - Round Clamp On, 6.3mm ID, 10-250MHz (46 Material) |
| *006-8628567 | Screw - Flathead, Pozi Drive, M4x0.7mm, 8mm Long, Zinc-Plated Steel |
| *497-0537090 | Y-Cable - USB-C Controller Board to 24V PSU and USB-A, Keyed, 3M Note
Use Y-Cable - USB-C Controller Board to 24V PSU and USB-A, Keyed, 3M (497-0537090) for 7372 Tabletop, and 7707 units. |
* Items marked with an asterisk are not called out on the image.
