7371-K016 Tri-Light Camera 3.0 Pole Rear Cover
This publication provides procedures for installing the 7371-K016 Tri-Light Camera 3.0 Pole Rear Cover to the Tri-Light/Lane Light Pole on the following NCR Voyix Self-Checkout units:
- NCR Voyix SCO Hardware (7371) Full Function
- NCR Voyix SCO Hardware (7371) Full Function Hybrid
NCR Voyix Self-Checkout (7360) R6-C
Note
The 7371-K016 Tri-Light Camera 3.0 Pole Rear Cover is only compatible to Self-Checkout configured with any of the following Tri-Light/Lane Light kits:
- 7360-K089 IP Camera Field Upgrade (D-Vitec)
- 7360-K086 Tri-Light/Lane Light with IP Camera (D-Vitec)
- 7360-K087 Tri-Light/Lane Light with IP Camera (VTC)
- 7360-K090 IP Camera Field Upgrade (VTC)
- 7360-K088 Tri-Light/Lane Light with IP Camera (Axis)
- 7360-K091 IP Camera Field Upgrade (Axis)

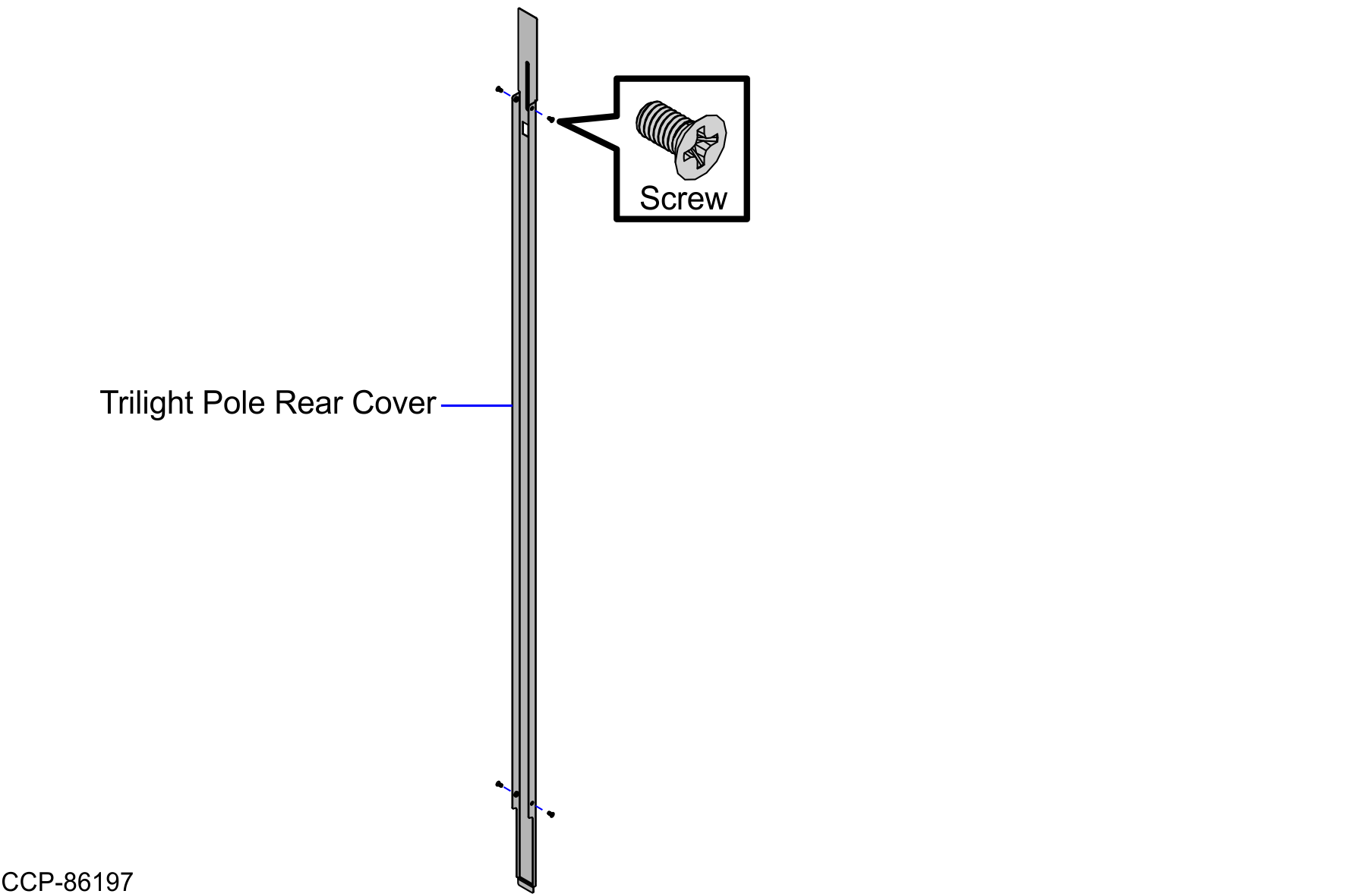

Kit Contents
| Part Number | Description |
|---|---|
| 497-0539176 | 7371-K016 Tri-light Camera 3.0 Pole Rear Cover |
| 497-0538907 | Rear Cover , Trilight Pole - Long |
| 006-8624498 | Screw - M4 x 0.7 x 8 mm,497 Flat Head, Stainless (4 pcs) |
