Installation Procedure

To install the 7371-K005 Bagwell Bumper, follow these steps:

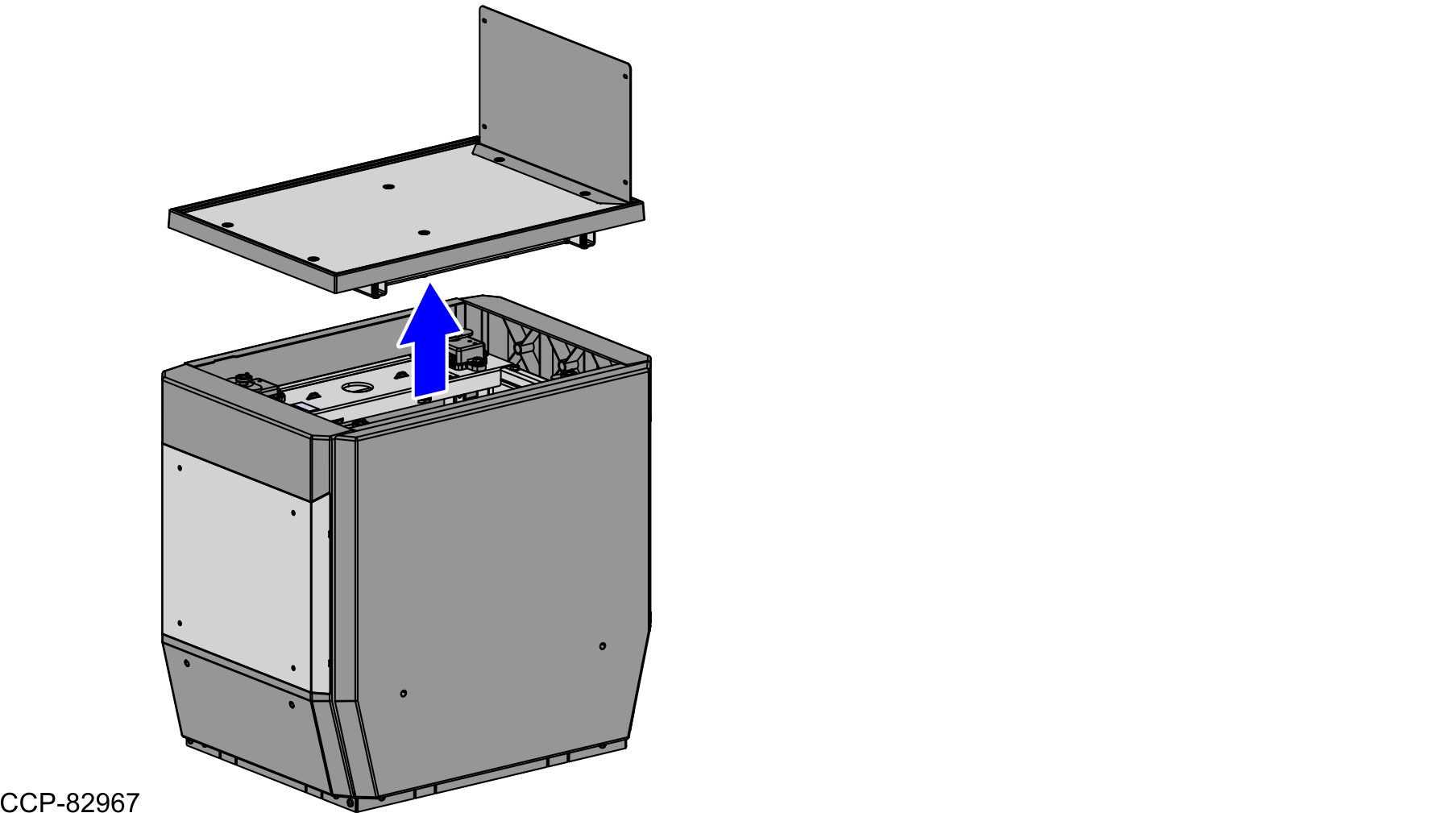

1. Lift and remove the Scale Tray from the Bagwell.



2. Remove the Front Panel from the Bagwell Frame. For more information, refer to Removing the Bagwell Front Panel.

1. Attach the Bumper Spacers to each Bumper stud.

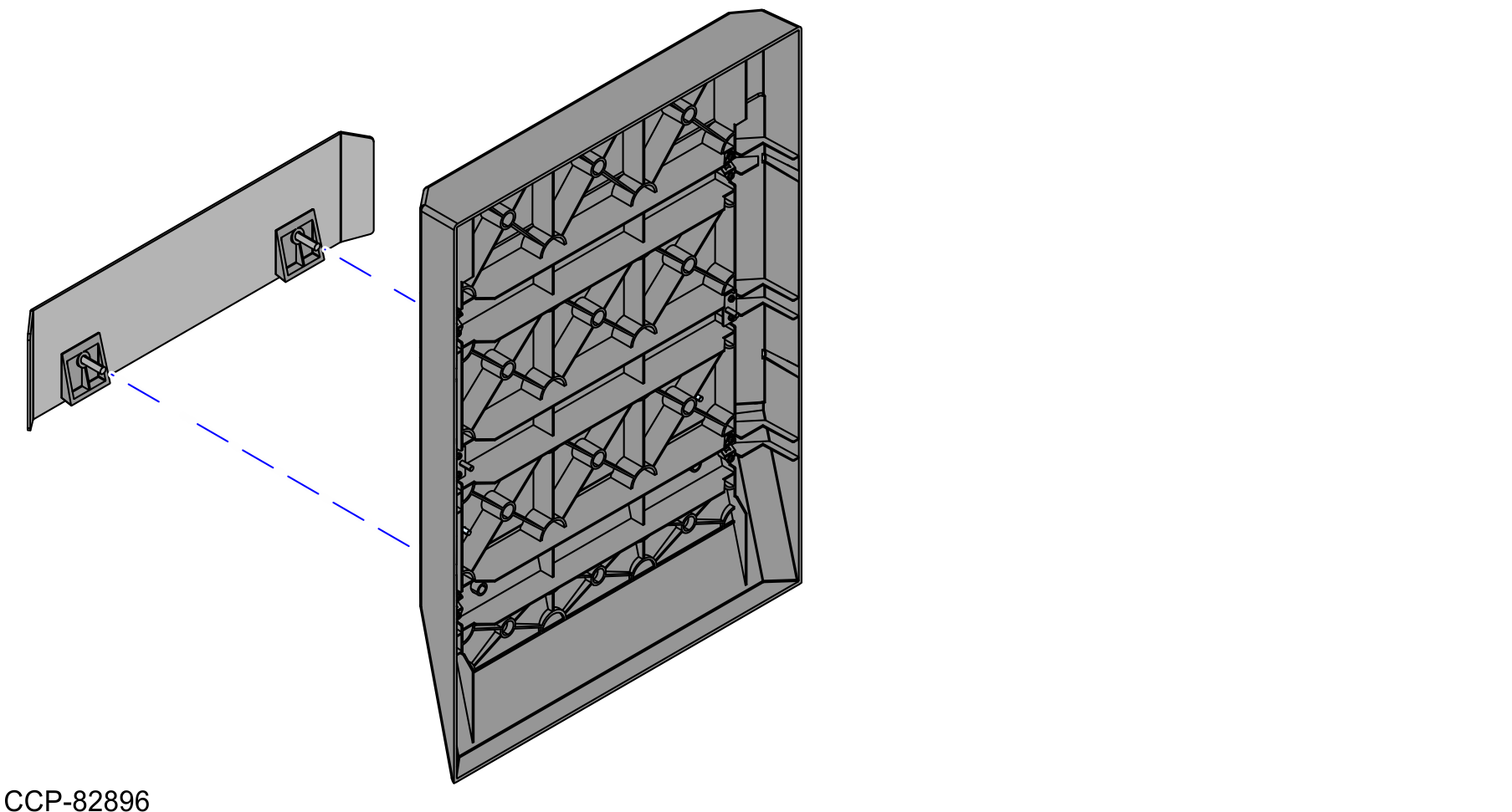

2. Insert the Bumper Studs with Spacers into the corresponding holes on the Bagwell Front Panel, as shown in the image below.

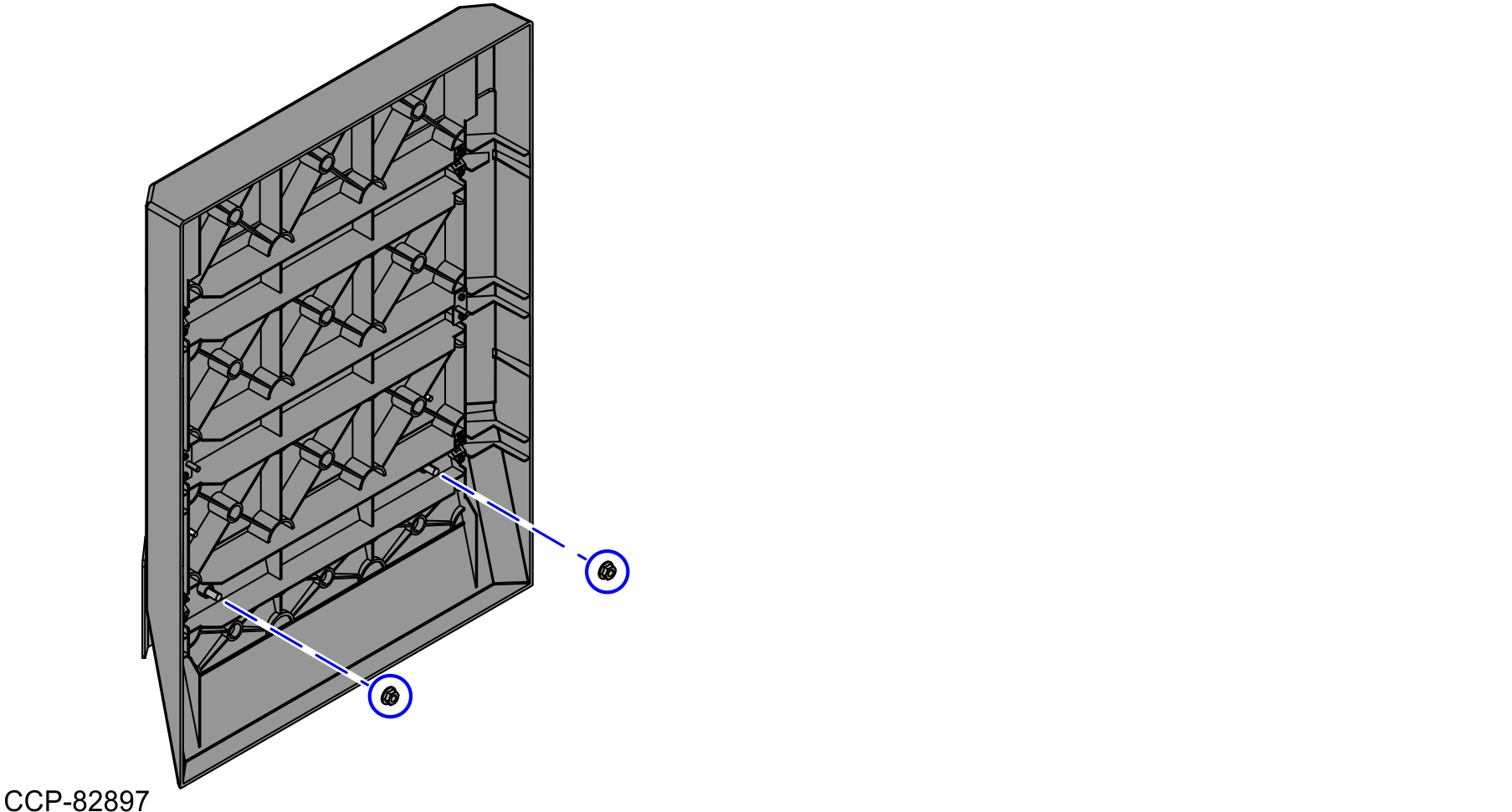

1. Secure the Bumper assembly to the Bagwell Front Panel using two (2) nuts.



1. Install the Front Panel to the Bagwell Frame. For more information, refer to Installing the Bagwell Front Panel.

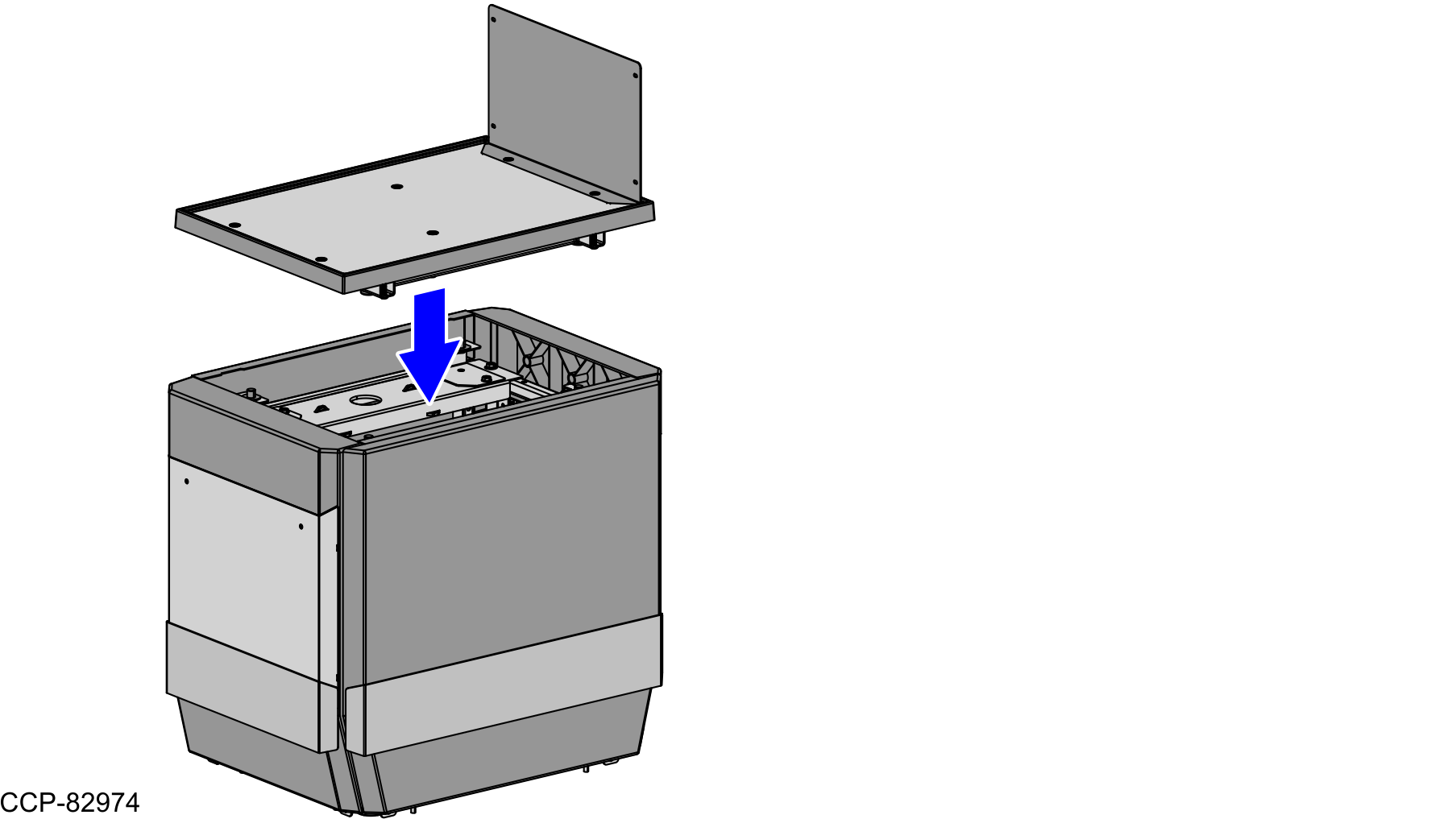

2. Place the Scale Tray onto the Bagwell.
