7371-K004 Bagwell Fence
This publication provides instructions for installing the 7371-K004 Bagwell Fence to the NCR Voyix SCO Hardware (7371) unit.
Kit Contents
| Part Number | Description |
|---|---|
| 497-0533973 | 7371-K004 Bagwell Fence |
| 497-0532757 | Fence, Scale Tray, Left Side |
| 497-0532758 | Fence, Scale Tray, Right Side |
| 007-7022141 | Screw Ma Flat Poz M6 (4 Pcs) |
| 006-8624472 | Acorn Nut – M4 X 0.7Mm, 7Mm Width, 8Mm Height - Black Oxide Finish (4 Pcs) |
| * 497-0423108 | Instructions Kit (Reference Sheet) |

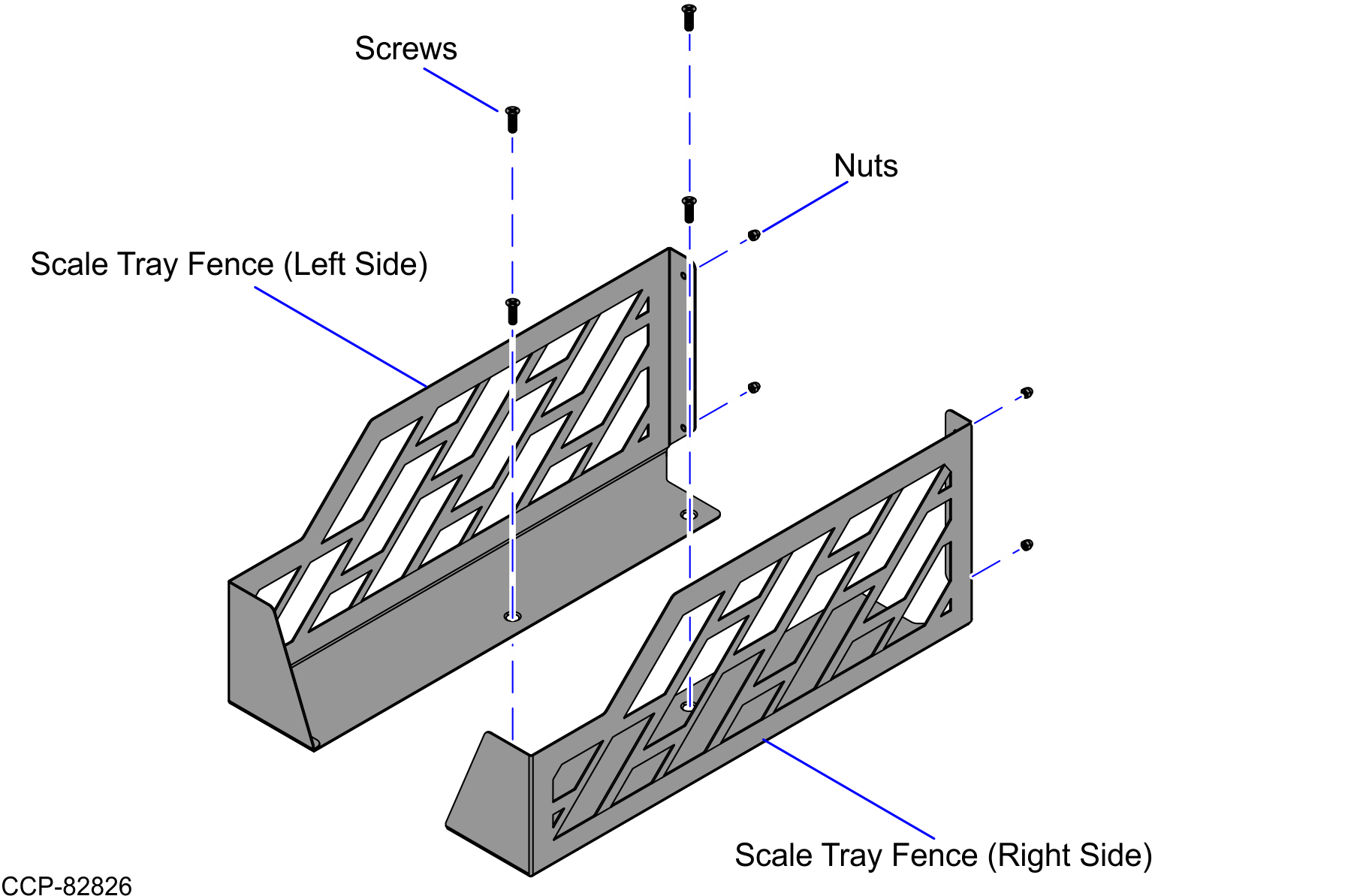

* Items marked with an asterisk are not called out on the image.
