Installing the Bagwell Panels (Front and Back)

To install the Front and Back panels to the Bagwell Frame, follow these steps:

Note

This procedure uses images of the Bagwell only for reference.

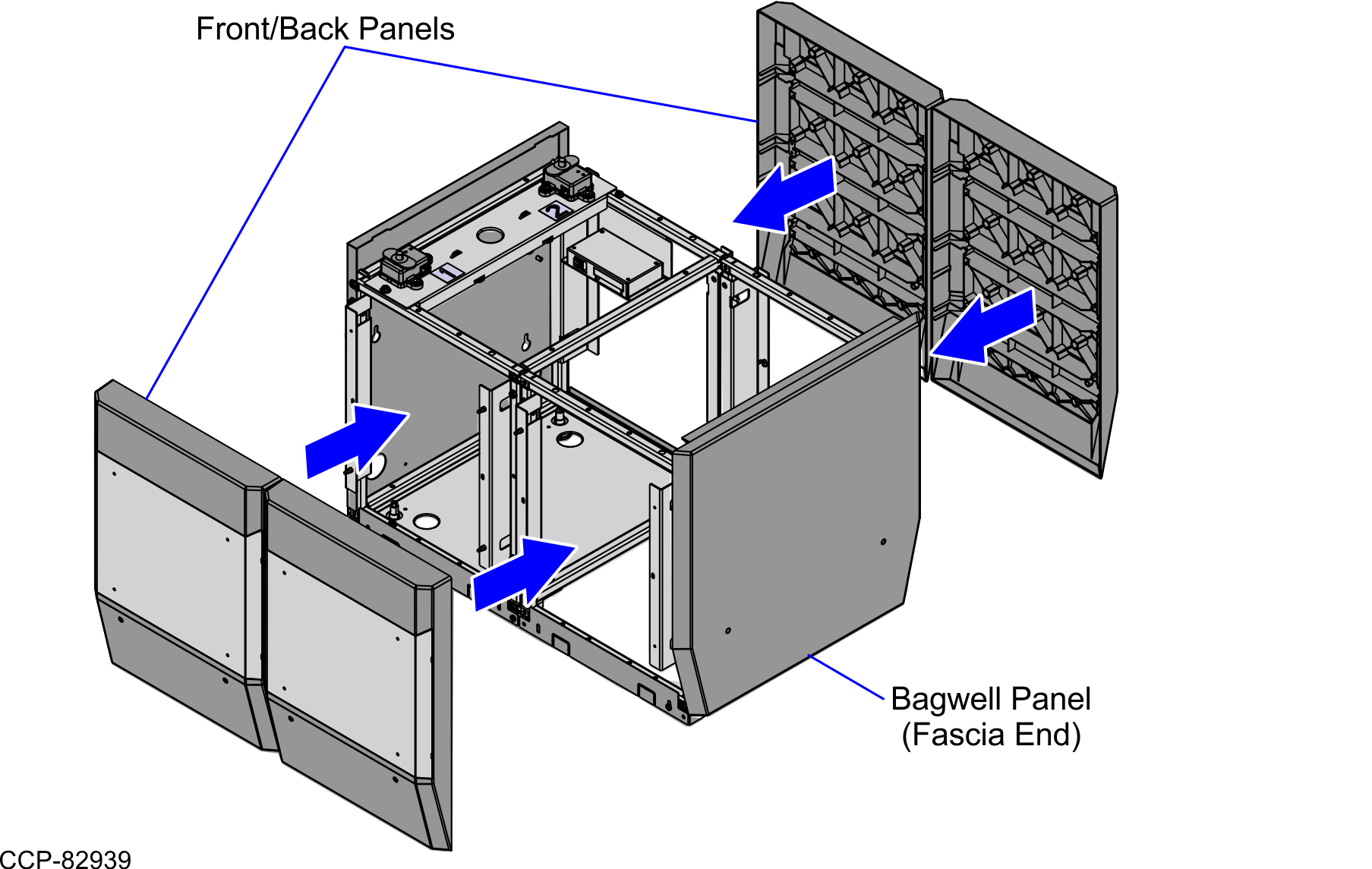

  1. Push the Front Panel onto the Bagwell Frame until it clicks and locks into place.
    Note

    The Front and Back Panels of the Bagwell must be installed after the End Panel.

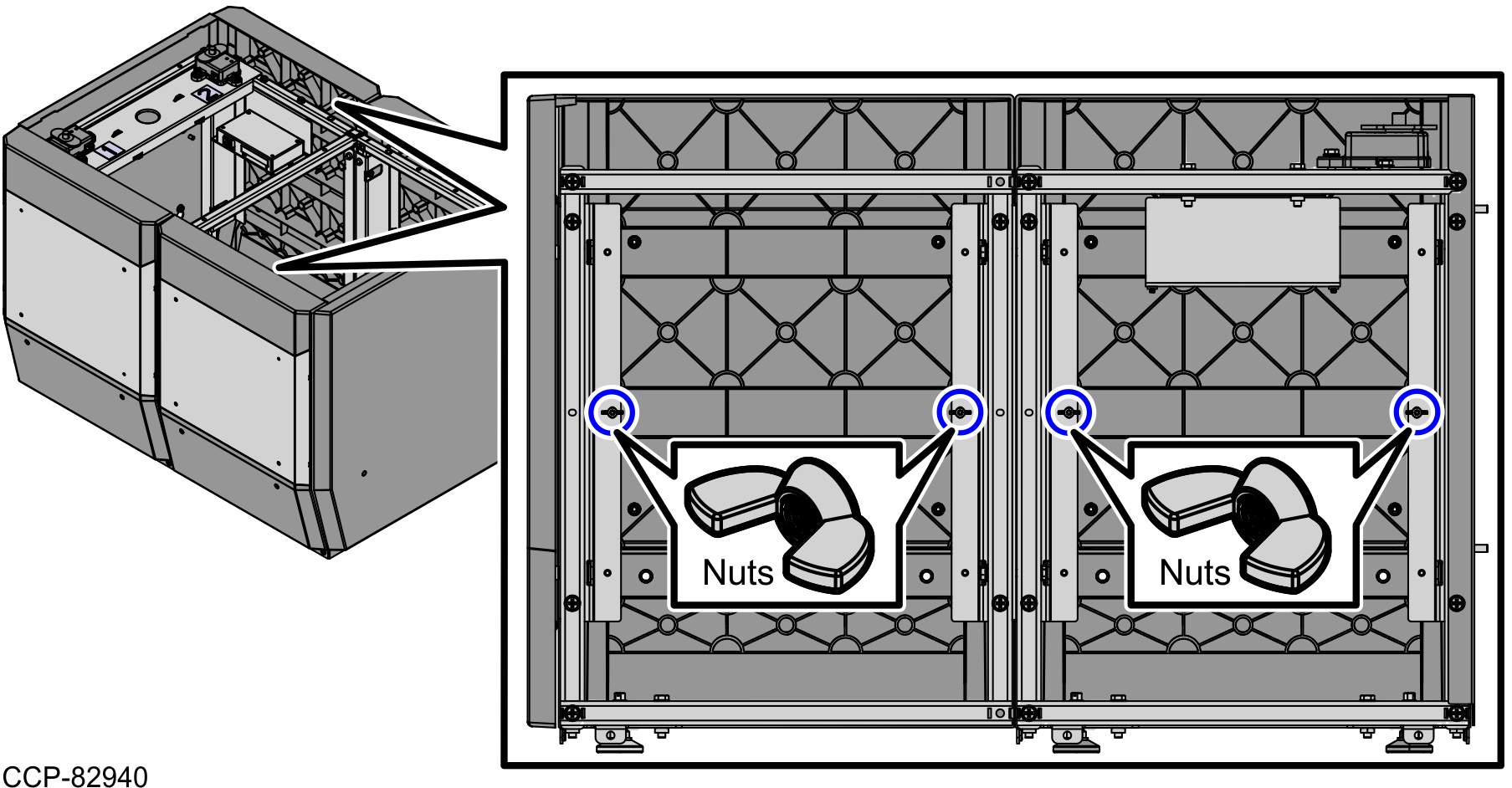

  2. Secure each Panel to the Bagwell Frame using two (2) wing nuts from inside the Bagwell, as shown in the image below.
