7371-K003 Bagwell Expansion
This publication provides procedures for installing the 7371-K003 Bagwell Expansion to the following NCR Self-Checkout units with an existing Bagwell:
- NCR Voyix SCO Hardware (7371)
- NCR Self-Checkout Hardware (7372)

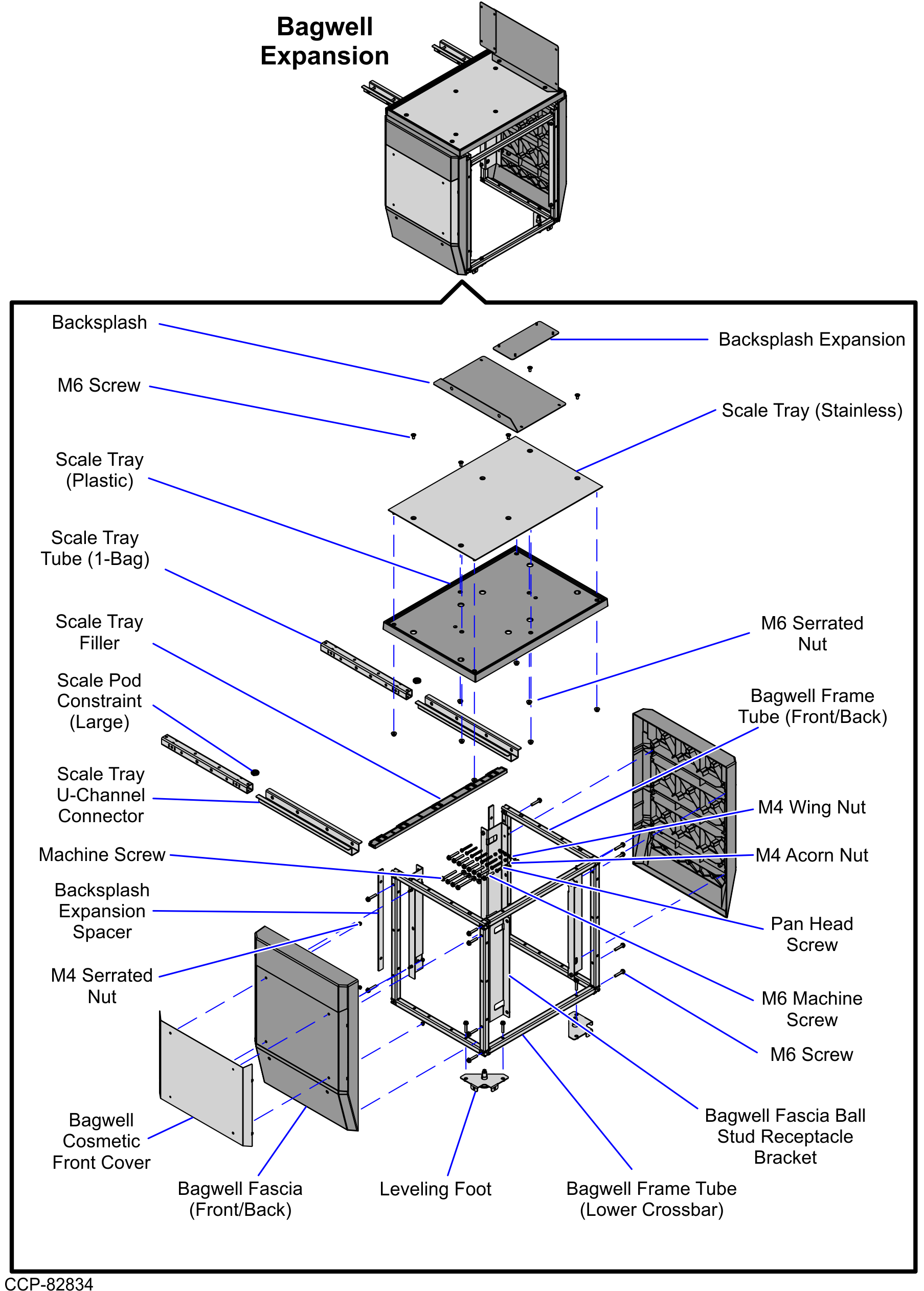

Kit Contents
| Part | Part Number | Description |
|---|---|---|
| 497-0533874 | 7371-K003 Bagwell Expansion | |
| 006-8624472 | Acorn Nut - M4 X 0.7Mm, 7Mm Width, 8Mm Height - Black Oxide Finish (4 Pcs) |
| 006-8628641 | Metric Screw Machine - Hex Head - M6 X 50 mm (12 Pcs) |
| 006-8628550 | Screw - Torx Pan Head Thread-Forming, #10 X 1.5" Long (8 Pcs) |
| 006-8628595 | Metric Screw Machine - Hex Head - M6 X 30 mm (16 Pcs) |
| 007-7022141 | Screw Ma Flat Poz M6 (6 Pcs) |
| 009-0007087 | Serrated Nut-Self Locking (Hex,M4,4.2) (4 Pcs) |
| 009-0007088 | Serrated Nut-Self Locking (Hex,M6,6.0) (12 Pcs) |
| 497-0532697 | Bagwell, Scale Tray, Plastic |
| 497-0532704 | Bagwell, Scale Tray, Stainless |
| 497-0532709 | Bagwell, Scale Tray, Filler |
| 497-0532756 | Backsplash, Scale Tray, 1 Bag |
| 497-0534878 | Bagwell, Expansion, Spacer (2 Pcs) |
| 497-0534672 | Bagwell, Fascia, Ball Stud Receptacle Bracket (4 Pcs) |
| 497-0533643 | Backsplash, Expansion |
| 497-0533942 | Scale Pod Constraint, Large (2 Pcs) |
| 497-0534373 | Scale Tray Tube, 1-Bag (2 Pcs) |
| 497-0534146 | Scale Tray, U-Channel Connector-2 (2 Pcs) |
| 497-0534668 | Bagwell, Frame, Tube, Front/Back (2 Pcs) |
| 497-0534218 | Bagwell, Frame, Tube, Cross Bar, Lower (2 Pcs) |
| 497-0534266 | Bagwell, Fascia, Front/Back (2 Pcs) |
| 497-0534302 | Bagwell, Gusset, Leveling Foot (2 Pcs) |
| 795-0297535 | Front Cover, Cosmetic, Bagwell (Mid-Impact Silver) |
| 497-0534482 | Hole Cover Label - Impact Black (Blk7) |
| 006-8626376 | Wing Nut - M4X0.7Mm - Zinc-Plated Steel (4 Pcs) |
 | 006-8628706 | Zinc-Plated Steel Split Lock Washer - M6 (28 Pcs) |
| * | 497-0423108 | Instructions Kit (Reference Sheet) |
* Items marked with an asterisk are not called out on the image.
