7371-K002 1 Bagwell (No Scale)

This publication provides procedures for installing 7371-K002 1 Bagwell (No Scale) to the following NCR Voyix Self-Checkout units:

  • 7371 NCR Voyix SCO Hardware
  • 7371 SCO Full Function Hybrid
  • 7372 SCO Kiosk
    Note

    For the 7372 SCO Kiosk, ensure that the Bagwell Spacer is installed prior to the Bagwell installation. To install the Bagwell Spacer, refer to the 7372-K001 Bagwell Spacer (Card Only) Kit Instructions.

The NCR Voyix Self-Checkout units with a Bagging Area (Bagwell) Module can be configured for either Left-hand (LH) orientation or Right-hand (RH) orientation, which refers to the direction customers scan and bag items.

  • Left-hand (LH) orientation—Customers scan from left to right.
  • Right-hand (RH) orientation—Customers scan from right to left.
Note

The orientation of the unit is determined by the position of the Lower Core (Cabinet) Module in relation to the Bagging Area (Bagwell) Module.

Example

The Left-hand (LH) orientation has the unit positioned on the left side of the Bagwell.

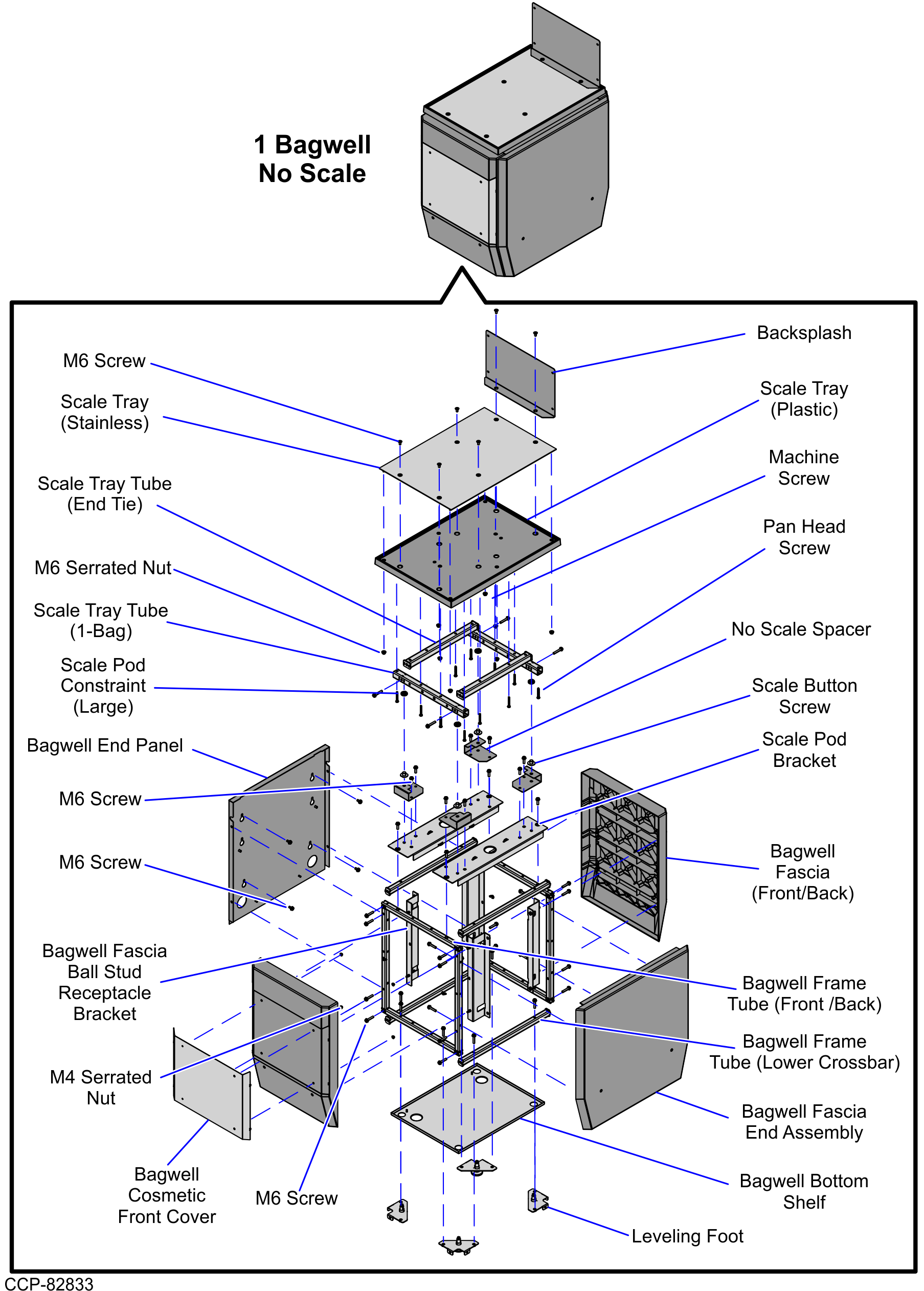

Kit Contents

PartPart NumberDescription
 497-05344427371-K002 1 Bagwell (No Scale)

497-0534668Bagwell, Frame, Tube, Front/Back (2 Pcs)

497-0534218Bagwell, Frame, Tube, Cross Bar, Lower (4 Pcs)

006-8628595

Metric Machine Screw, Hex Hd, M6 X 30mm (28 Pcs)

497-0534302Bagwell, Gusset, Leveling Foot (4 Pcs)

497-0534677Bagwell, SCO, End Panel

009-0006599Screw Hex M6 X 12 Mc Comb (4 Pcs)

497-0533463Bagwell, Shelf, Bottom

497-0534672Bagwell, Fascia, Ball Stud Receptacle Bracket (4 Pcs)

497-0534674Bagwell, Scale Pod, Bracket (2 Pcs)

497-0534566Assembly, Bagwell Fascia End

497-0534479Spacer, No Scale (4 Pcs)

009-0006598Screws M6 X 20 (12 Pcs)

497-0532744Scale Button Screw, 1/4-20, Zn Chromate (4 Pcs)

497-0534266Bagwell, Fascia, Front/Back (2 Pcs)

795-0297535Front Cover, Cosmetic, Bagwell (Mid-Impact Silver)

009-0007087Serrated Nut-Self Locking (Hex,M4,4.2) (4 Pcs)

497-0532697Bagwell, Scale Tray, Plastic

497-0532704Bagwell, Scale Tray, Stainless

497-0534373Scale Tray Tube, 1-Bag (2 Pcs)

497-0534056Scale Tray Tube, End Tie (2 Pcs)

497-0533942Scale Pod Constraint, Large (4 Pcs)

497-0532756Backsplash, Scale Tray, 1 Bag

009-0007088Serrated Nut-Self Locking (Hex,M6,6.0) (8 Pcs)

006-8628550Screw - Torx Pan Head Thread-Forming, #10 X 1.5" Long (12 Pcs)

006-8628641Metric Machine Screw, Hex Head, M6 X 50 mm (4 pcs)

007-7022141Screw Ma Flat Poz M6 (6 Pcs)

497-0534482Hole Cover Label - Impact Black (Blk7)

006-8626376Wing Nut - M4X0.7Mm - Zinc-Plated Steel (4 Pcs)
006-8628706Zinc-Plated Steel Split Lock Washer - M6 (32 Pcs)
*497-0423108Instructions Kit (Reference Sheet)

* Items marked with an asterisk are not called out on the image.
