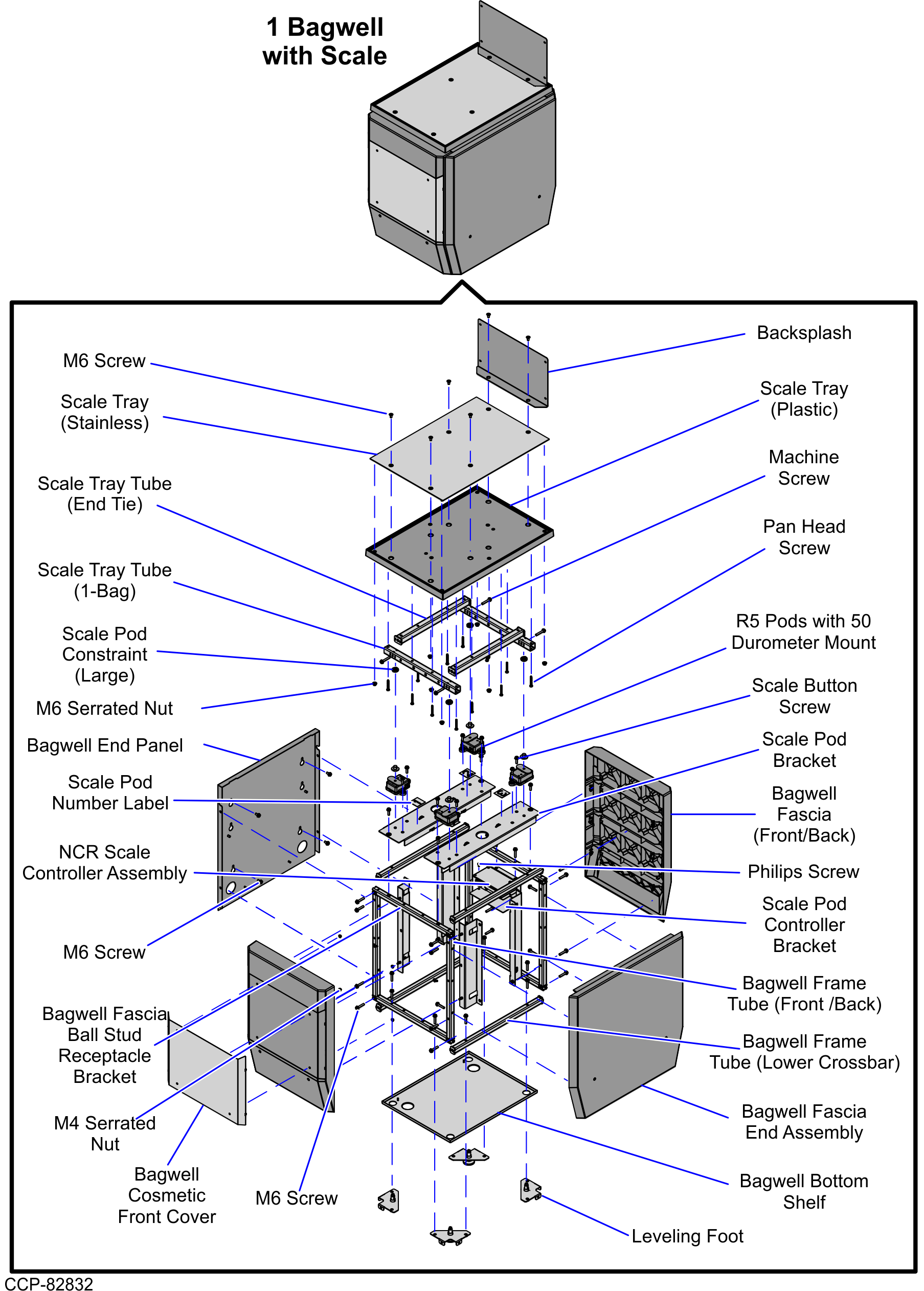

7371-K001 1 Bagwell (with Scale)
This publication provides procedures for installing the 7371-K001 1 Bagwell (with Scale) to the following NCR Voyix Self-Checkout units:
- 7371 NCR Voyix SCO Hardware
- 7372 7372 NCR Voyix SCONote
For the 7372 7372 NCR Voyix SCO, ensure that the Bagwell Spacer is installed prior to the Bagwell installation. To install the Bagwell Spacer, refer to the 7372-K001 Bagwell Spacer (Card Only) Kit Instructions.
The NCR Voyix Self-Checkout units with a Bagging Area (Bagwell) Module can be configured for either Left-hand (LH) orientation or Right-hand (RH) orientation, which refers to the direction customers scan and bag items.
- Left-hand (LH) orientation—Customers scan from left to right.
- Right-hand (RH) orientation—Customers scan from right to left.
The orientation of the unit is determined by the position of the Lower Core (Cabinet) Module in relation to the Bagging Area (Bagwell) Module.
The Left-hand (LH) orientation has the unit positioned on the left side of the Bagwell.
Kit Contents
| Part | Part Number | Description |
|---|---|---|
| 497-0533873 | 7371-K001 Bagwell with Scale | |
| 006-8615068 | Screw - M4 X 8Mm, .7Mm Pitch, Phillips Pan, Sems, Machined 18-8 SST (2 Pcs) |
| 009-0006598 | Screws M6 X 20 (12 Pcs) |
| 006-8628550 | Screw - Torx Pan Head Thread-Forming, #10 X 1.5" Long (12 Pcs) |
| 006-8628595 | Metric Screw Machine, Hex Head - M6 X 30 mm (30 pcs) |
| 007-7022141 | Screw Ma Flat Poz M6 (6 pcs) |
| 009-0006599 | Screw Hex M6 X 12 Mc Comb (4 pcs) |
| 009-0007087 | Serrated Nut-Self Locking (Hex,M4,4.2) (4 pcs) |
| 009-0007088 | Serrated Nut-Self Locking (Hex,M6,6.0) (8 pcs) |
| 497-0458863 | Cable - Ethernet (4 pcs) |
| 497-0468420 | Assembly - NCR Scale Controller |
| 497-0514037 | R 5 Pods With 50 Durometer Mount, Polyimide Strain Gauge Backing (4 pcs) |
| 497-0534678 | Bagwell, Scale Pod, Controller, Bracket |
| 497-0532697 | Bagwell, Scale Tray, Plastic |
| 497-0532704 | Bagwell, Scale Tray, Stainless |
| 497-0532744 | Scale Button Screw, 1/4-20, Zn Chromate (4 pcs) |
| 497-0532756 | Backsplash, Scale Tray, 1 Bag |
| 497-0534677 | Bagwell, SCO, End Panel |
| 497-0533463 | Bagwell, Shelf, Bottom |
| 497-0534566 | Assembly, Bagwell Fascia End |
| 497-0534672 | Bagwell, Fascia, Ball Stud Receptacle Bracket (4 pcs) |
| 497-0534674 | Bagwell, Scale Pod, Bracket (2 pcs) |
| 497-0533942 | Scale Pod Constraint, Large (4 pcs) |
| 497-0534373 | Scale Tray Tube, 1-Bag (2 pcs) |
| 497-0534056 | Scale Tray Tube, End Tie (2 pcs) |
| 497-0534668 | Bagwell, Frame, Tube, Front/Back (2 pcs) |
| 497-0534218 | Bagwell, Frame, Tube, Cross Bar, Lower (4 pcs) |
| 497-0534265 | Bagwell, Label, Scale Pod Number |
| 497-0534266 | Bagwell, Fascia, Front/Back (2 pcs) |
| 497-0534302 | Bagwell, Gusset, Leveling Foot (4 pcs) |
| 795-0297535 | Front Cover, Cosmetic, Bagwell (Mid-Impact Silver) |
| 497-0508356 | Cable - (Black) 2.4M USB +Power (12V) to 2X4 Latch-N-Lok |
| 006-8628641 | Metric Machine Screw, Hex Head, M6 X 50 mm (4 pcs) |
| 497-0534482 | Hole Cover Label - Impact Black (Blk7) |
| 006-8626376 | Wing Nut - M4X0.7Mm - Zinc-Plated Steel (4 Pcs) |
 | 006-8628706 | Zinc-Plated Steel Split Lock Washer - M6 (32 Pcs) |
| * | 497-0423108 | Instructions Kit (Reference Sheet) |
* Items marked with an asterisk are not called out on the image.
