Routing the cables: 7372 NCR Voyix SCO Kiosk

To route the cables, follow these steps:

1. Open the Pedestal Cabinet by doing the following:

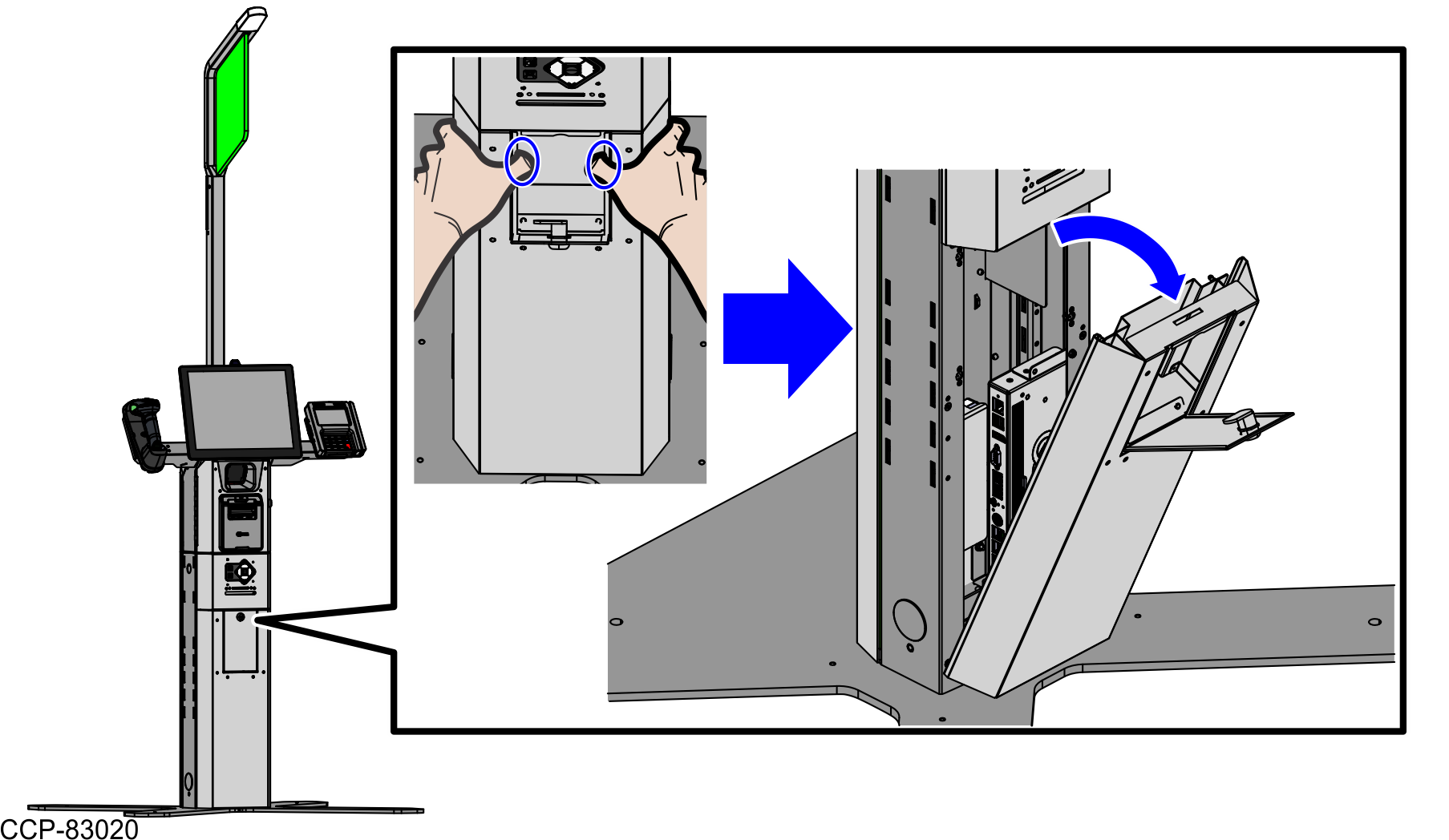

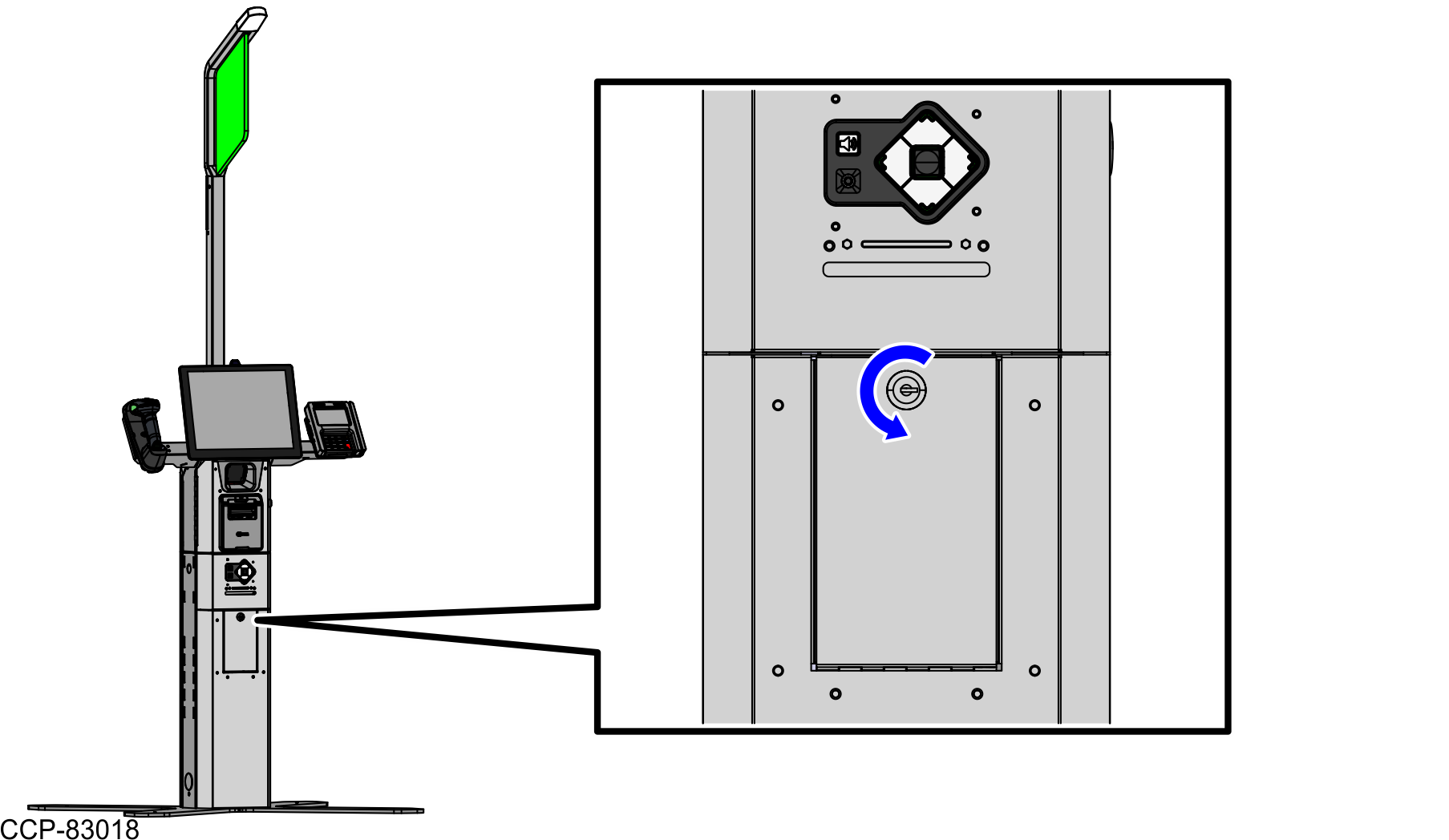

   1. Unlock the Pedestal Door, as shown in the image below.



   2. Hold the finger access hole at the top of the Pedestal Door and then slowly pull the door to disengage from the Pedestal Cabinet.



2. Connect the following cables to the UPS
   • UPS Power Cable (497-0441791)
   • System Power Supply Cable (497-0420134)
   • USB Type B end of the USB Cable (006-8628697)
   • Note

     Tie the excess USB Cable inside the Bagwell using cable ties.

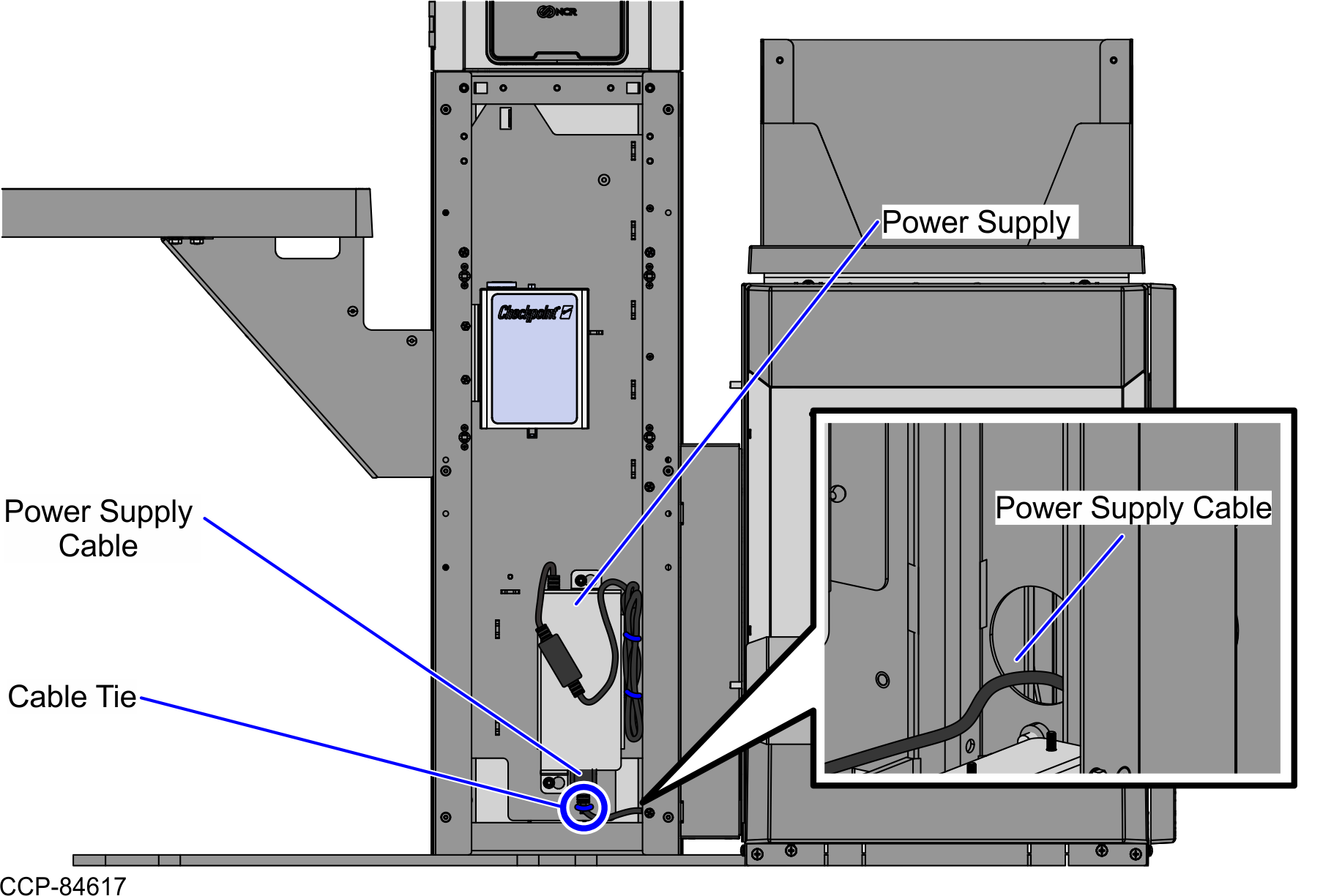

3. From the UPS, route the Power Supply Cable through the cable access hole and connect it to the Power Supply. Secure it using a cable tie.

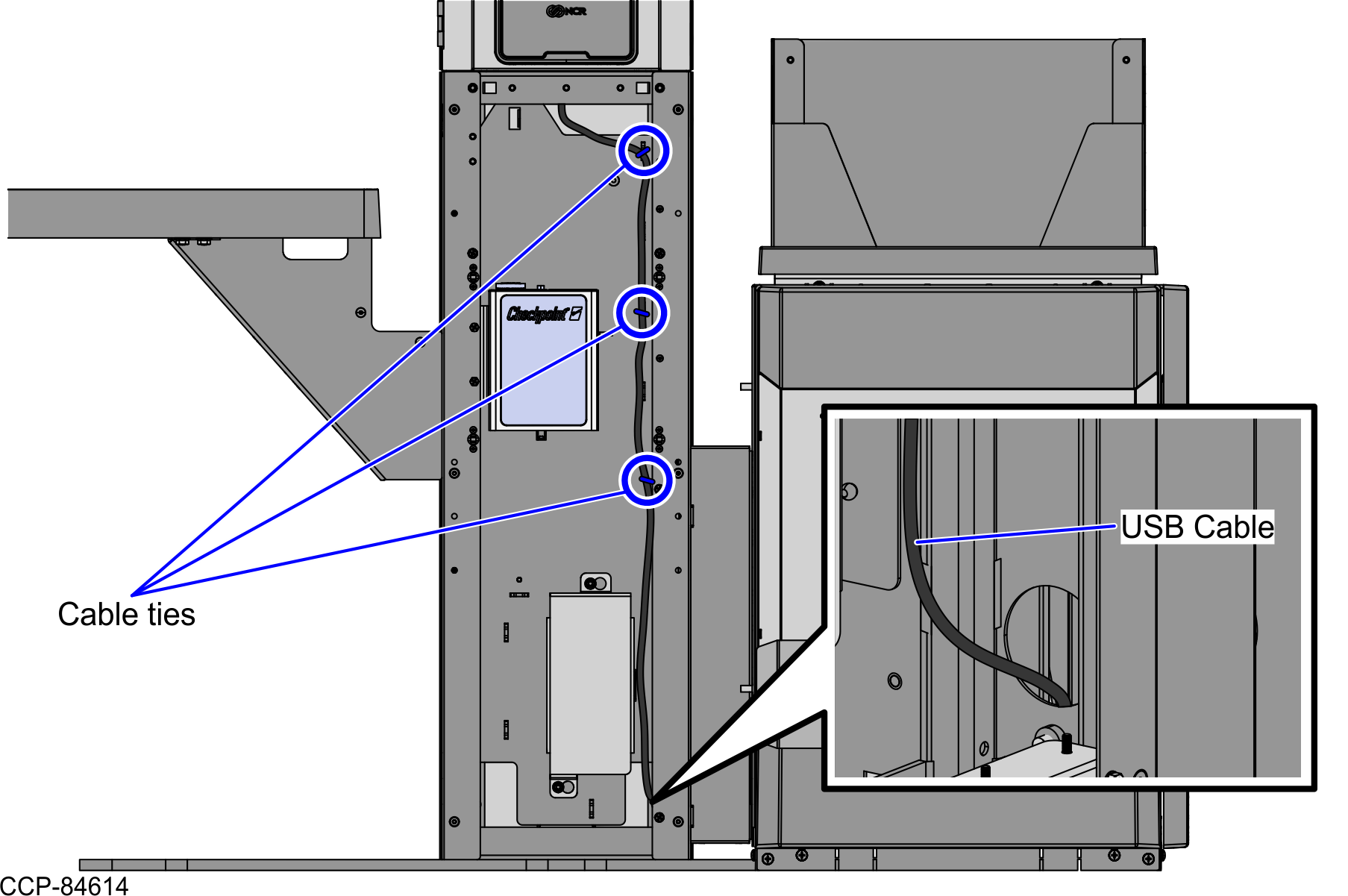

4. From the UPS, route the USB Cable through the cable access hole and up the Cabinet. Secure it with three (3) cable ties.

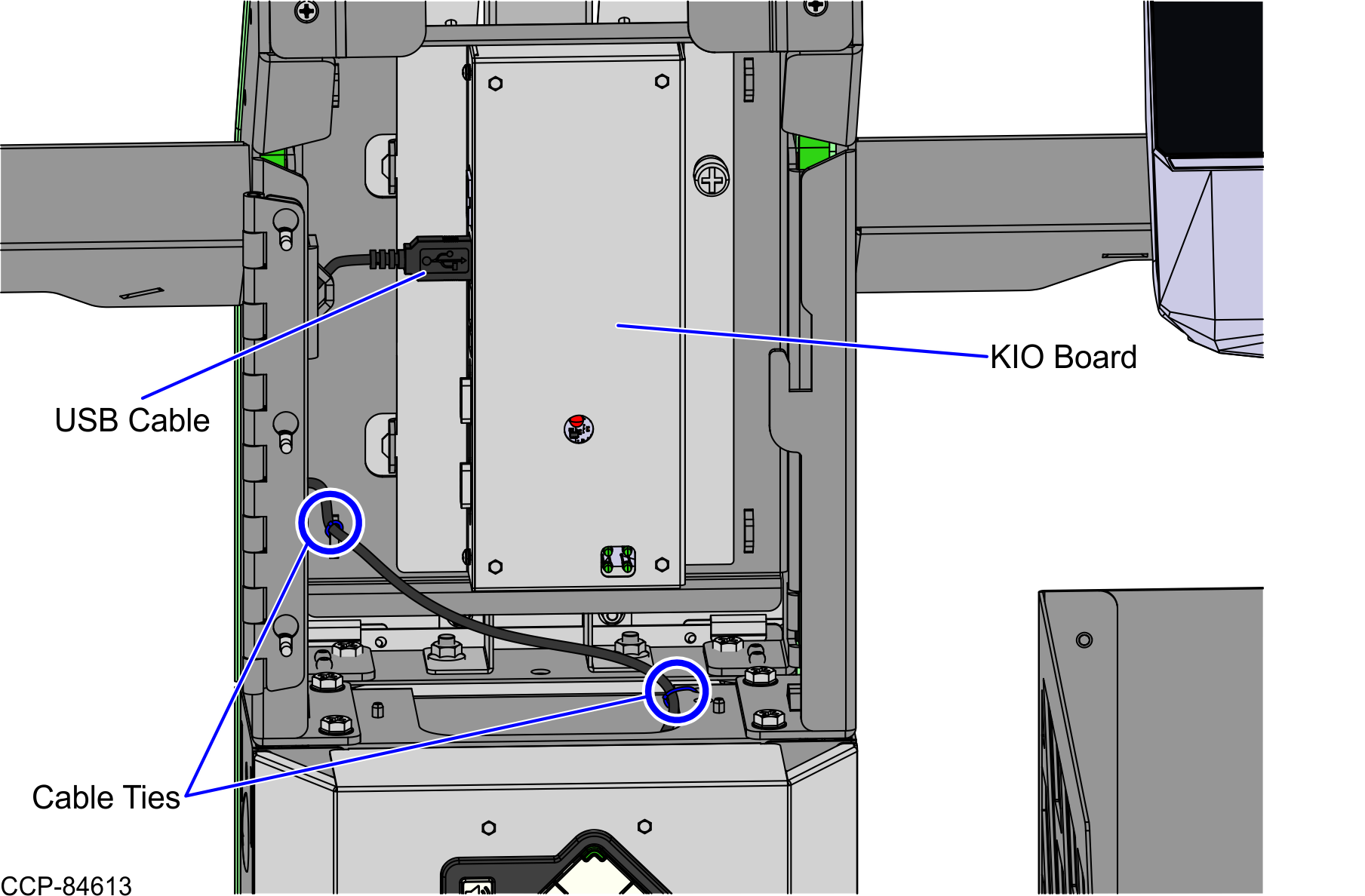

5. Connect the USB Type A end of the USB Cable to Port B of the KIO Board and secure it with three (2) cable ties.



6. Detach the Sensormatic® Controller Enclosure by removing three (3) screws, as shown in the image below.
   Note

   Ensure that the Sensormatic® Controller is unplugged from the AC outlet.



7. Route the UPS Power Cable to the Cabinet and out through the rear exit hole.



8. Attach the Sensormatic® Controller Enclosure on the pedestal using three (3) screws.
