Routing the cables: 7371 NCR Voyix SCO Hardware

To route the cables, follow these steps:

  1. Connect the following cables to the UPS before installing it to the unit:
    • UPS Power Cable (497-0441791)
    • System Power Supply Cable (497-0420134)
    • USB Type B end of the USB Cable (006-8628697)

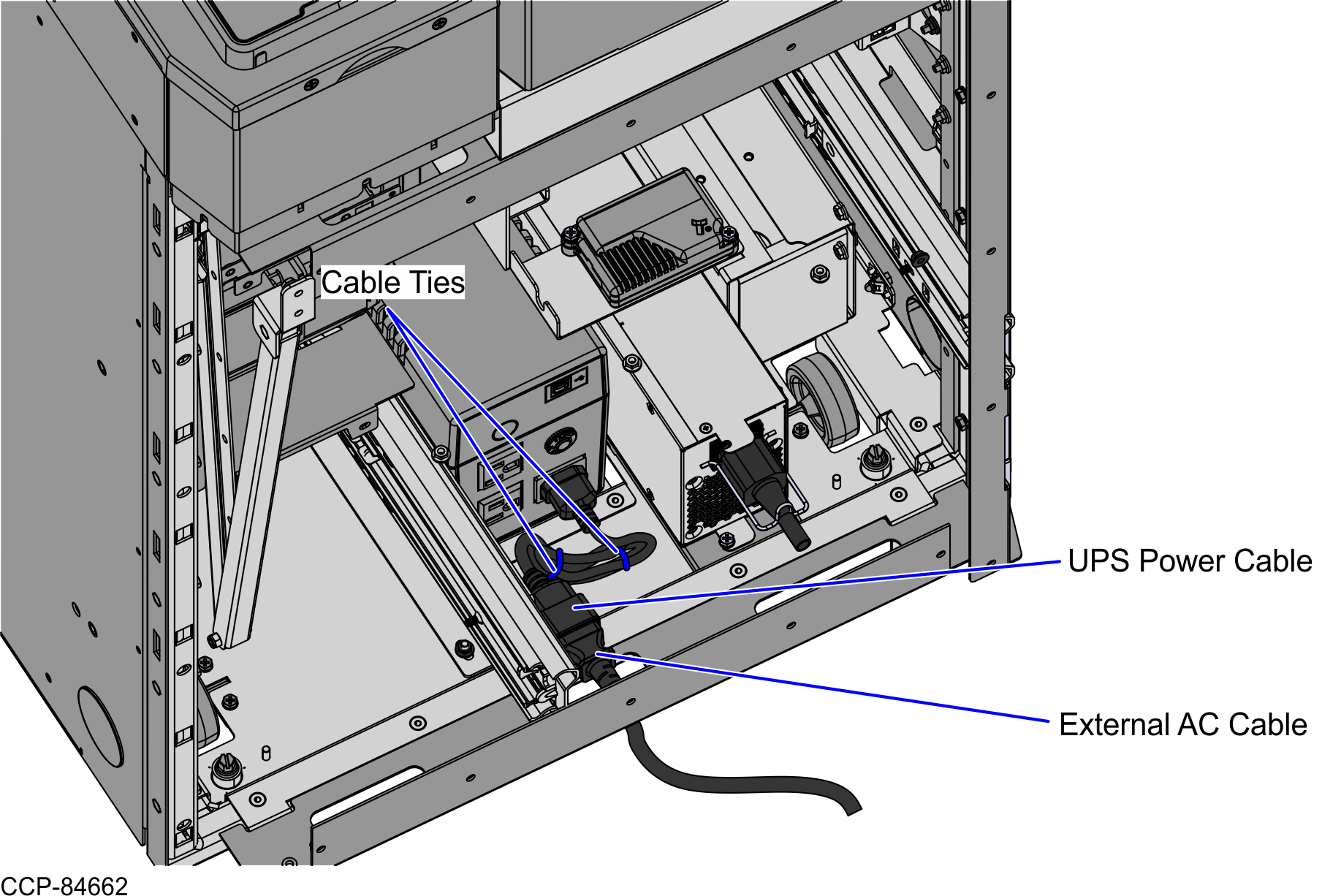

  2. Connect the UPS Power cable to the external AC Power Cable
    Note

    Bundle the excess cable using two (2) cable ties.

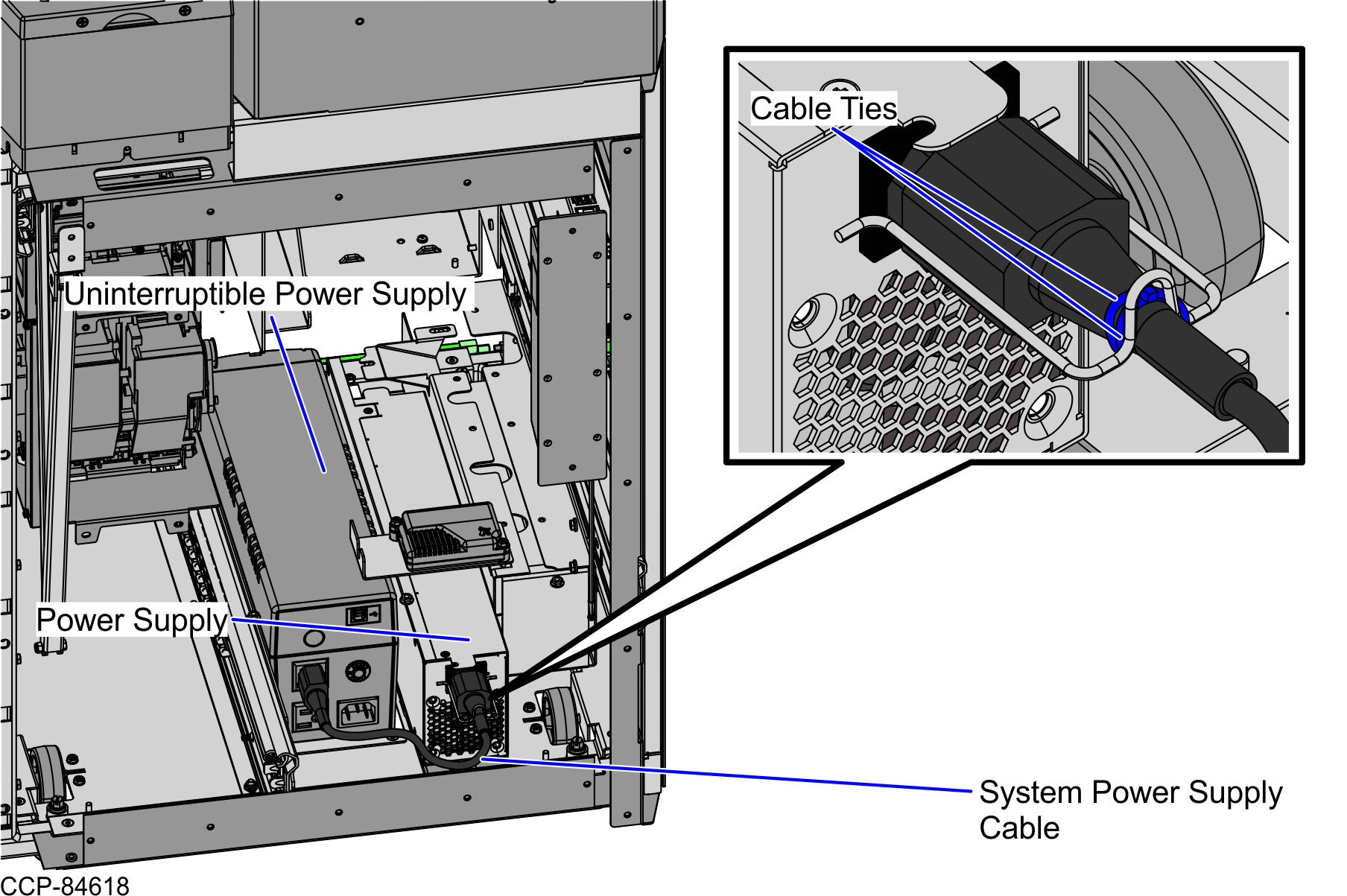

  3. Connect the System Power Supply Cable to the Power Supply and secure it to the metal retention clamp using two (2) cable ties .

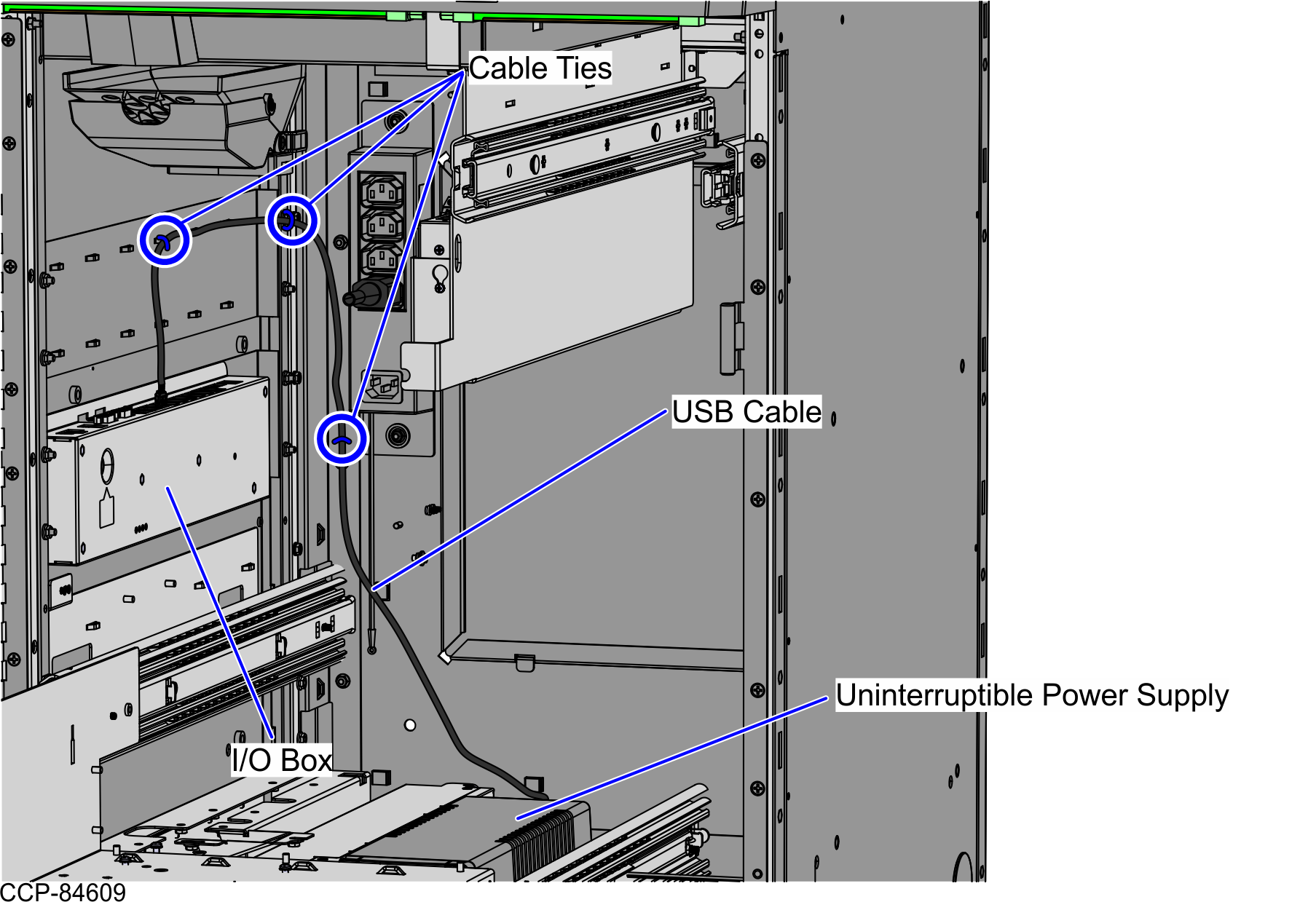

  4.  USB Type A end of the USB Cable to Port L of the and secure it with three (3) cable ties.
    Note

    Do not bundle the USB Cable with the AC cables.
