Installing the PIN Pad Tower Arm

To install the PIN Pad Tower Arm, follow these steps:

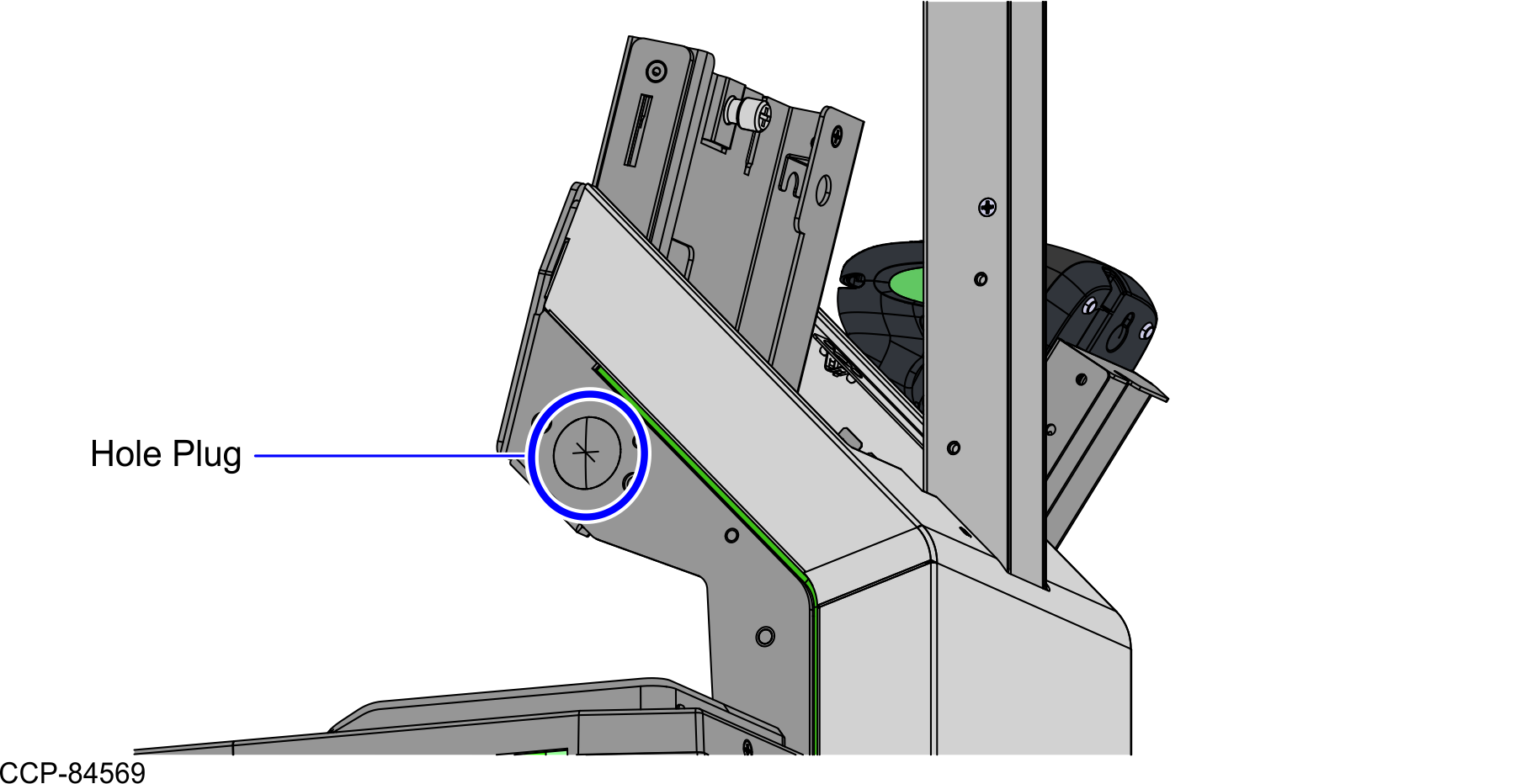

1. Remove the Hole Plug from the Tower Frame using a flat object.



2. Attach the PIN Pad Arm to the Tower Cabinet, using two (2) screws, as shown in the image below.
