Removing the PIN Pad Arm

To remove the PIN Pad Arm, follow these steps:

1. Remove the PIN Pad device.
   Note

   For more information on removing the PIN Pad devices, refer to 7371 SCO Full Function Hardware Service Guide (BCC5-0000-5632).

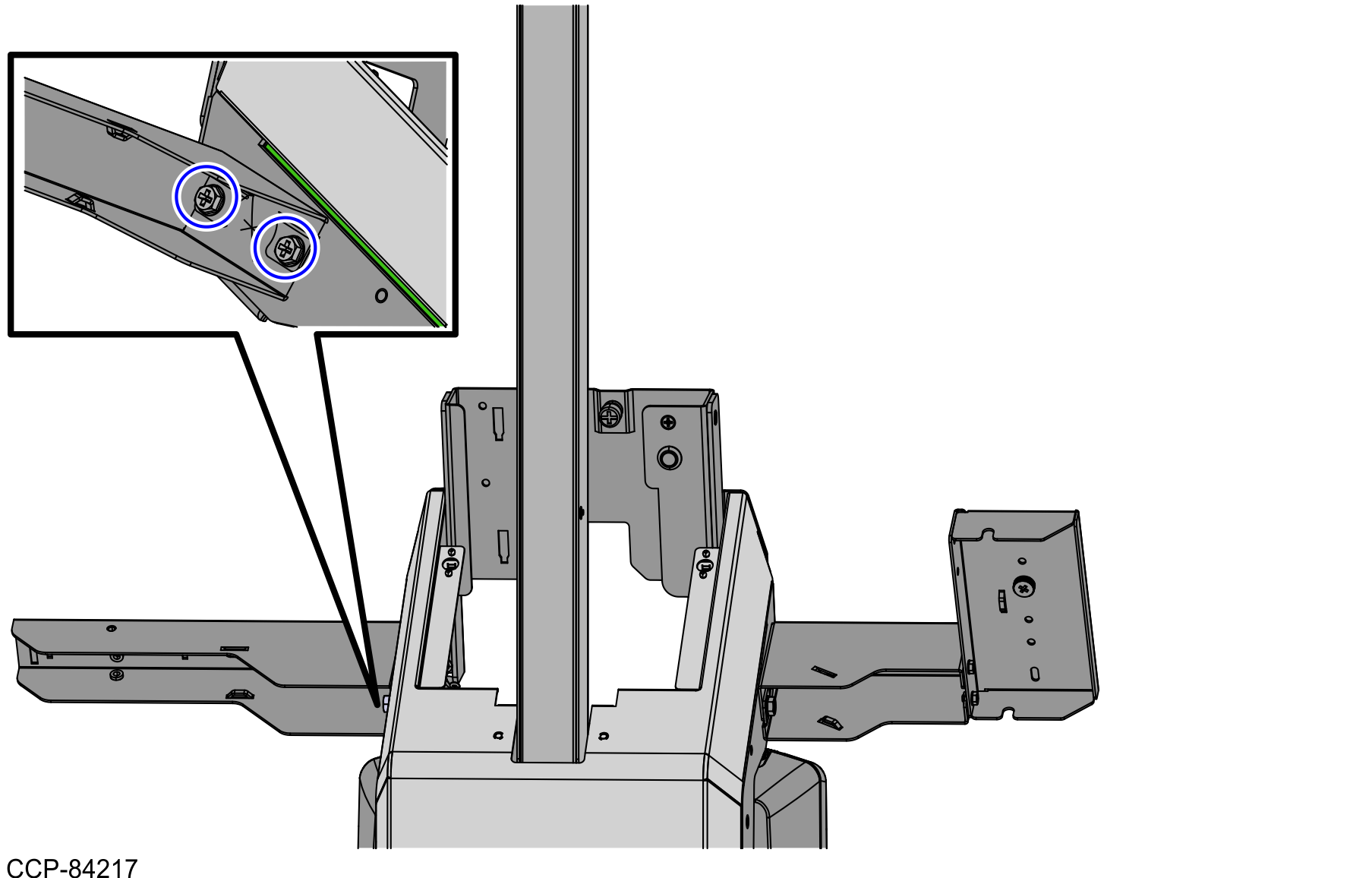

2. At the back of the PIN Pad Arm, remove the two (2) screws securing the PIN Pad Arm to the Scanner Adapter, as shown in the image below.
