Installing the PIN Pad device (Ingenico Lane 3000/5000/7000)

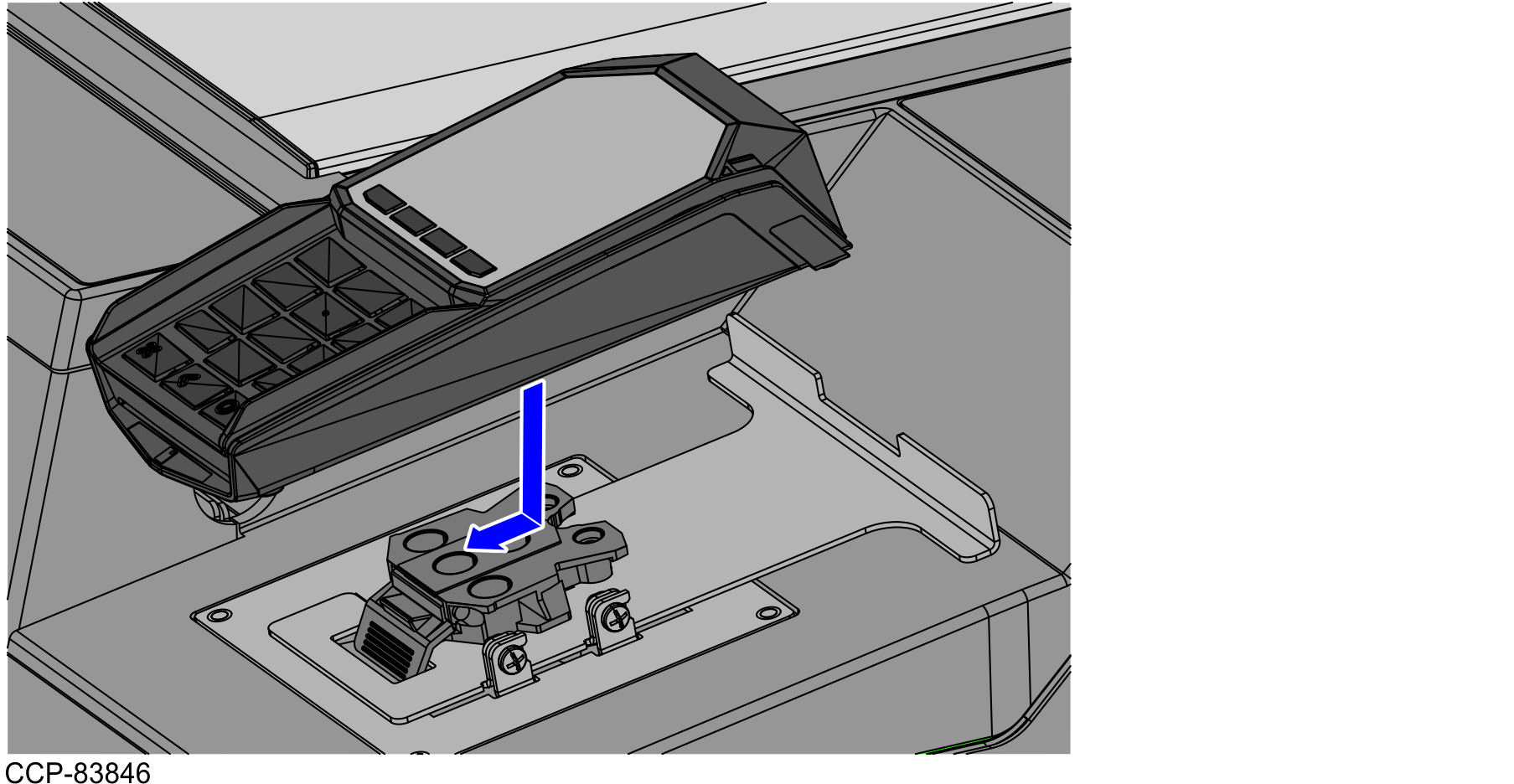

To install the PIN Pad device, attach the PIN Pad device to the Front Mount Multiclip, as shown in the image below.

Note

The Ingenico Lane 3000/5000/7000 PIN Pad device is not included in the 7371-K352 Front Mount Multiclip (Ingenico Lane 3000/5000/7000) Kit. For more information, contact an NCR Customer Service Representative.
