Removing the Handheld Scanner base dock

To remove the Handheld Scanner base dock, follow these steps:

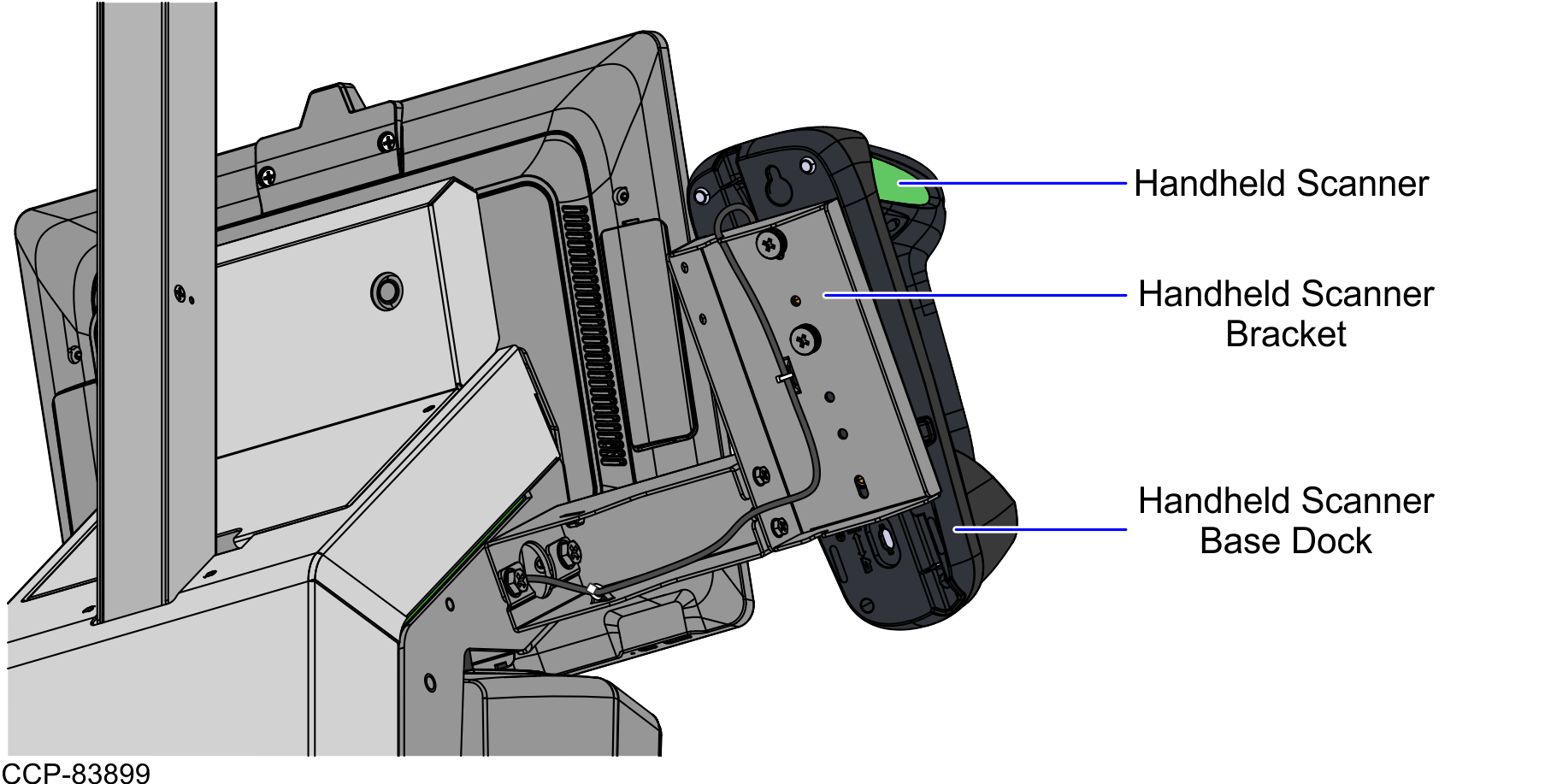

1. Remove the Handheld Scanner from the base dock.

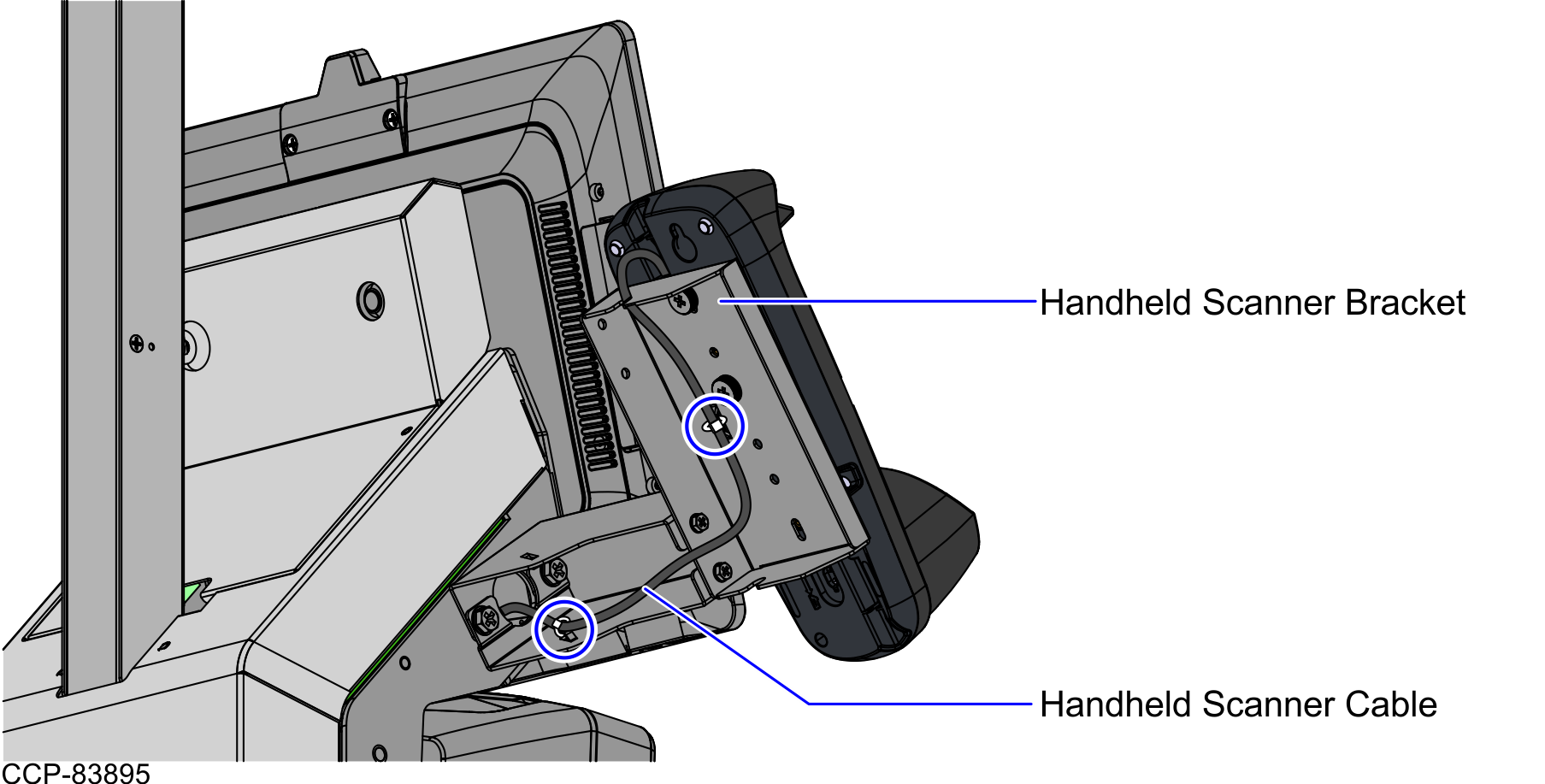

2. Remove the cable ties to detach the cable from the bracket.

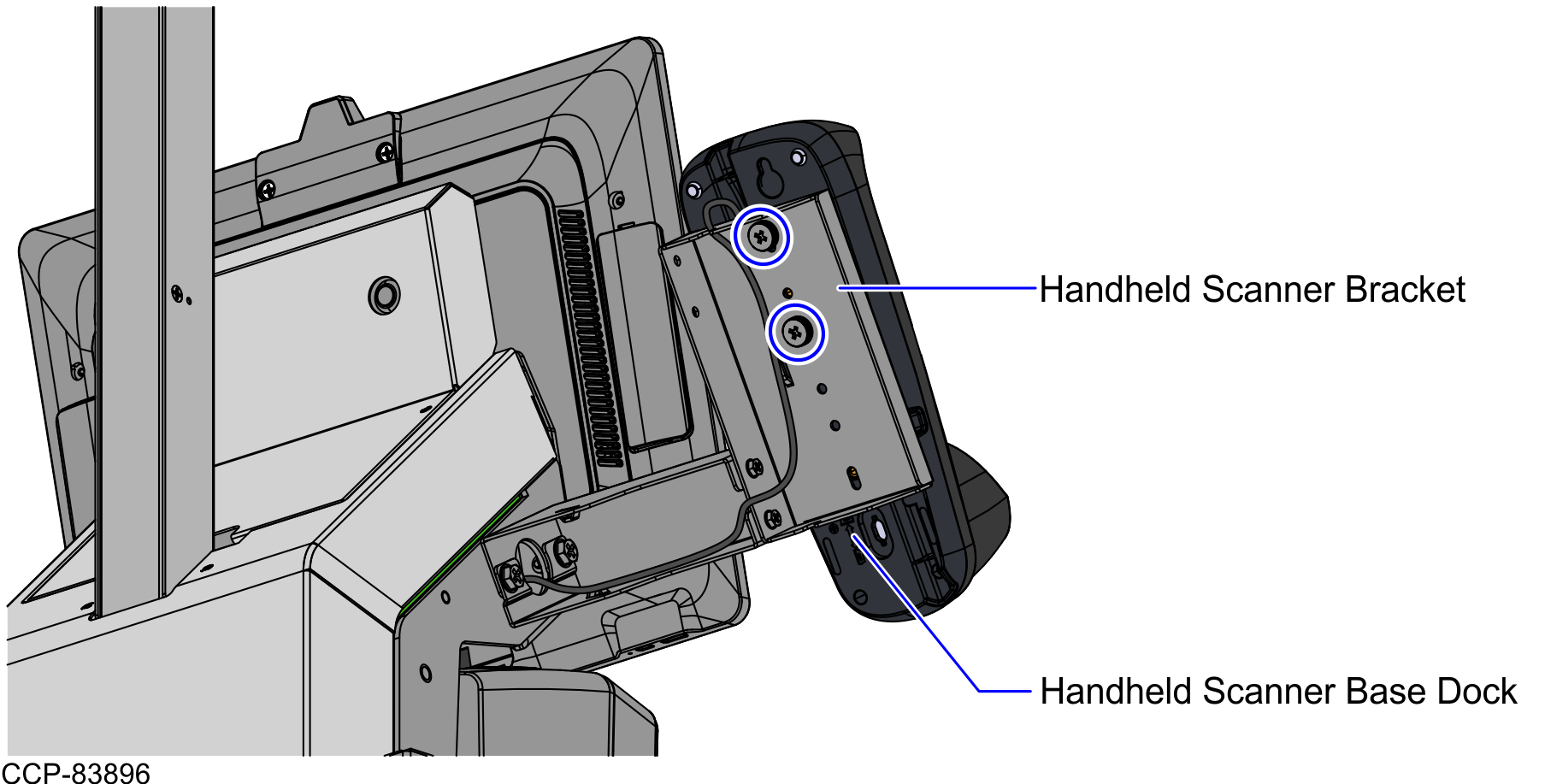

3. Remove two (2) screws to detach the base dock from the bracket.



4. Disconnect the Handheld Scanner cable from the base dock.
