Installing the Bagwell Expansion Frame

To install the Bagwell Expansion Frame, follow these steps:

1. Remove the Front and Back Panels from the Bagwell Expansion Frame. For more information, refer to Removing the Bagwell Panels (Front and Back).

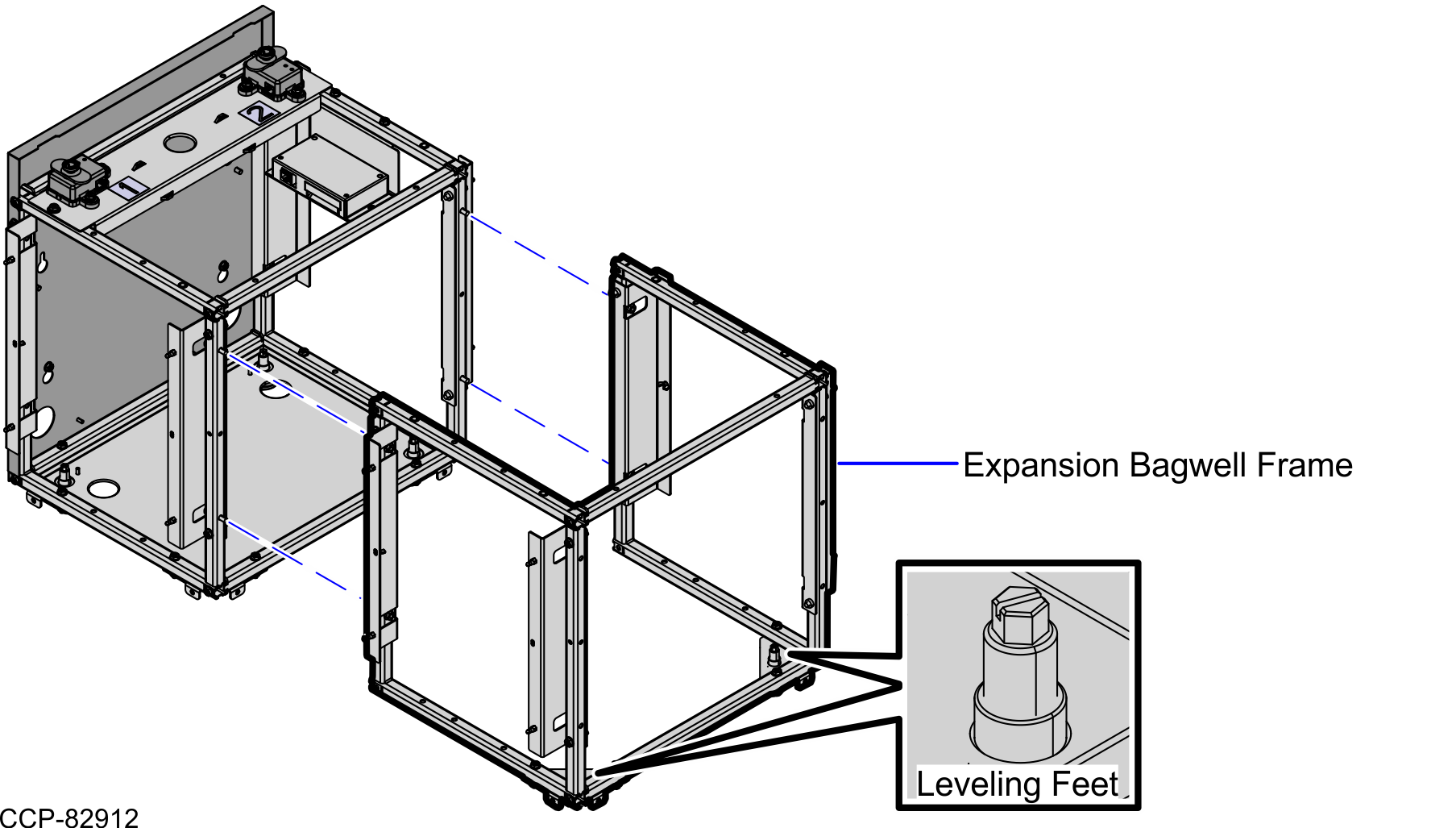

1. Align and connect the mounting holes of the existing Bagwell Frame and Bagwell Expansion Frame.
   Note

   Adjust the Leveling Feet of the Bagwell Expansion Frame, as necessary.

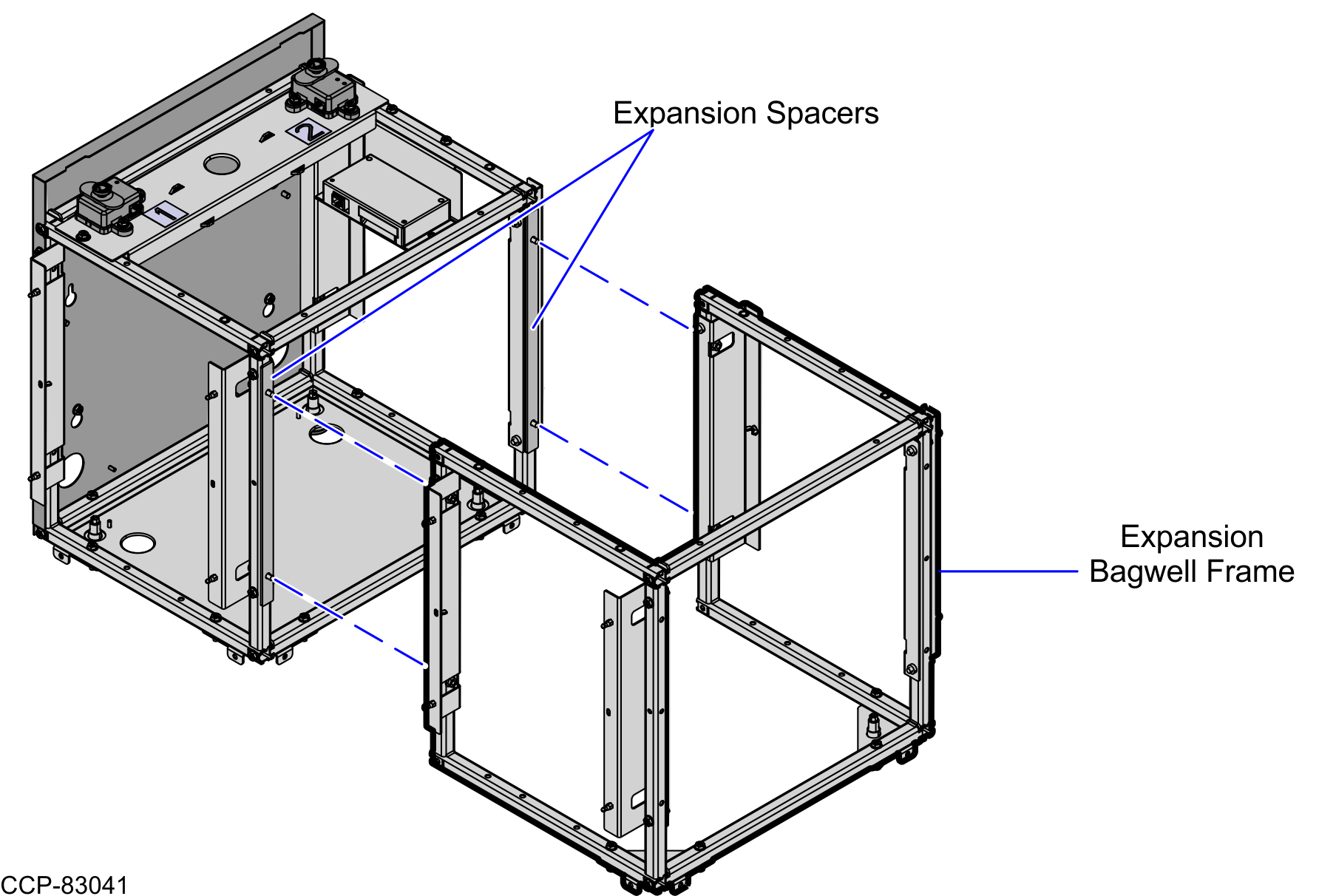

2. Insert the Bagwell Expansion Spacers between the Bagwell Frame junctions, as shown in the image below.



   Example

   The image below shows the location of each Bagwell Expansion Spacer between the Bagwell Frame junctions for illustration only.

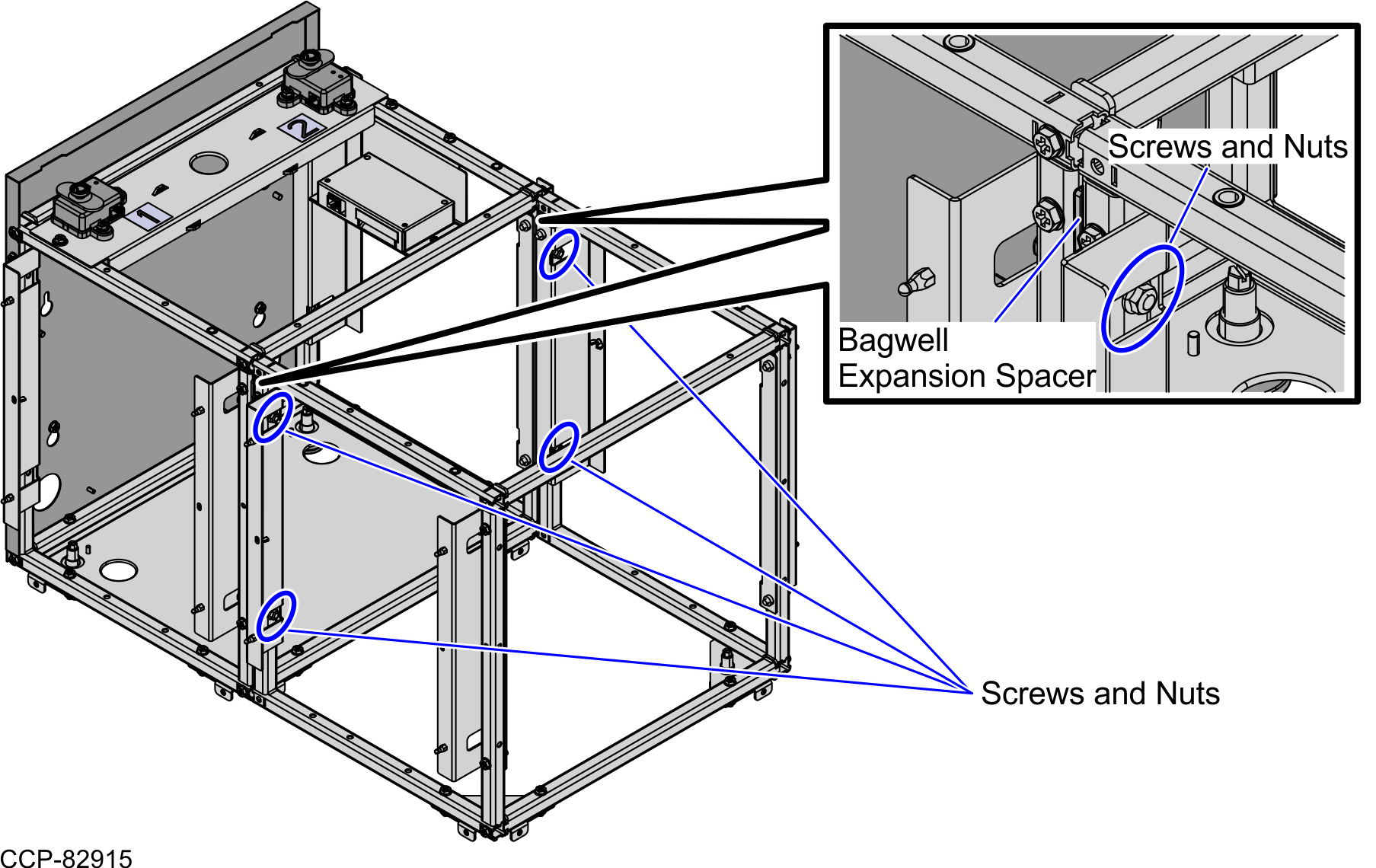

1. Secure each Bagwell junction with the Spacers in between using four (4) screws and nuts, as shown in the image below.
