7360-K897 7895/7896 Scanner Shroud (7360 R6-C)
This publication provides procedures for installing the 7360-K897 7895/7896 Scanner Shroud kit to either the the NCR Voyix 7896 Scanner/Scale or NCR Voyix 7895 Scanner/Scale that is configured in any of the following 7360 R6-C Self-Checkout units:
NCR FastLane SelfServ Checkout (7360) R6-C Full Function (Fixed)
NCR FastLane SelfServ Checkout (7360) R6-C Card Only

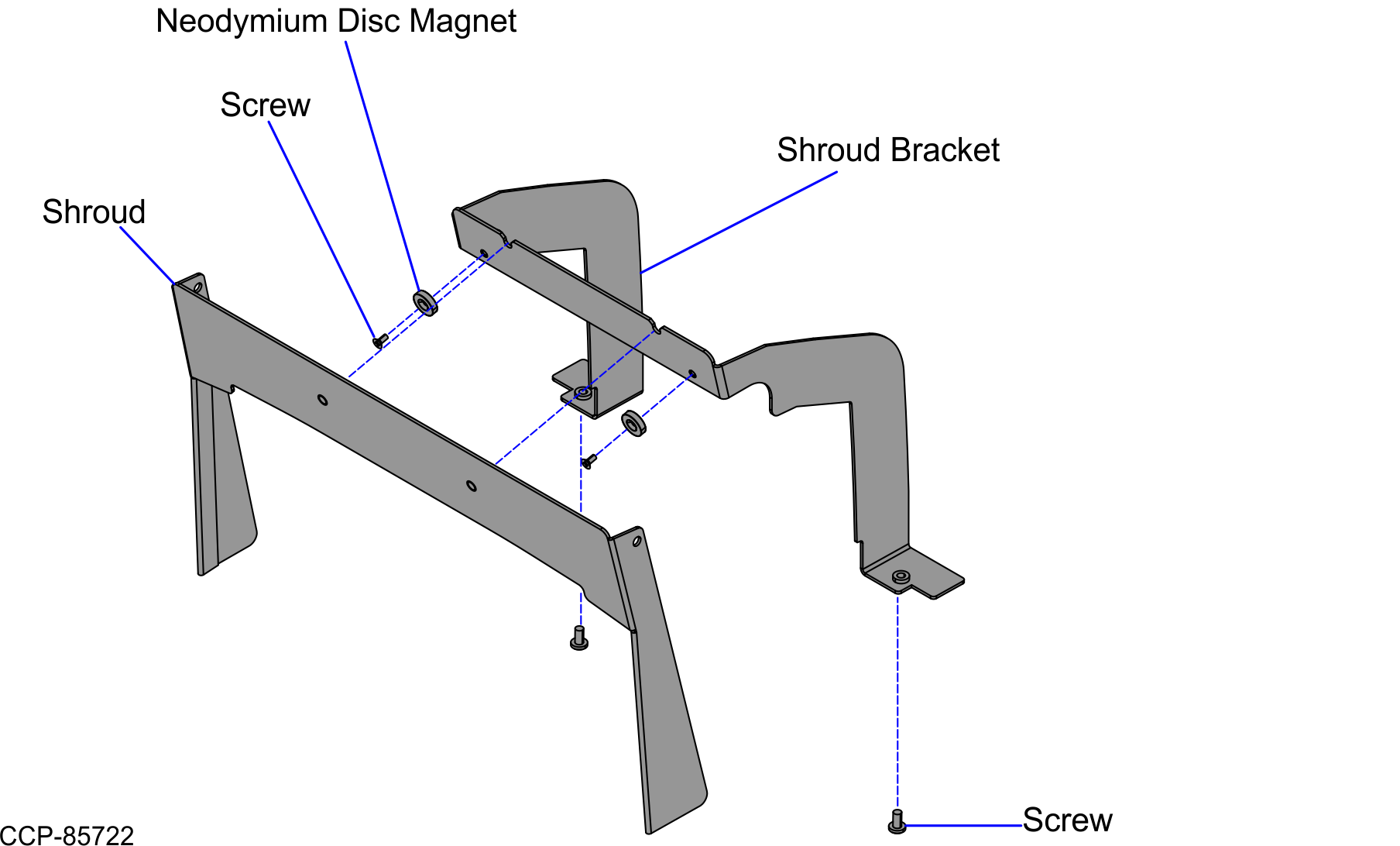

Kit Contents
| Part Number | Description |
|---|---|
| 497-0538583 | 7360-K897 7895/7896 Metal Shroud (7360 R6-C) |
| 006-8606423 | Screw - M3X.5Px6L Flat Hd Phil Mach, Zinc-Pltd Stl (2 pcs) |
| 006-8616226 | Neodymium Disc Magnet, Countersunk Hole (2 pcs) |
| 006-8623674 | Screw - M4 X 0.7P X 8 Mm, Machine, Phillips Panhead (2 pcs) |
| 497-0538298 | Shroud, Metal, R6, 7895/7896 |
| 497-0538299 | Shroud, Bracket, R6, 7895/7896 |
