7360-K890 NCR 7895 Scanner/Scale Upgrade
The NCR 7895 Scanner/Scale reads 1D, 2D, Digimarc, and mobile bar codes in all orientations. Bar code data is transmitted to a Point-of-Sale (POS) host through USB, RS‑232, or RS‑485 connection. For more information, refer to the NCR 7895 Scanner/Scale User Documentation (BCC5-0000-5511).
This publication provides procedures for upgrading an NCR FastLane SelfServ™ Checkout (7360) unit—that is configured with an NCR RealScan 79e (7879) Scanner/Scale—with an NCR 7895 Scanner/Scale Scanner.
Kit Contents
| Part Number | Description |
|---|---|
| 497-0532334 | 7895 Upgrade Kit for 7360 (Fixed Config Only) |

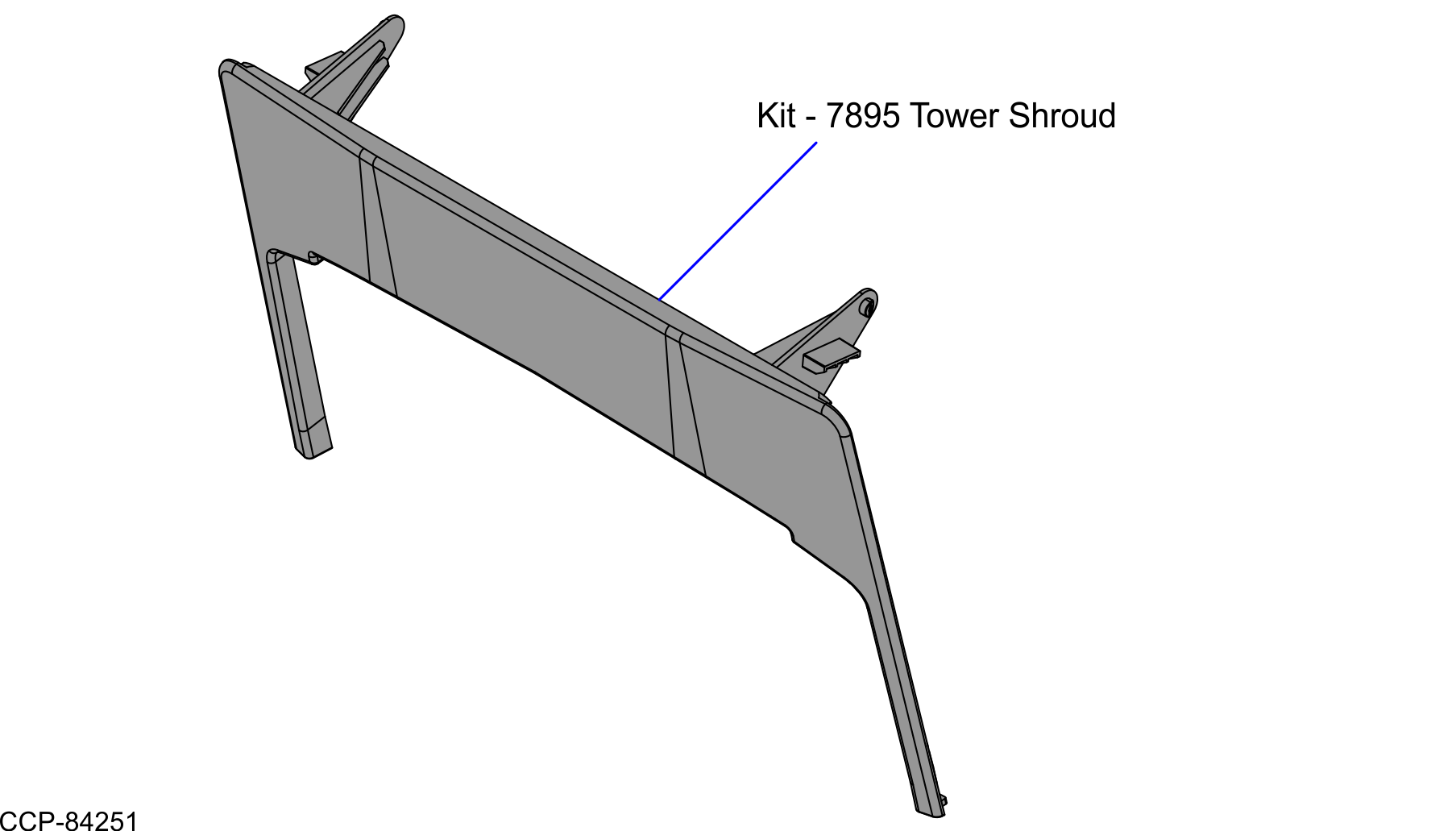

| 497-0529905 | KIT - 7895 Tower Shroud |
| 007-9714414 | Tie Strap Plain 5.60LG (5 pcs) |
| 497-0529515 | Cable - USB+PWR 12V to Modular RJ50 (2.13m) with Flag Label |
| 497-0529516 | Cable - Scanner Color Camera USB3 Type C to Type A, (2m) |
| * 497-0423108 | Instructions Kit (Reference Sheet) |
* Items marked with an asterisk are not called out on the image.
