7360-K783 Sliding Pack – Accessory Storage Unit
This kit contains accessory storage unit component for sliding pack module in an NCR Voyix FastLane SelfServ™ Checkout (7360) unit.

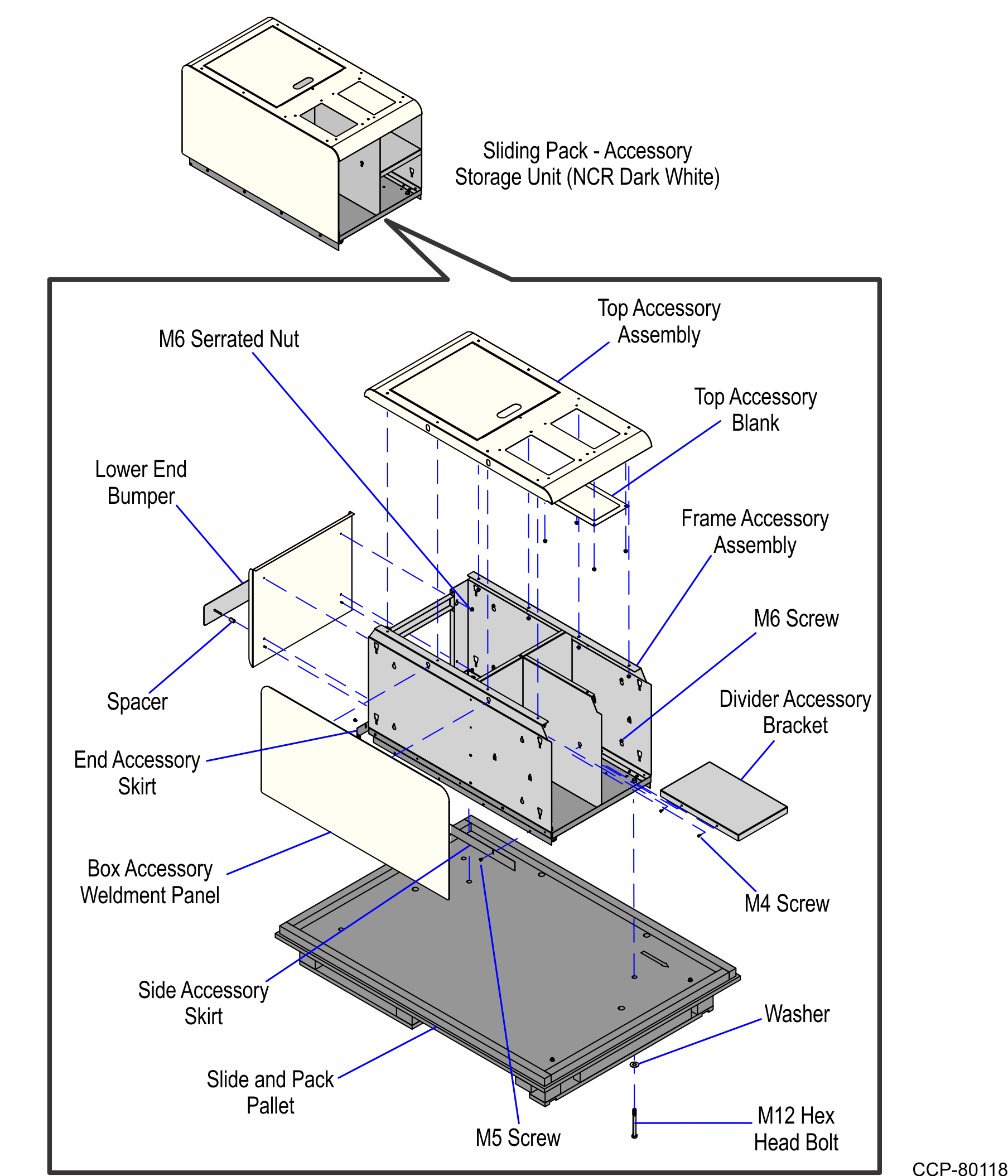

Kit Contents
Part Number | Description | |
---|---|---|
497-0518675 | 7360-K783 Sliding Pack - Accessory Storage Unit (NCR Dark White) Kit | |
006-8623181 | Screw – M5 x 0.80, 8 mm Length, Machine, Pan Head, Black Oxide (8 pcs) | |
009-0006593 | Screws M4 x 10 (2 pcs) | |
009-0006599 | Screw Hex M6 x 12 MC COMB (4 pcs) | |
009-0007088 | Serrated Nut - Self Locking (M6, 6.0) (22 pcs) | |
497-0506263 | Black Nylon Spacer 12.7 mm OD x 6.6 mm ID x 22.23 mm L (2 pcs) | |
497-0513312 | Assembly - Frame - Accessory - R6 | |
497-0515114 | Bracket - Divider - Accessory - R6 | |
497-0515120 | Skirt - End - Accessory - R6 | |
497-0515121 | Skirt - Side - Accessory - R6 | |
497-0519707 | Bumper - Lower - End | |
795-0264901 | Panel - Outer - Bagwell (NCR Dark White) | |
795-0244601 | Weldment Panel - Box - Accessory (NCR Dark White) | |
795-0244701 | Assembly - Top - Accessory (NCR Dark White) | |
795-0245001 | Blank - Top - Accessory (NCR Dark White) | |
497-0526693 | Slide And Pack Pallet No Support Frame | |
006-8627393 | Bolt - Hex Head, M12 x 130 mm (2 pcs) | |
006-8611488 | Washer - Flat, 0.557 in Dd, 1.368 in OD, 0.086 in Thk (2 pcs) | |
* 497-0423108 | Instructions Kit (Reference Sheet) |
* Items marked with an asterisk are not called out on the image.
