7360-K495 1-Bag Bagwell Skirt (Narrow Core)
This publication provides procedures for installing a 1-Bag Bagwell Skirt (Narrow Core) to the NCR FastLane SelfServ™ Checkout 7360.

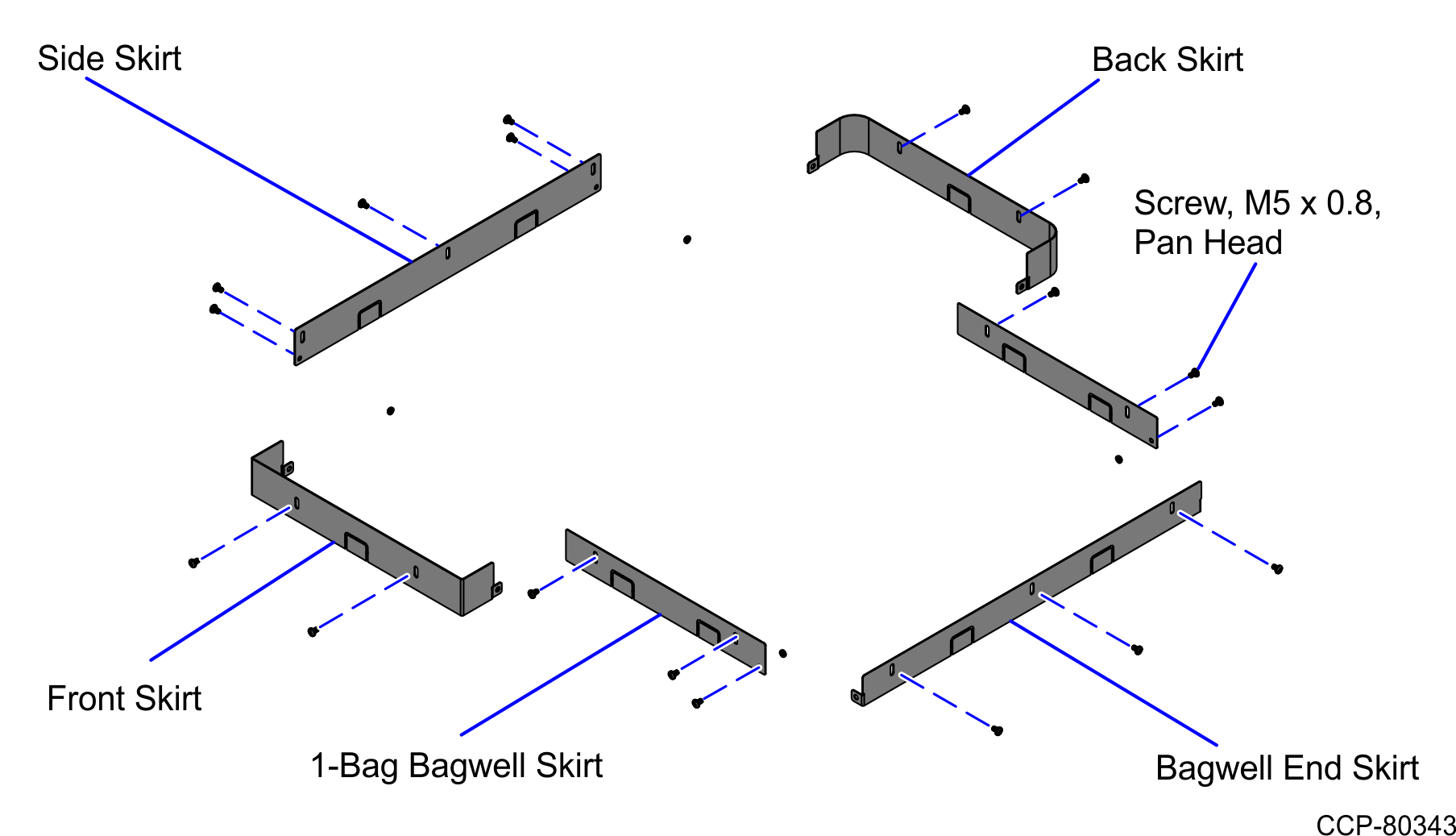

Kit Contents
| Part Number | Description | |
|---|---|---|
| 497-0531048 | 7360-K495 1-Bag Bagwell Skirt Narrow Core Kit | |
| 497-0512933 | Front Skirt R6 Narrow Core | |
| 497-0504566 | Side Skirt | |
| 497-0512934 | Rear Skirt R6 Narrow Core | |
| 497-0502844 | Skirt - 1-Bag Bagwell R6 (2 pcs) | |
| 497-0502854 | Skirt -1-Bag Bagwell R6 | |
| 006-8623181 | Screw - M5 X 0.8, 8mm, Machine, Pan Head, Black Oxide (18 pcs) | |
| * 497-0423108 | Kit Instructions (Reference Sheet) | |
* Items marked with an asterisk are not called out on the image.
