Installing PIN Pad Mount

Depending on the R6-C unit, refer to the following:

• Full Recycling (Fixed/Convertible) Unit
• Card Only Unit.

Full Recycling (Fixed/Convertible) Unit

To install the PIN Pad Mount on a Fixed or Convertible unit, follow these steps:

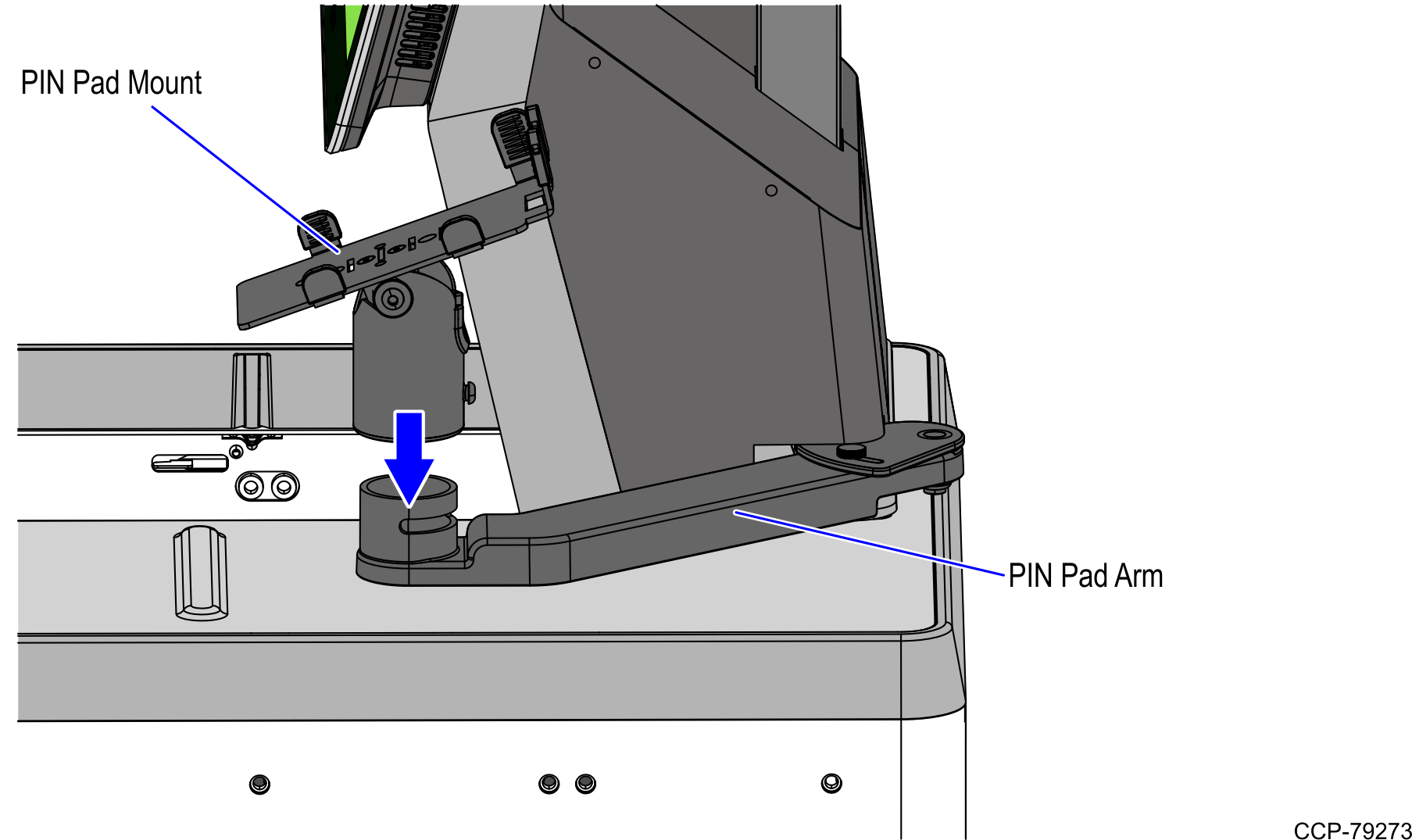

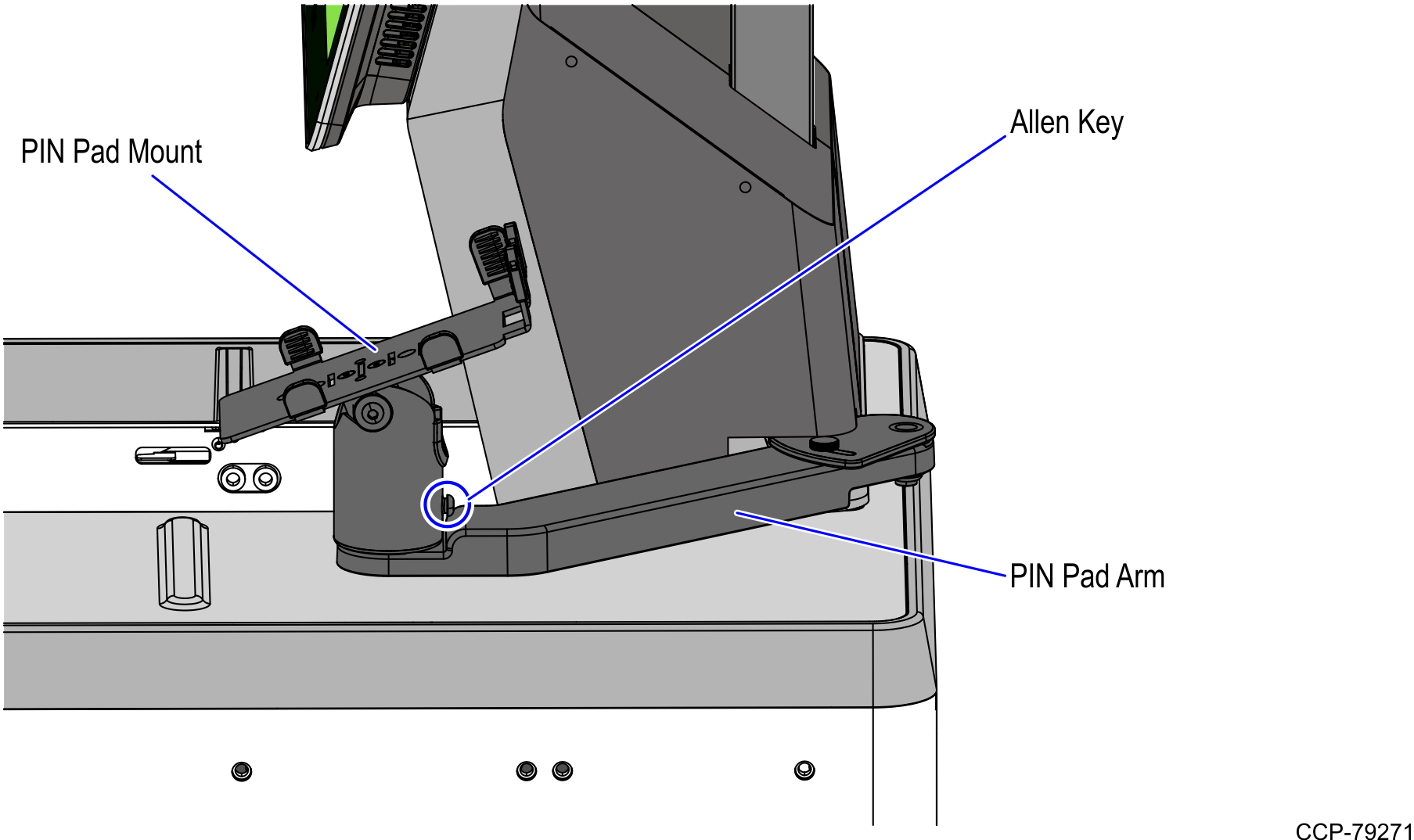

1. Attach the PIN Pad Mount to the PIN Pad Arm.

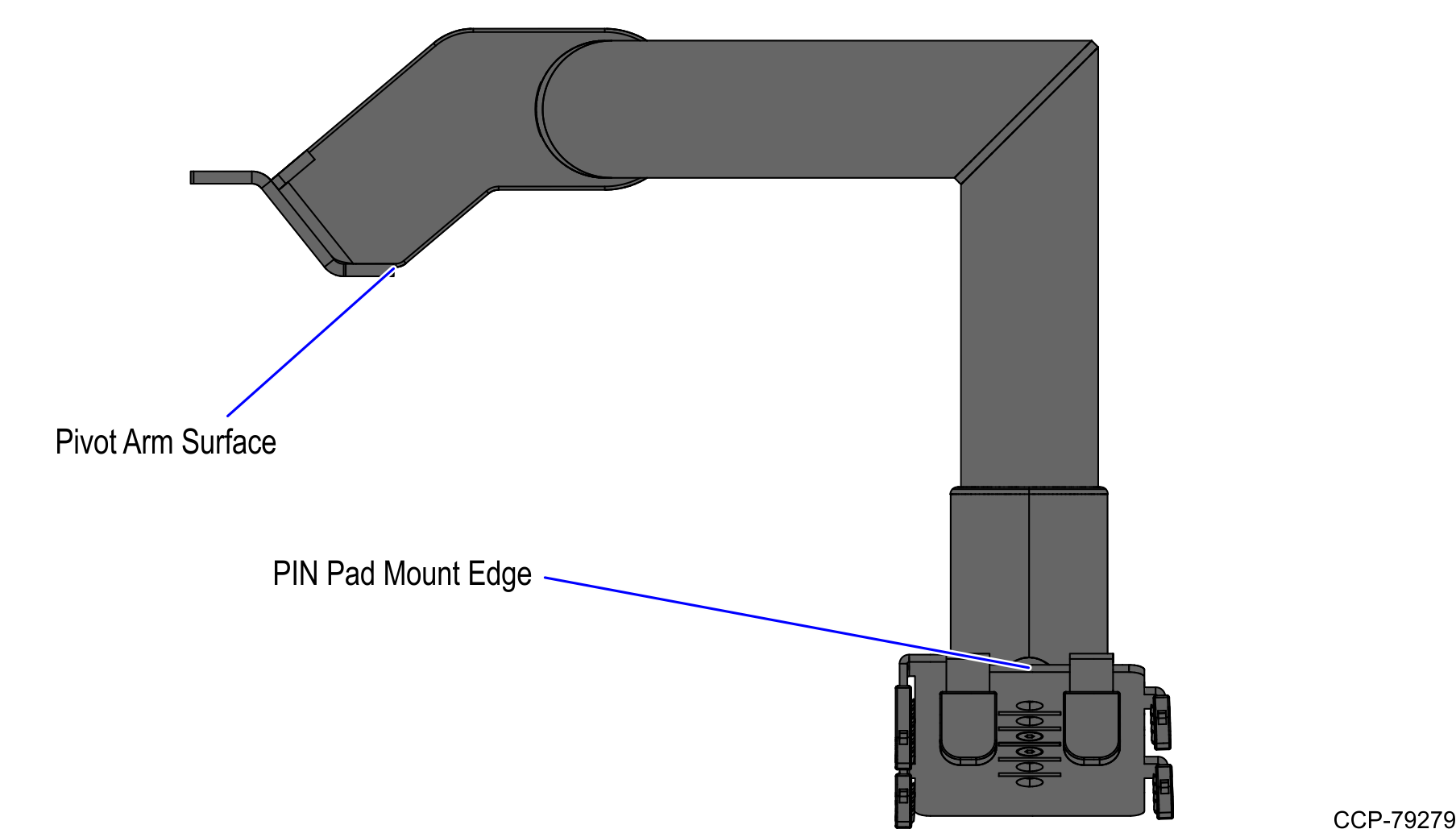

2. Position the PIN Pad Mount so that its edge is approximately parallel with the Pivot Arm Surface.

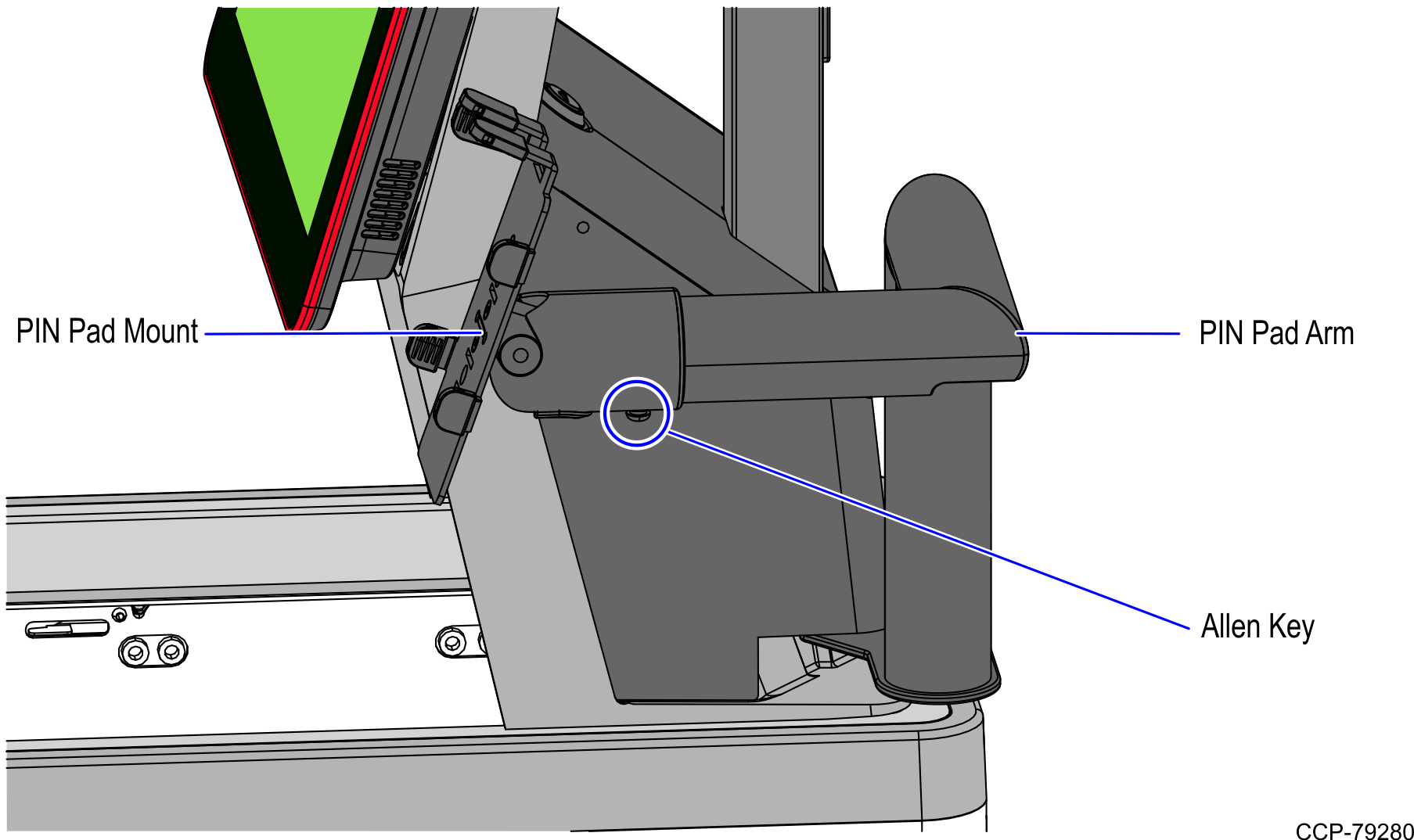

3. Fasten the PIN Pad Mount to the PIN Pad Arm using the Allen key.



Card Only Unit

To install the PIN Pad Mount on a Card Only unit, follow these steps:

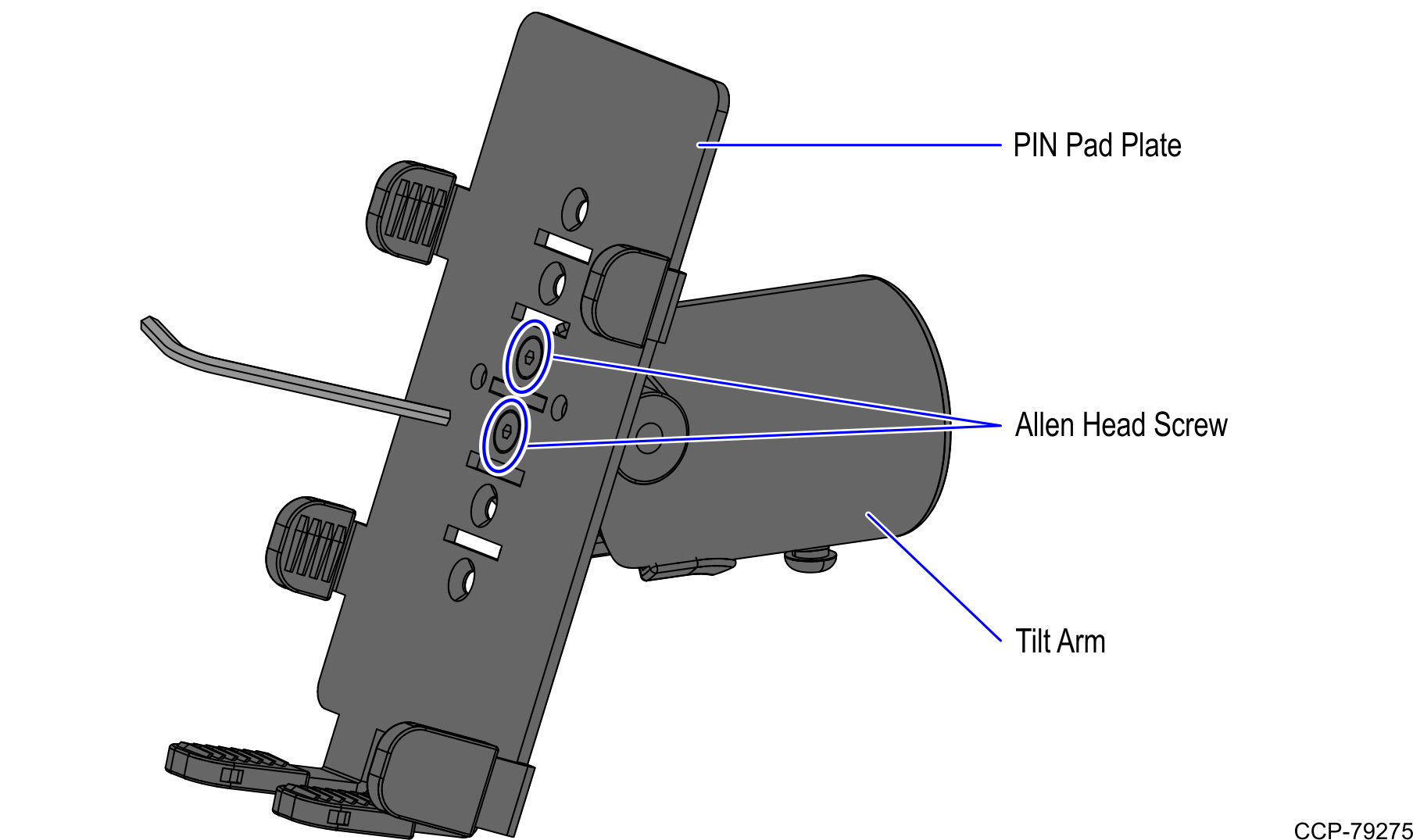

1. Using an Allen key, remove two (2) Allen head screws securing the PIN Pad Plate to the Tilt Arm.

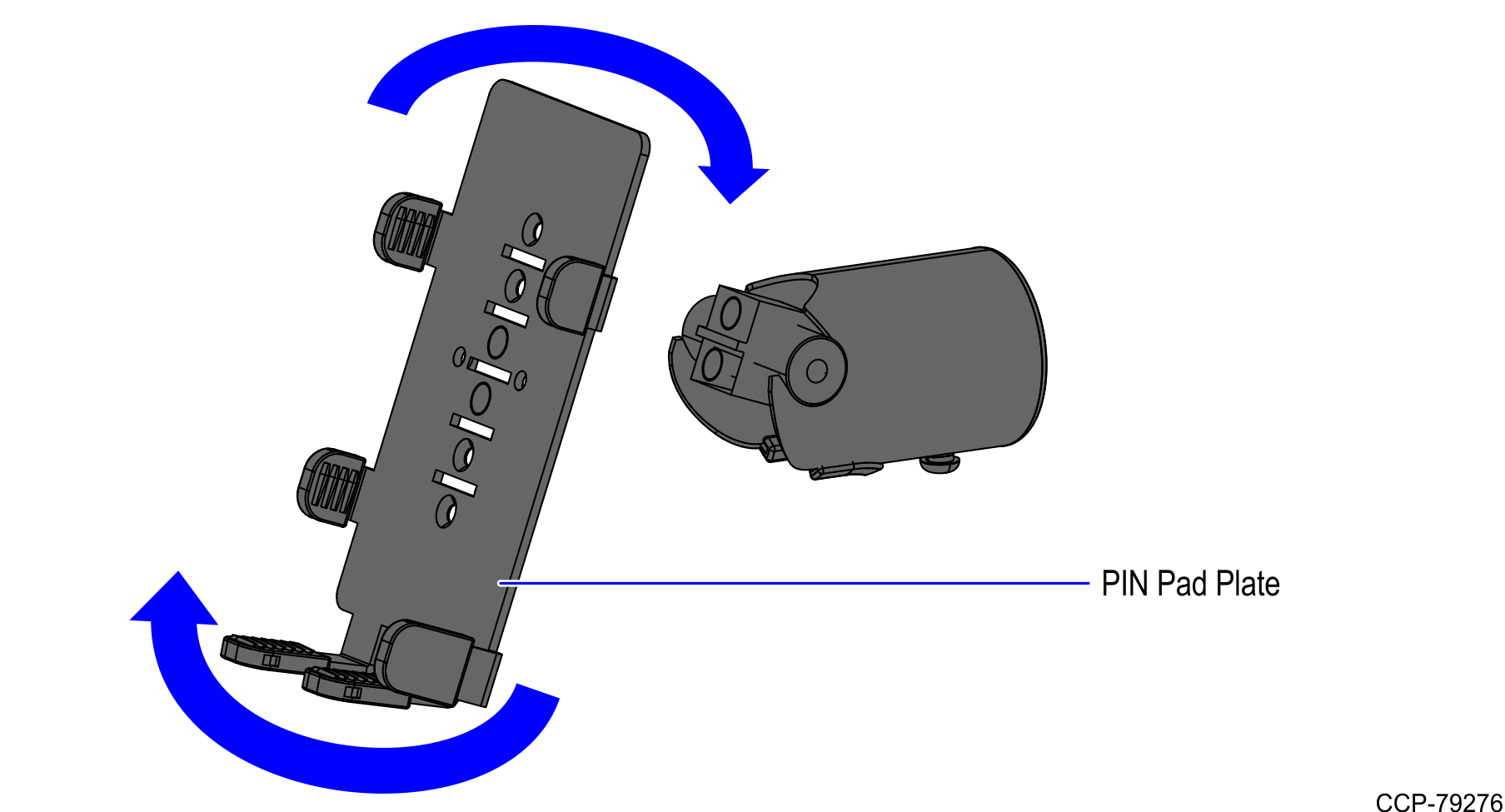

2. Remove the PIN Pad Plate and rotate it to 180°, as shown in the image below.

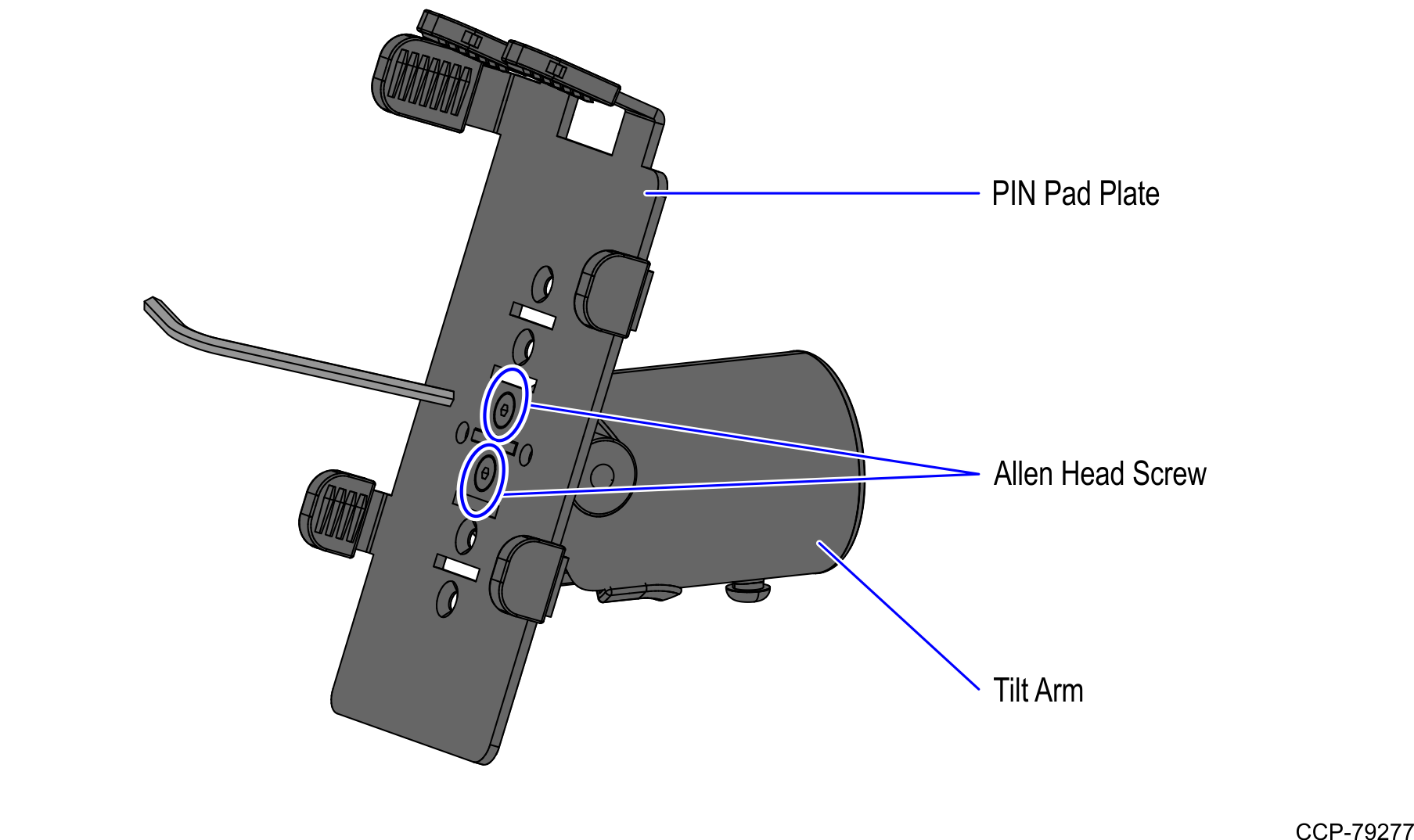

   Install the PIN Pad Plate on the Tilt Arm using two (2) Allen head screws.

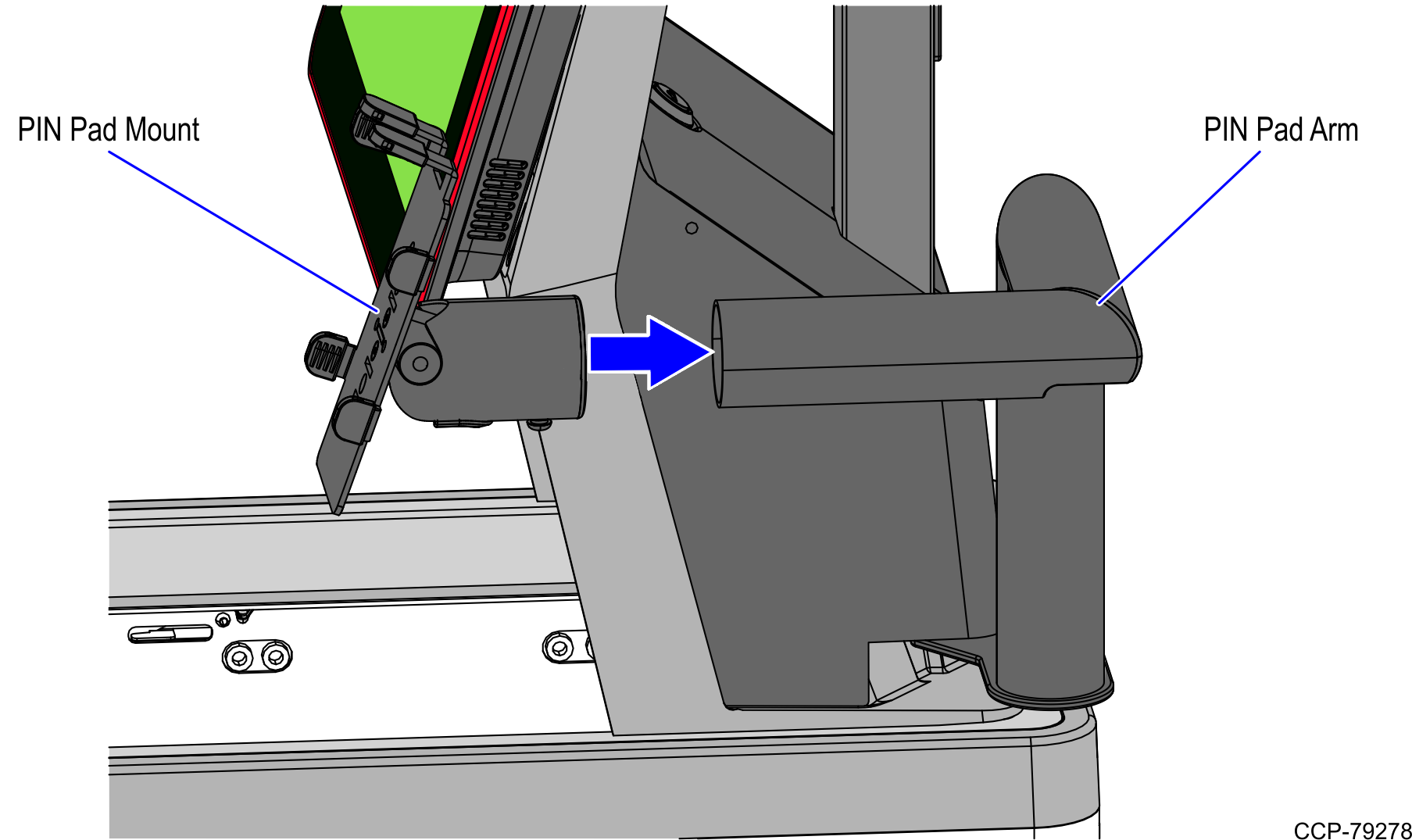

3. Attach the PIN Pad Mount to the PIN Pad Arm.

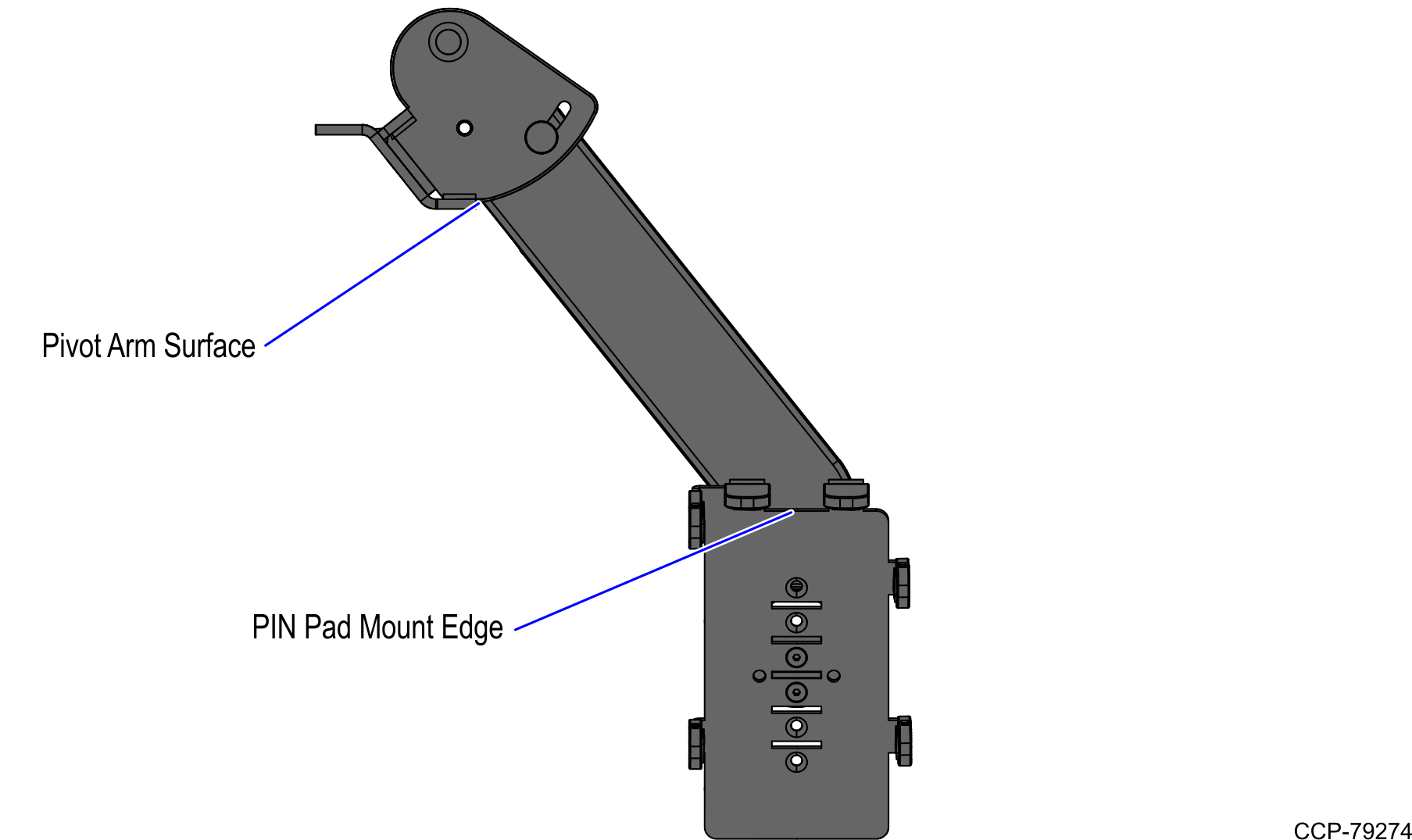

4. Position the PIN Pad Mount so that its edge is approximately parallel with the Pivot Arm Surface.



5. Fasten the PIN Pad Mount to the PIN Pad Arm using the Allen key.
