Replacing the Cashbox

1. Unlock and open the Exterior Door.
2. Unlock and open the Security Door.

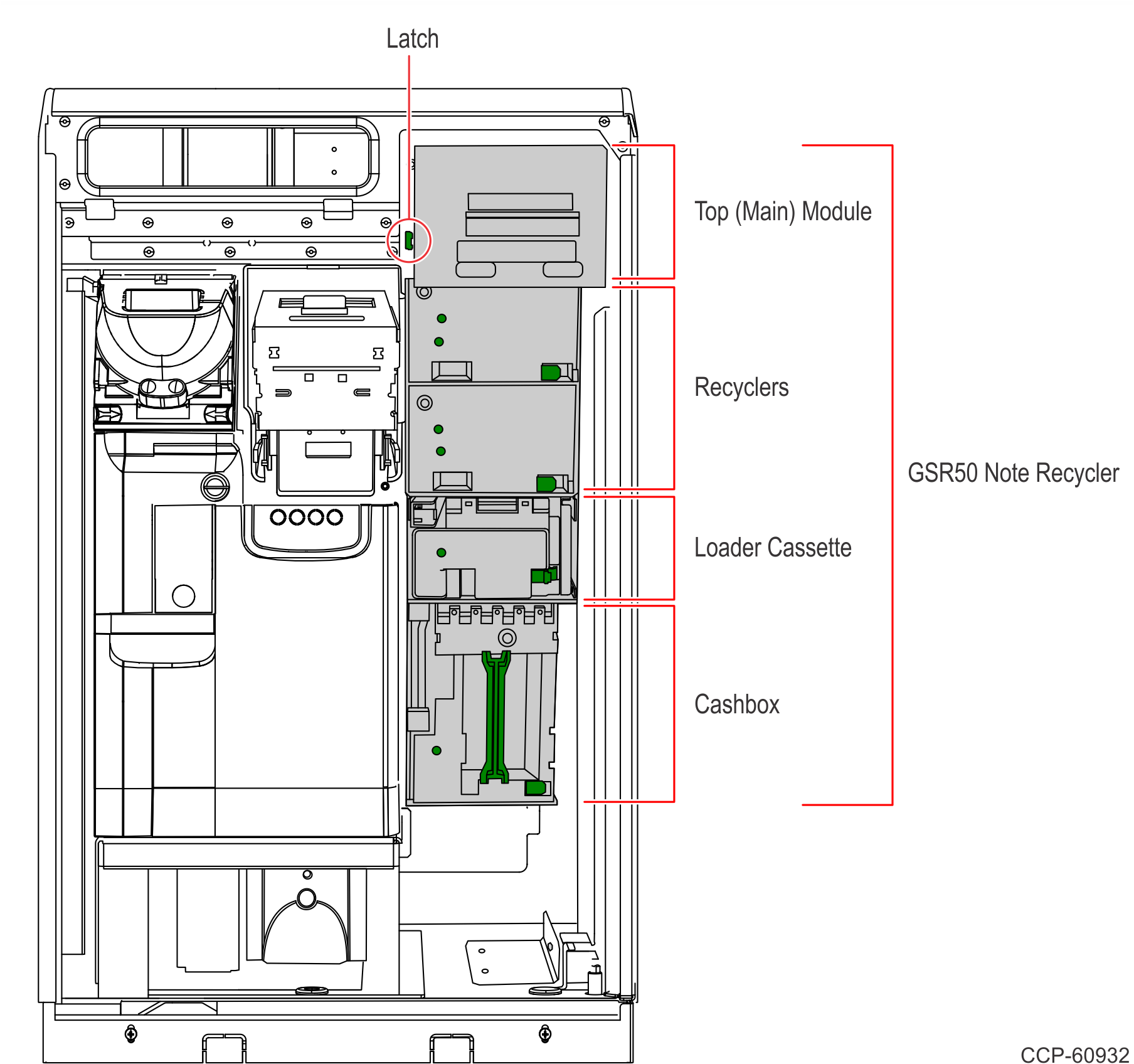

3. Pull the green latch toward the Top (Main) Module, and then rack out the GSR50 Note Recycler out of the cabinet.



4. Move the green latch of the Cashbox to the left and then, using the green handle, pull the existing Cashbox from the frame.



5. Replace with a new Cashbox. Insert and then push the new Cashbox into the corresponding frame until it snaps in place.
