7360-K127 Large Basket Adapter Plate
The Large Basket Adapter Plate is used to attach a Large Basket (Basket) Module on the Self-Checkout unit. This publication provides the following procedures for installing the Large Basket Adapter Plate on an NCR FastLane SelfServ™ Checkout (7360) R65 Full Function unit.
The NCR FastLane SelfServ™ Checkout with a Bagging Area (Bagwell) Module or Large Basket (Large Basket) Module can be configured for either Left-hand (LH) orientation or Right-hand (RH) orientation, which refers to the direction customers scan and bag items.
- Left-hand (LH) orientation—Customers scan from left to right.
- Right-hand (RH) orientation—Customers scan from right to left.
The orientation of the unit is determined by the position of the Lower Core (Cabinet) Module in relation to the Bagwell or Large Basket.
The Left-hand (LH) unit has the Cabinet positioned on the left side of the Bagwell or Large Basket.

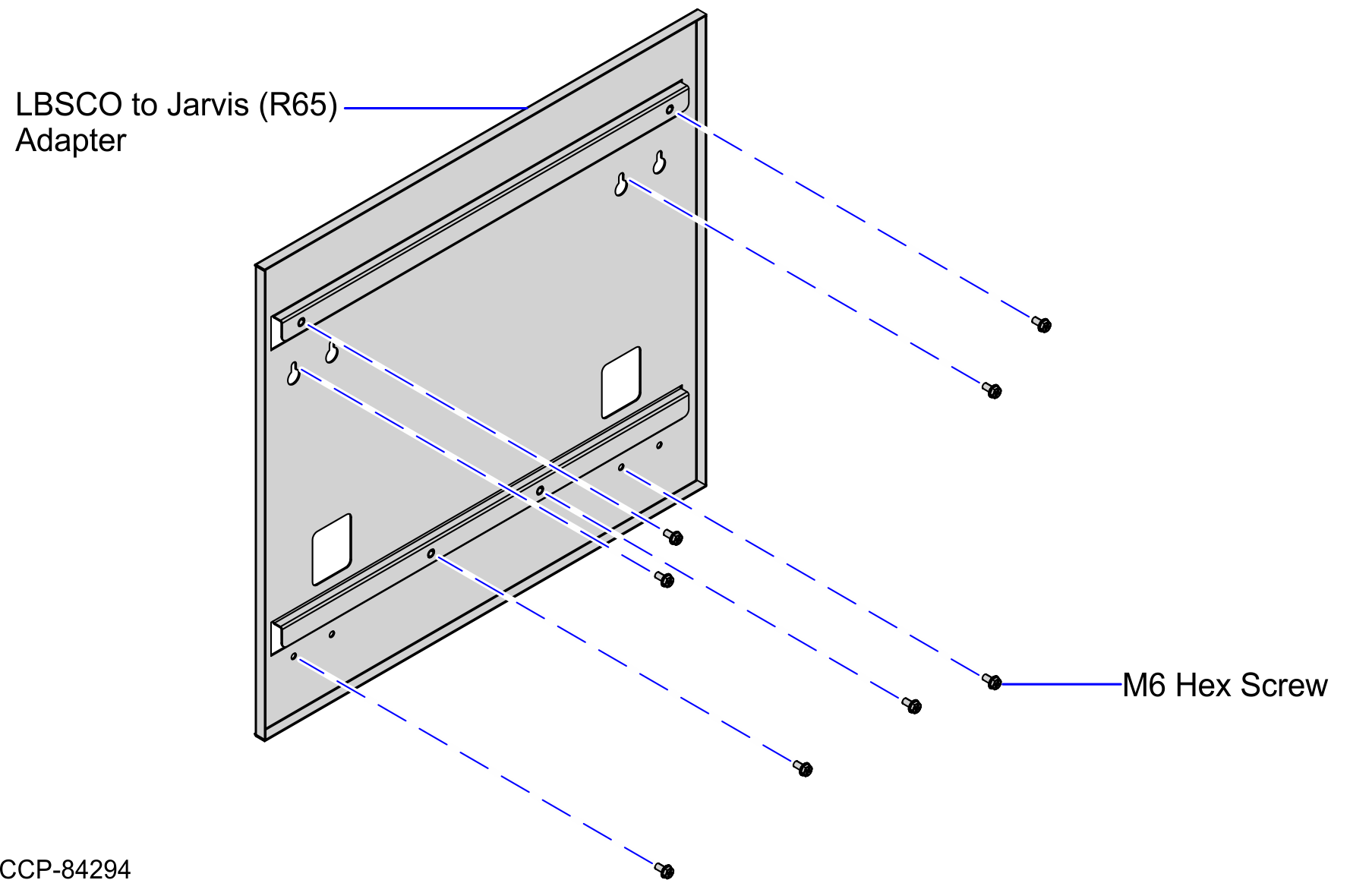

Kit Contents
| Part Number | Description | |
|---|---|---|
| 497-0536065 | 7360-K127 Input Belt Adapter Kit | |
| 006-8628739 | Screw Hex M6 x 12 MC Comb, 8 pcs | |
| 795-0301928 | Adapter, LBSCO to Jarvis (R65) (WM Medium Gray) | |
| * 497-0423108 | Kit Instructions Kit (Reference Sheet) | |
* Items marked with an asterisk are not called out on the image.
