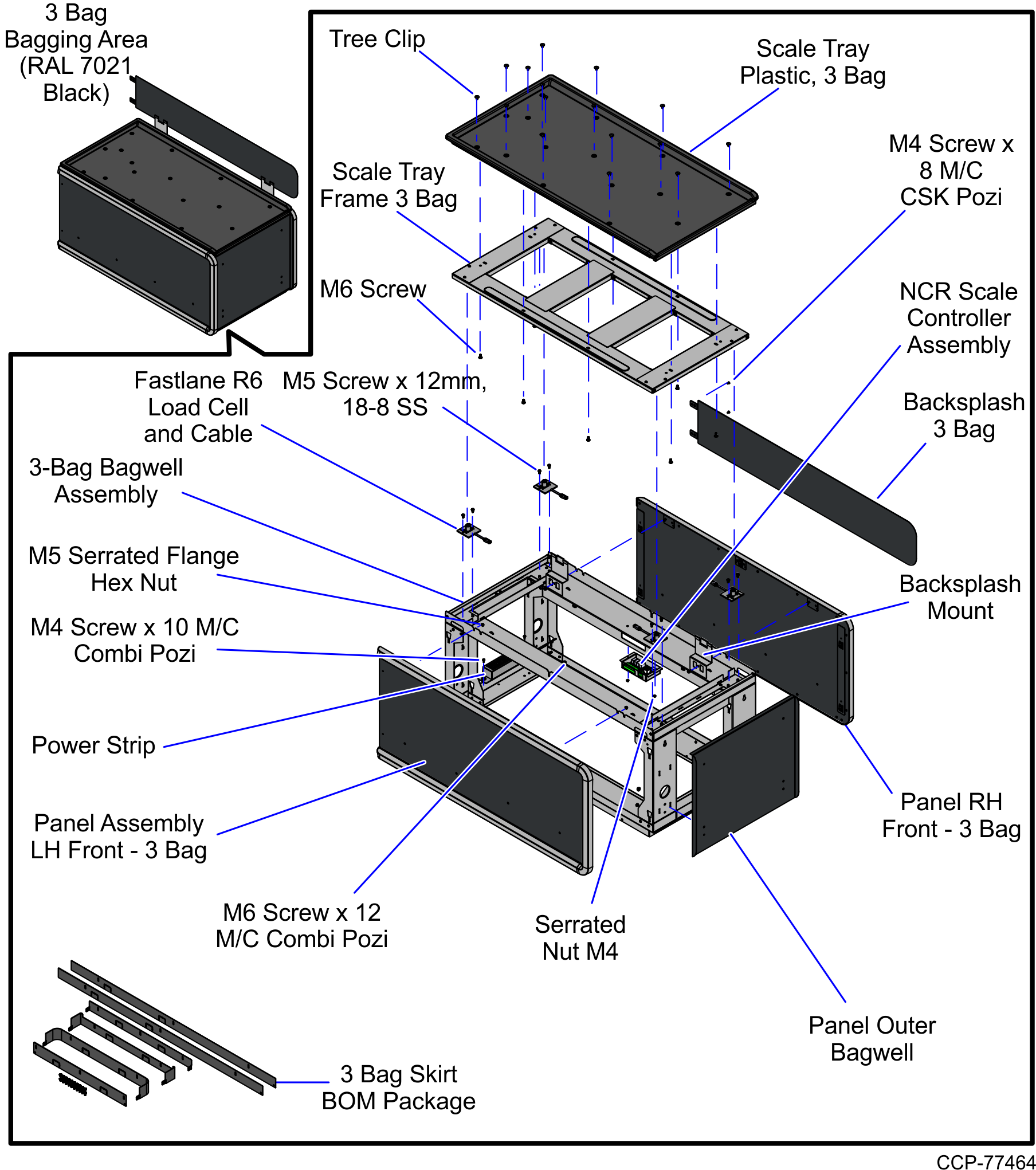

7360-K118 3-Bag Bagwell Upgrade (RAL 7021 Black)
| Part Number | Description | |
|---|---|---|
| 497-0527954 | 7360-K118 3-Bag Bagwell Upgrade Kit (RAL 7021 Black) | |
| 497-0522297 | Bagwell Assembly - 3-Bag | |
| 497-0468420 | Assembly- NCR Scale Controller | |
| 009-0006593 | Screws M4 x 10 (2 pcs) | |
| 497-0511500 | FastLane R6 Load Cell and Cable (4 pcs) | |
| 006-8624052 | Screw - 18-8 SS, M5 x 12 mm, Pan Head, Phillips, External-Tooth Washer (8 pcs) | |
| 009-0006599 | Screw Hex M6 x 12 MC COMB (4 pcs) | |
| 795-0264907 | Panel - Outer - Bagwell (RAL 7021 Black) | |
| 795-0263307 | Panel - LH Front - 3-Bag (RAL 7021 Black) | |
| 795-0263507 | Panel - RH Front - 3-Bag (RAL 7021 Black) | |
| 795-0217107 | Backsplash - Mount (RAL 7021 Black) (2 pcs) | |
| 006-8627026 | Nut - M5 Serrated Flange, Hex (8 pcs) | |
| 795-0217207 | Backsplash - 3-Bag (RAL 7021 Black) | |
| 007-7022121 | Screw MA Flat POZ M4 8L (2 pcs) | |
| 497-0527257 | Scale Tray Frame - 3-Bag | |
| 497-0506268 | Scale Tray Plastic - 3-Bag | |
| 497-0421485 | Power Strip, IEC 4-POS, Plastic Case | |
| 497-0532328 | Skirt - 3-Bag BOM Package | |
| 006-8624541 | Screw M6 Size, 12 mm Length, 1 mm Pitch Pan Head Phillips Thread Locking Patch (8 pcs) | |
| 497-0508973 | Tree Clip for 0.197 in Hole Diameter 0.50 Lng 0.63 Head OD (16 pcs) | |
| * 497-0445077 | Cable: (Black) 4M USB + Power (12 V) to 2 x 4 Latch-N-Lok | |
| * 795-0281607 | Hole Cover Label - (RAL 7021 Black) | |
| * 497-0426042 | Bag - 2 and 3.5 Bagger, LHC and RHC, Input Belt | |
| * 007-9714414 | Tie Strap Plain 5.60 LG (4 pcs) | |
| 009-0007087 | Serrated Nut - Self Locking (M4, 4.2) (2 pcs) | |
| 006-8612049 | Washer - #8, External Tooth, Zinc Plated Steel | |
| * 497-0423108 | Instructions-Kit (Reference Sheet) | |
* Items marked with an asterisk are not called out on the image.
