Installing the IP Camera

To install the IP Camera to the Tri-Light/Lane Light Assembly, follow these steps:

1. Remove the existing Tri-Light/Lane Light Assembly. For more information, refer to Removing the Tri-Light/Lane Light (R6).
2. Connect the LAN Cable to the IP Camera.

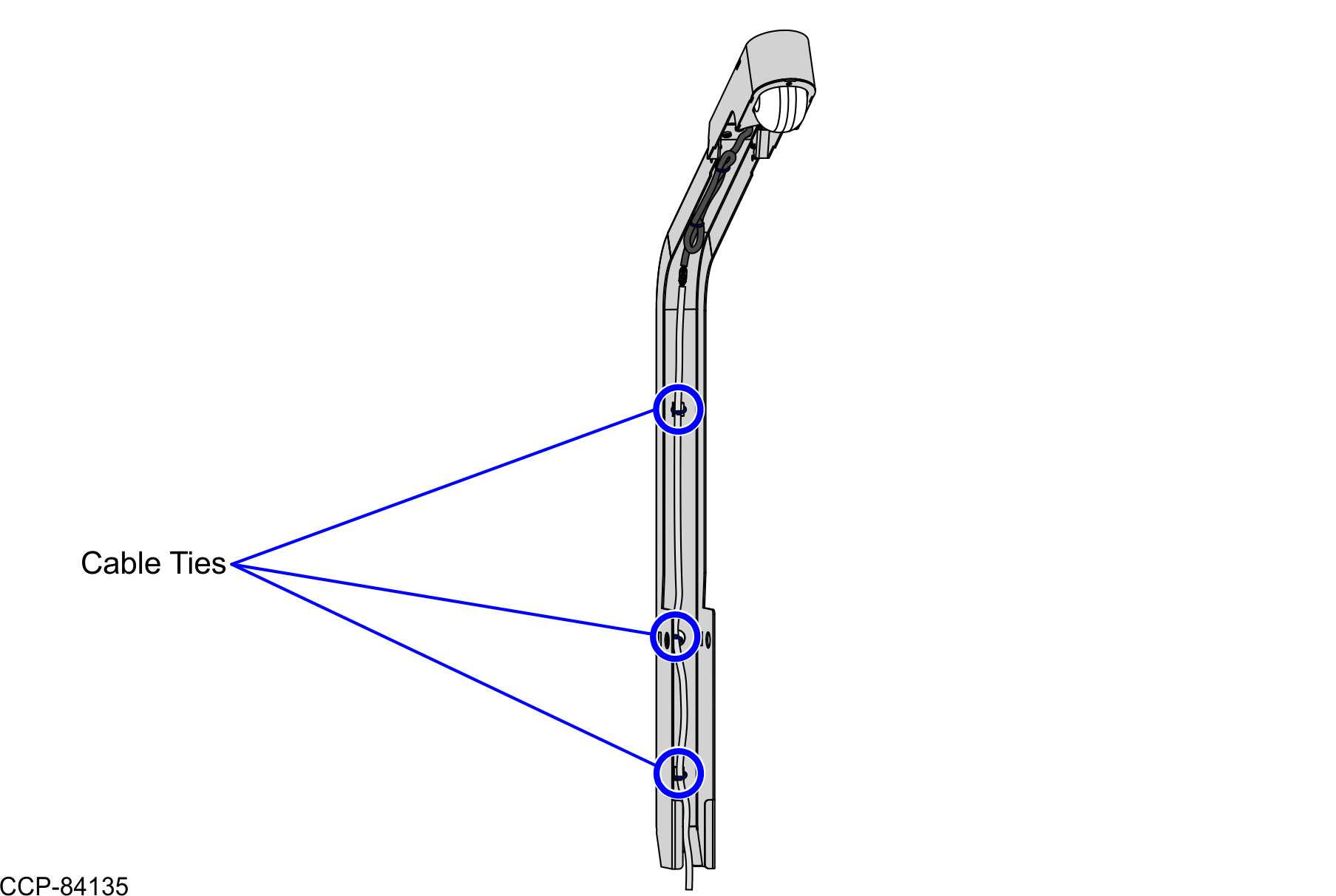

3. Secure the LAN Cable to the Tri-Light Cable Channel using three (3) cable ties, as shown in the image below.

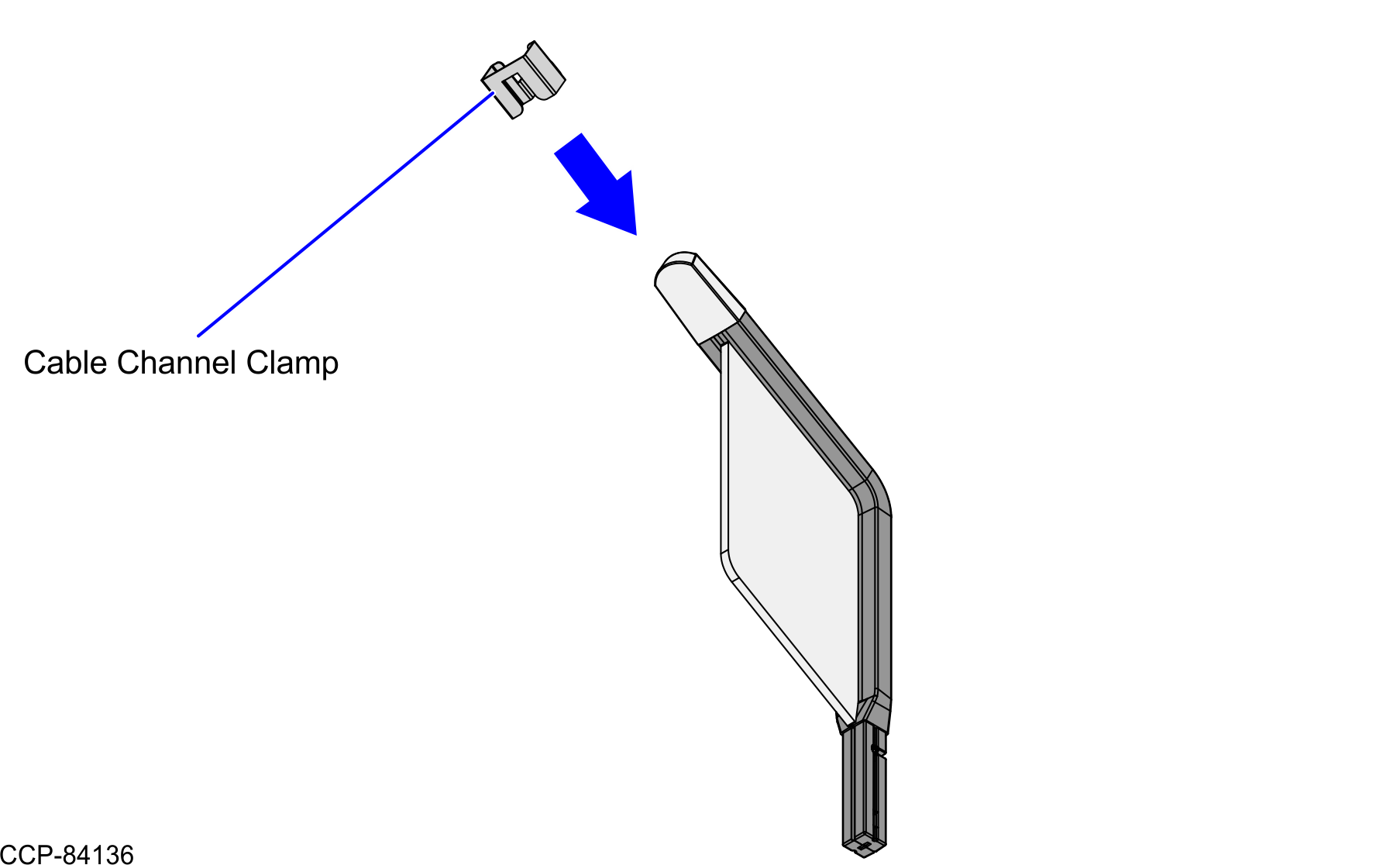

4. Slide the Tri-Light Cable Channel Clamp on the Tri-Light/Lane Light Assembly.

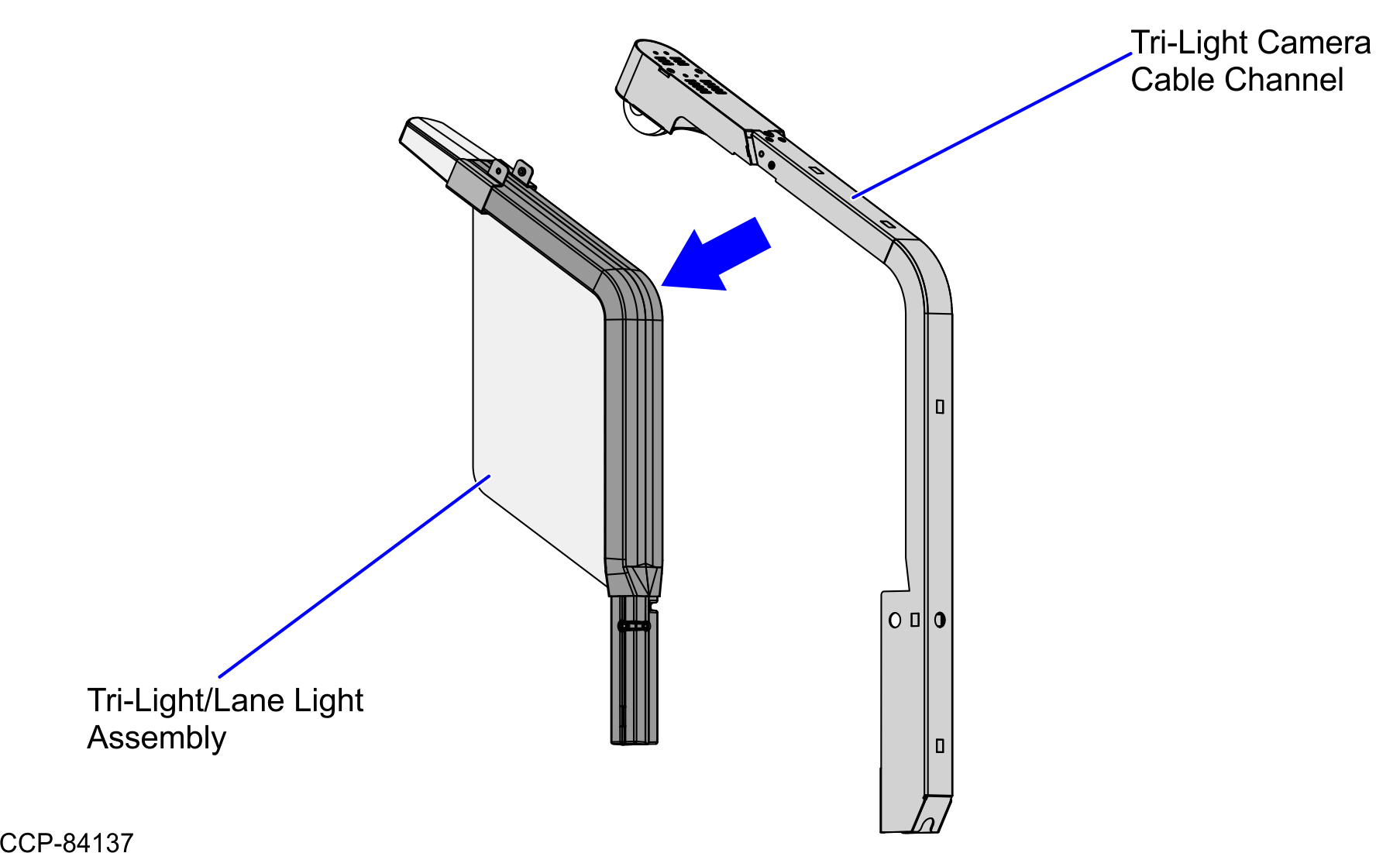

5. Slide the Tri-Light Cable Channel Assembly on the Tri-Light/Lane Light Assembly with Cable Channel Clamp.

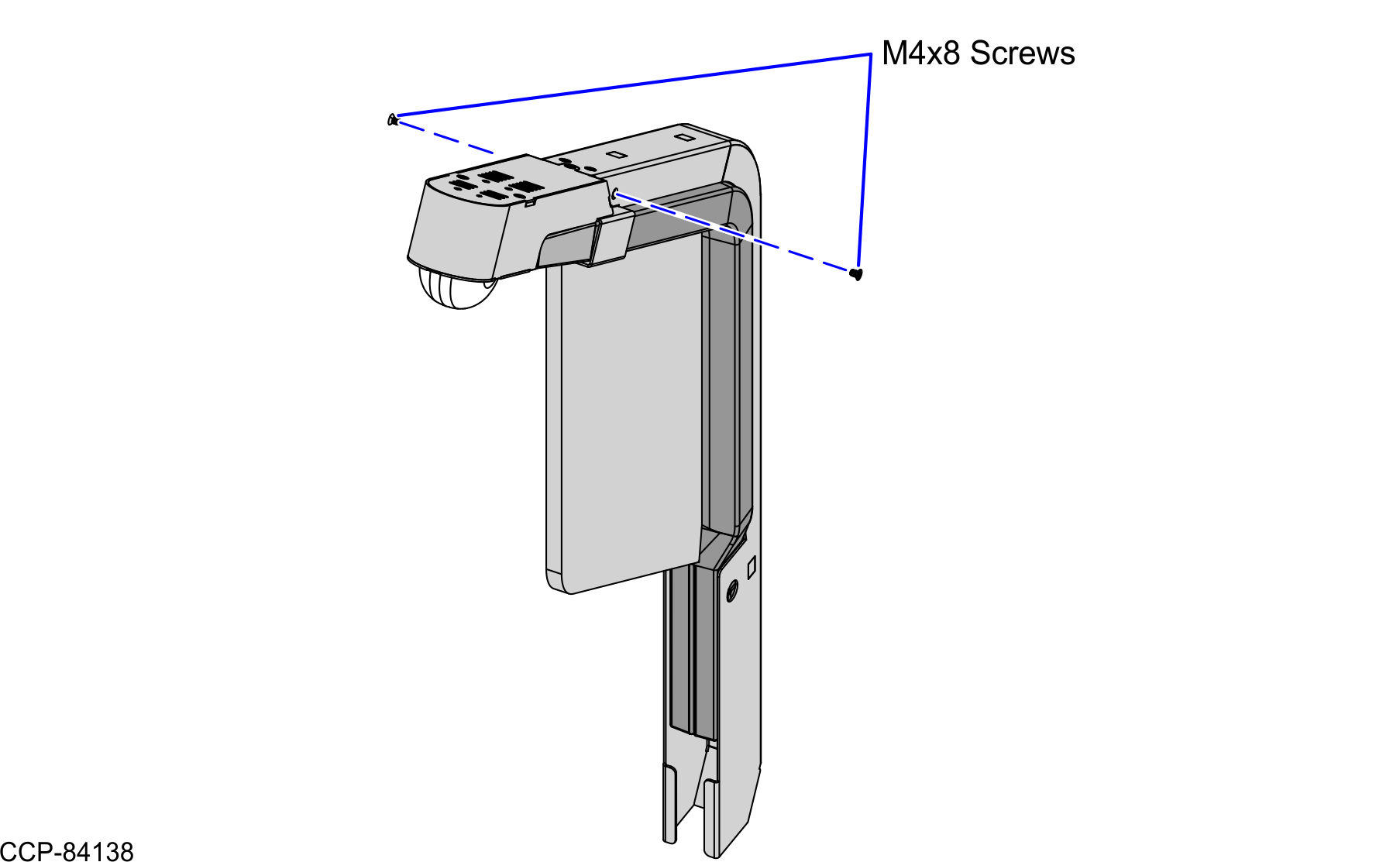

6. Secure the Tri-Light Cable Channel to the Tri-Light/Lane Light Assembly using two (2) screws.
