7360-K085 7360 (R6) Tri-Light/Lane Light Pole (1.5 m) with Cable

The 7360 (R6) Tri-Light/Lane Light Pole is a 1.5 meter long pole that allows the Tri-Light camera to capture a wide overhead view of the whole SelfServ Checkout unit with Bagwell configuration.

This publication provides procedures for installing a 1.5 meter long Tri-Light/Lane Light Pole to the NCR FastLane SelfServ™ Checkout (7360) unit.

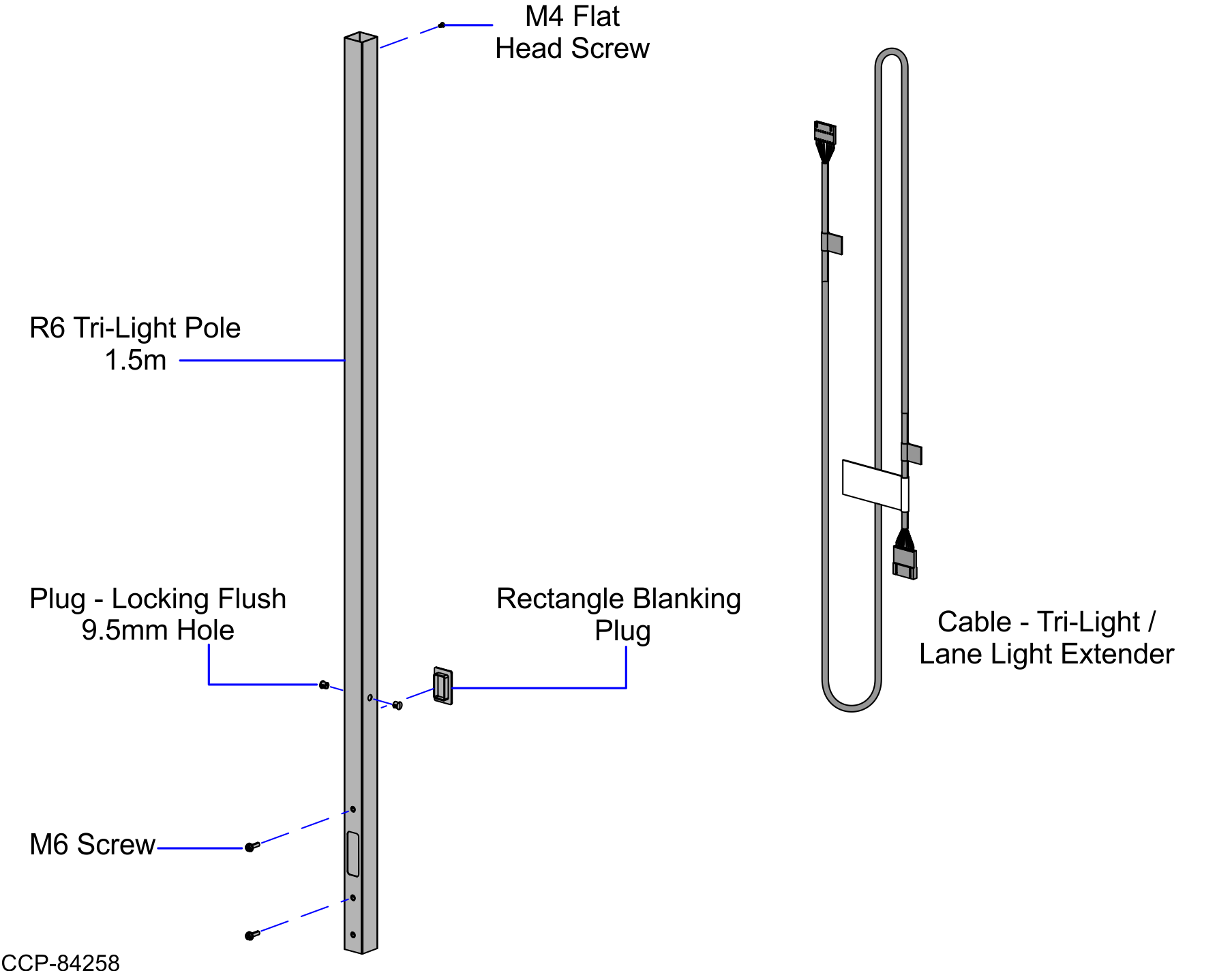

Kit Contents

Part Number	Description
497-0535804	7360-K085 R6C Trilight Light Pole, 1.5 m Length, with Cable
006-8623599	Plug – Locking, Flush, 9.5 mm Hole, Black (2 pcs)
006-8624305	Rectangle Blanking Plug (42 x 23.8 mm)
006-8624498	Screw - M4 x 0.7 x 8 mm, Flat Head, Stainless
009-0006598	Screws M6 x 20 (2 pcs)
497-0527256	Cable - Trilight and Lane Light Extender, Long Pole, 140 in
497-0535781	Trilight Pole - R6, 1.5 meter length
* 497-0423108	Instructions Kit (Reference Sheet)

* Items marked with an asterisk are not called out on the image.
