7357-K910 Coupon Chute with Proximity Sensor Assembly
This publication provides instructions for installing a Coupon Chute with Proximity Sensor Assembly to an NCR Voyix FastLane SelfServ™ Checkout (7357) R6LN Plus unit.
Kit Contents
| Part Number | Description |
|---|---|
| 497-0527126 | 7357-K910 Coupon Chute with Proximity Sensor Assembly |
| 795-0285013 | Chute - R6Ln+ Main Door With Proximity Sensor (Coles Silver) |
| 497-0456066 | Lens – Plastic – Motionsensor - Lower Door |
| 006-8616341 | Optoelectronic Device, 3 Pin |
| 006-8611199 | Screw - 4-20X0.250"' Phillips Pan Head, Plastite, Blue Zinc (2 Pcs) |
| 006-8611077 | Screw-M3X6 Ph Phillips (2 Pcs) |
| 497-0513793 | Cable - Proximity Sensor |
| * 497-0477142 | Label Set Spark |
| * 497-0423108 | Instructions - Kit (Reference Sheet) |

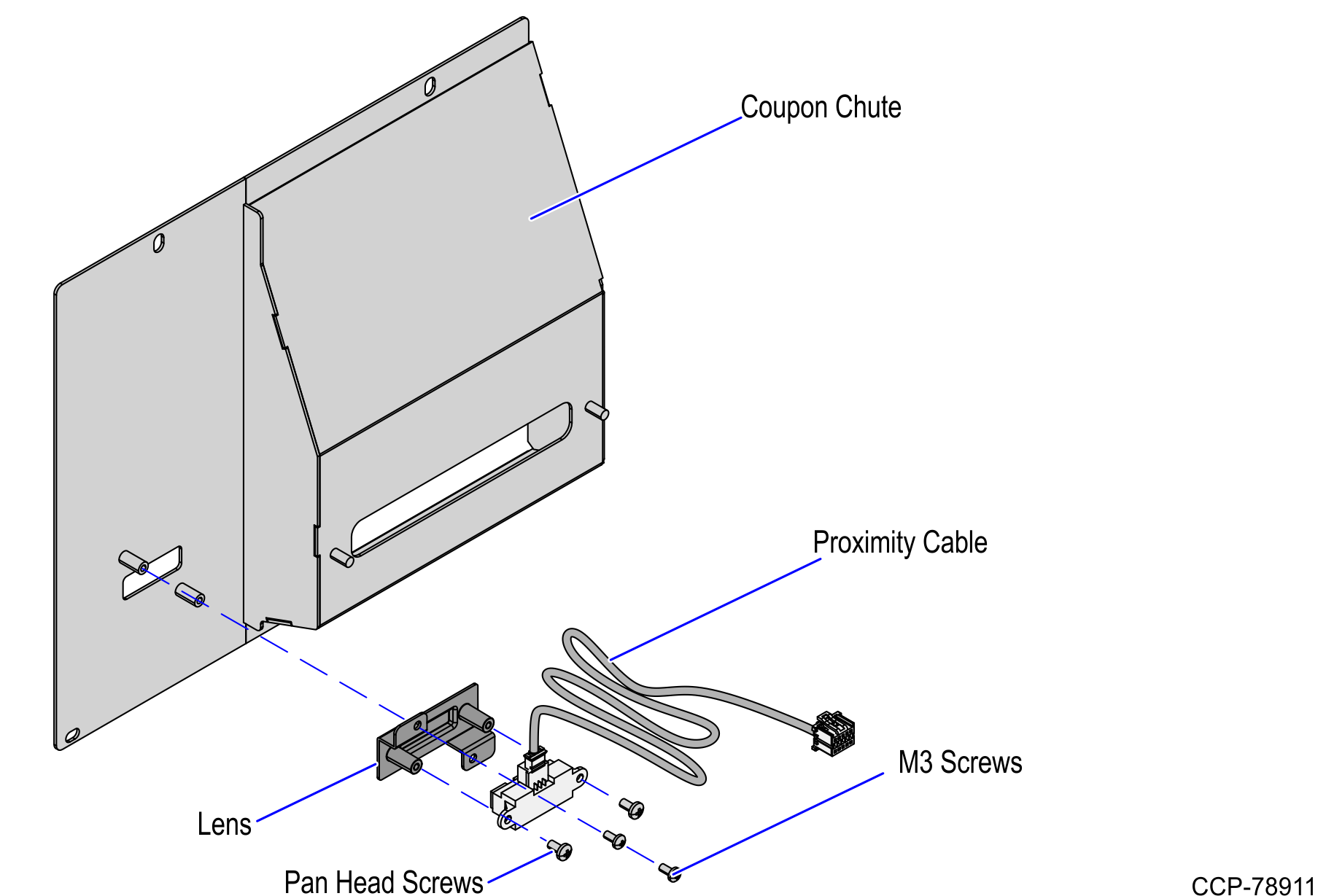

* Items marked with an asterisk are not called out on the image.
